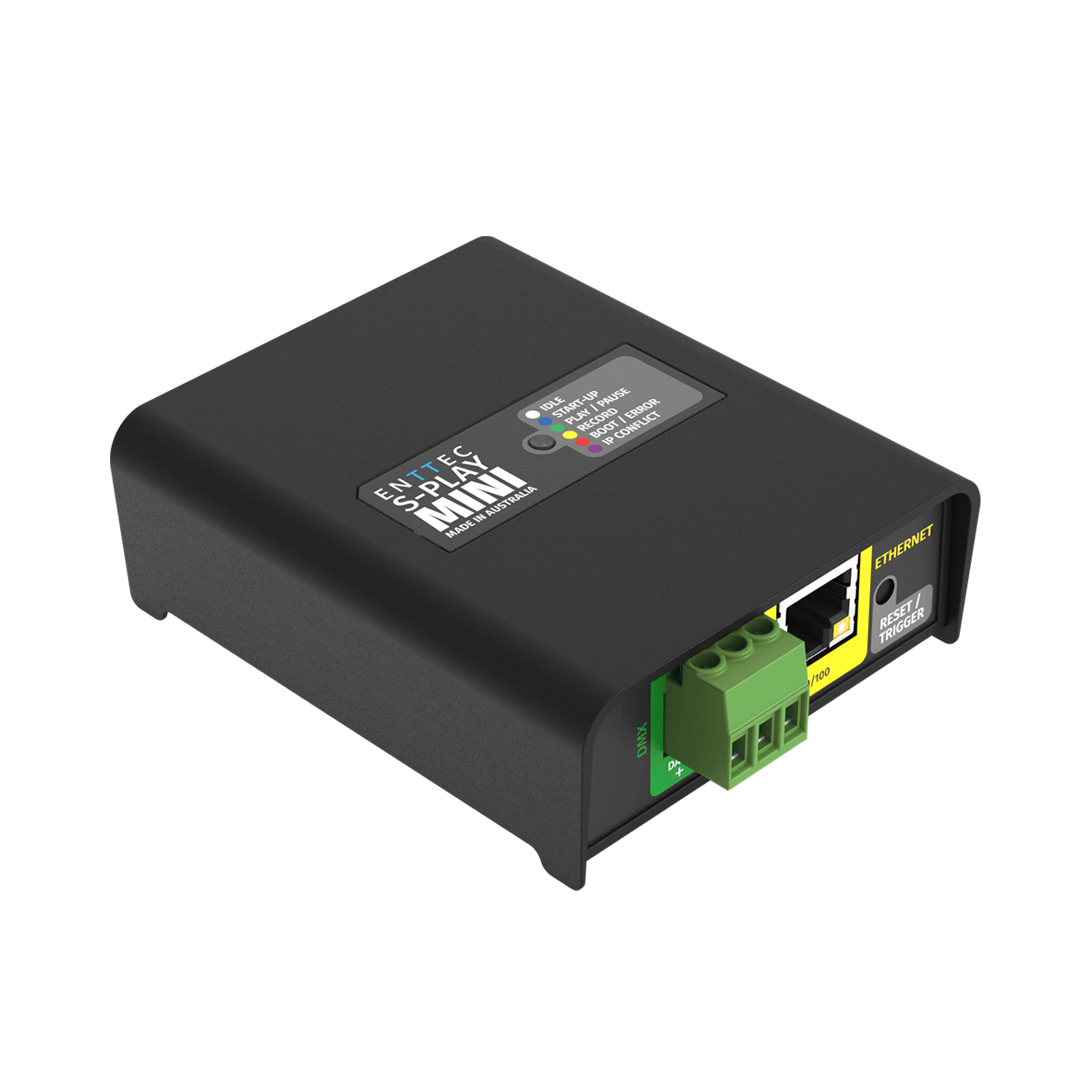

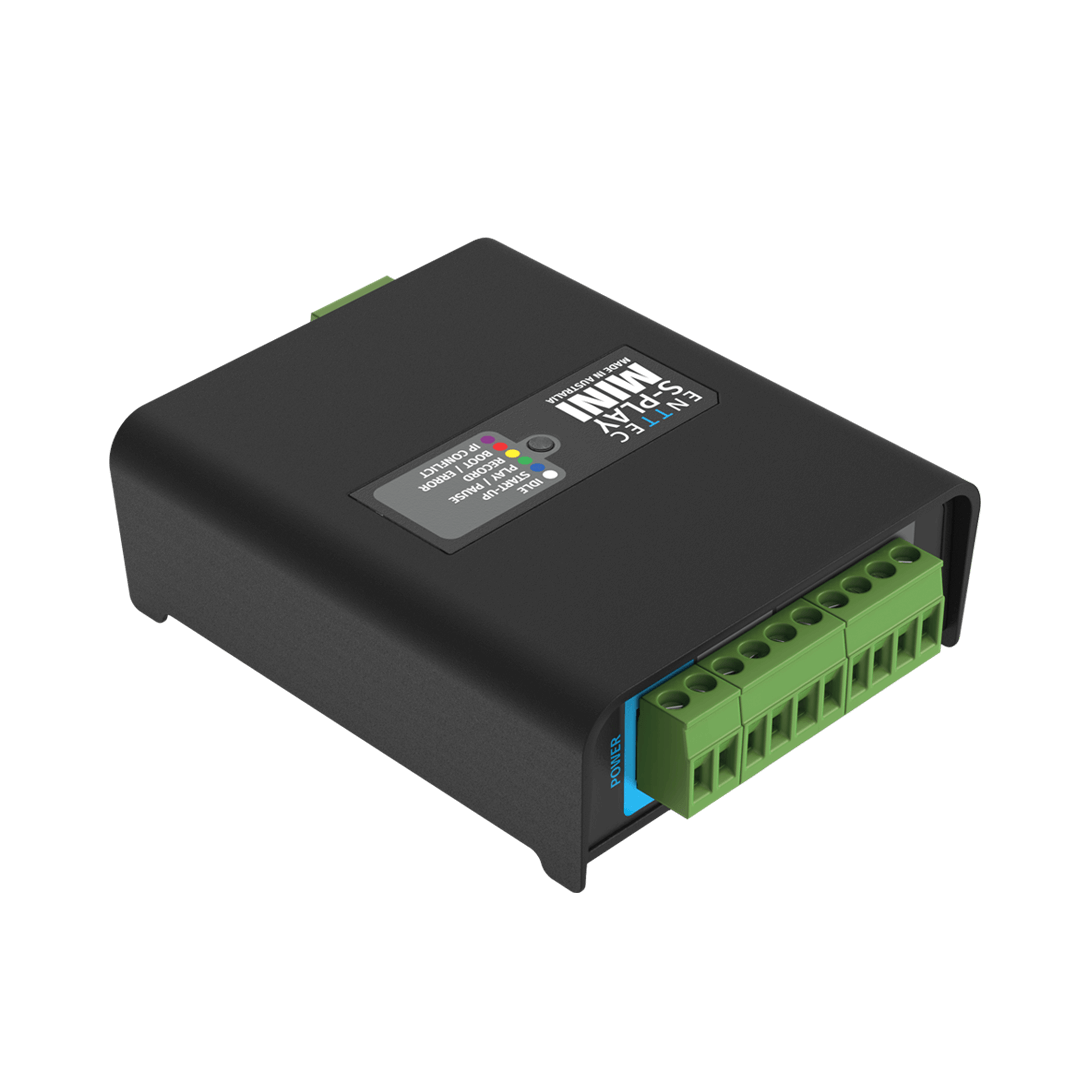

S-PLAY MINI
2-Universe, DIN-rail-mountable solution for the recording, triggering, and activation of not only light shows but video, non-lighting events, and much more.
可安装在DIN导轨上的 DMX 记录器 + 智能灯光秀控制器。
S-PLAY MINI是一款紧凑型演出记录器和播放控制器,它通过集成外部硬件简化了专业灯光控制。它可从2个Art-Net/sACN域或1个DMX域中记录多达16个静态/动态/特效提示,也可使用板载像素特效生成器来快速生成渐变特效。它能够集成诸如按钮、开关或传感器等外部设备,以便通过触点闭合、Art-Net、sACN、DMX、UDP或OSC来触发第三方设备。通过网络界面,只需通过拖放提示、事件和触发条件,就能轻松设计多达8个播放列表,还能对淡入淡出、播放次数和亮度进行控制。播放列表可在开机时循环播放,也可由外部触发,并且具备重叠播放选项。
了解 S-Play MINI
你是否曾想知道作为灯光设置的一部分,一台DMX记录器/演出控制器能有多有用呢?那就看看这个视频吧!
和来自ENTTEC恩特可科技Jasmine一起,看她为你详细介绍S-PLAY MINI的核心功能及应用,以及它的“大哥” S-PLAY SP1-1.
我们还将看到 S-PLAY 的直观网络界面, 并了解使用ENTTEC恩特可科技的像素映射软件ENTTEC LED Mapper (ELM) 的演示版来映射一些 LED 像素点光源是多么容易,然后在 S-PPLAY MINI 上记录并存储你的演出内容,以便随时进行播放。
将你的S – Play与这些流行的自动化系统集成。
Specifications
Input voltage | 12V DC to 24V DC |

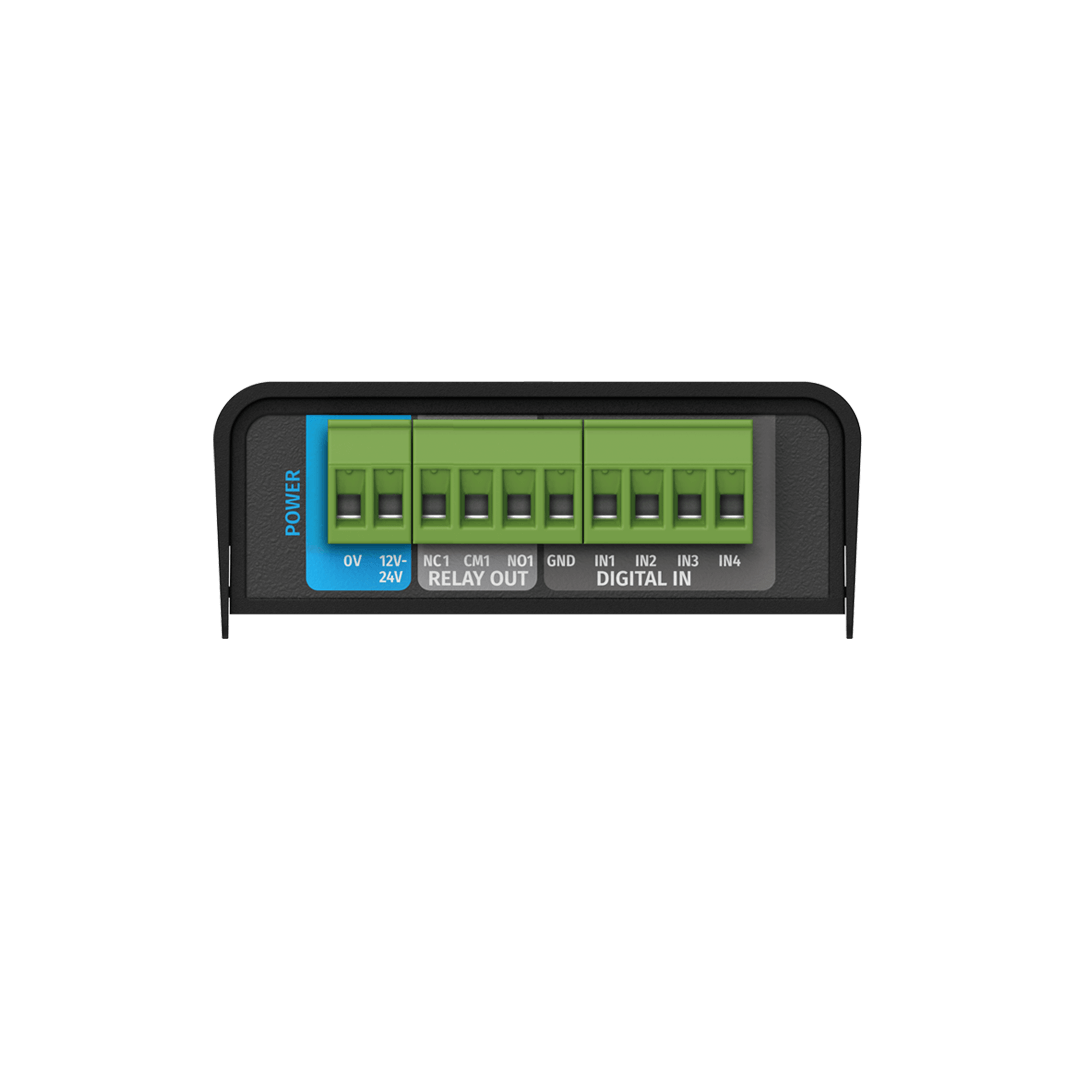

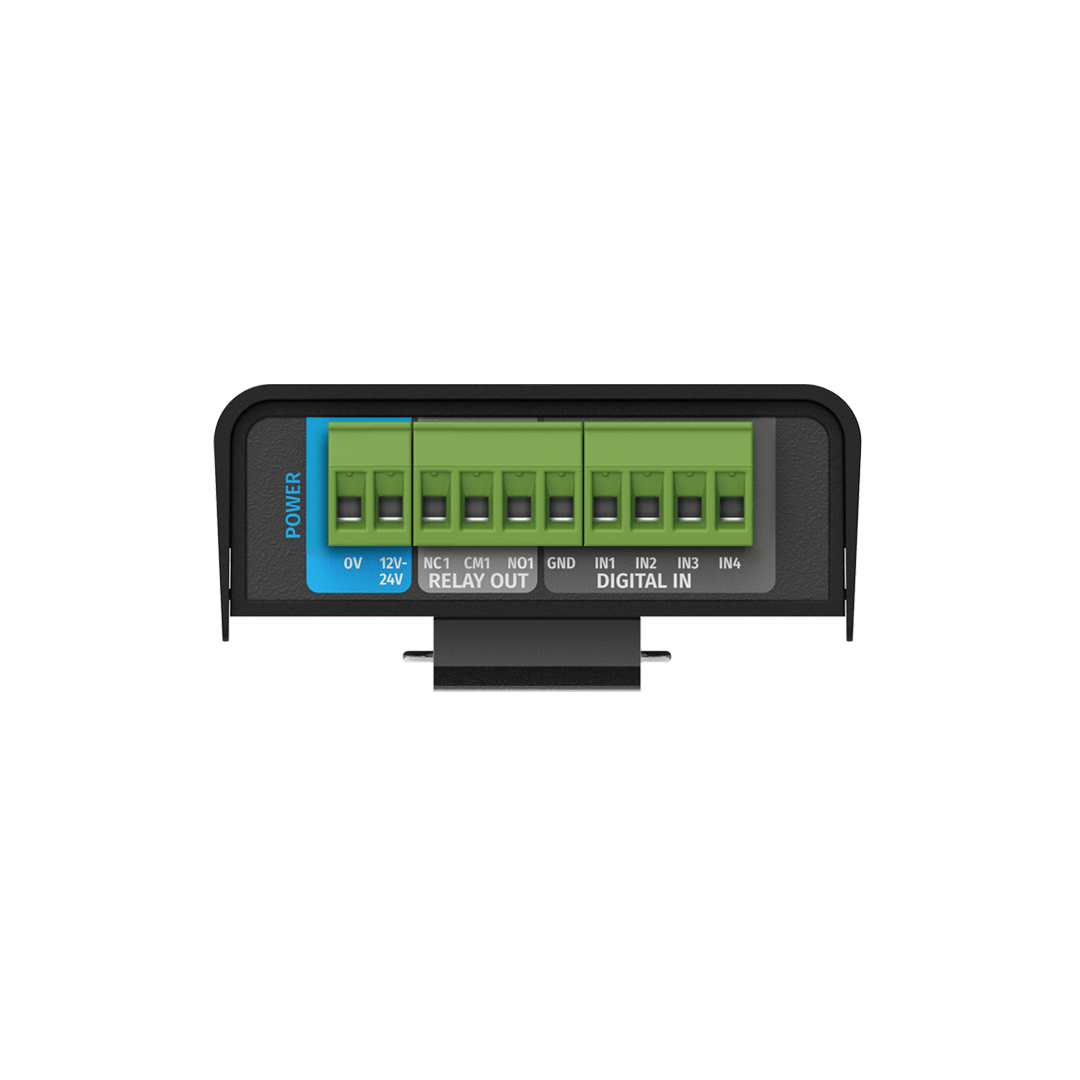

Power input | 2-pin Phoenix screw terminal |
Max power draw | 3W |

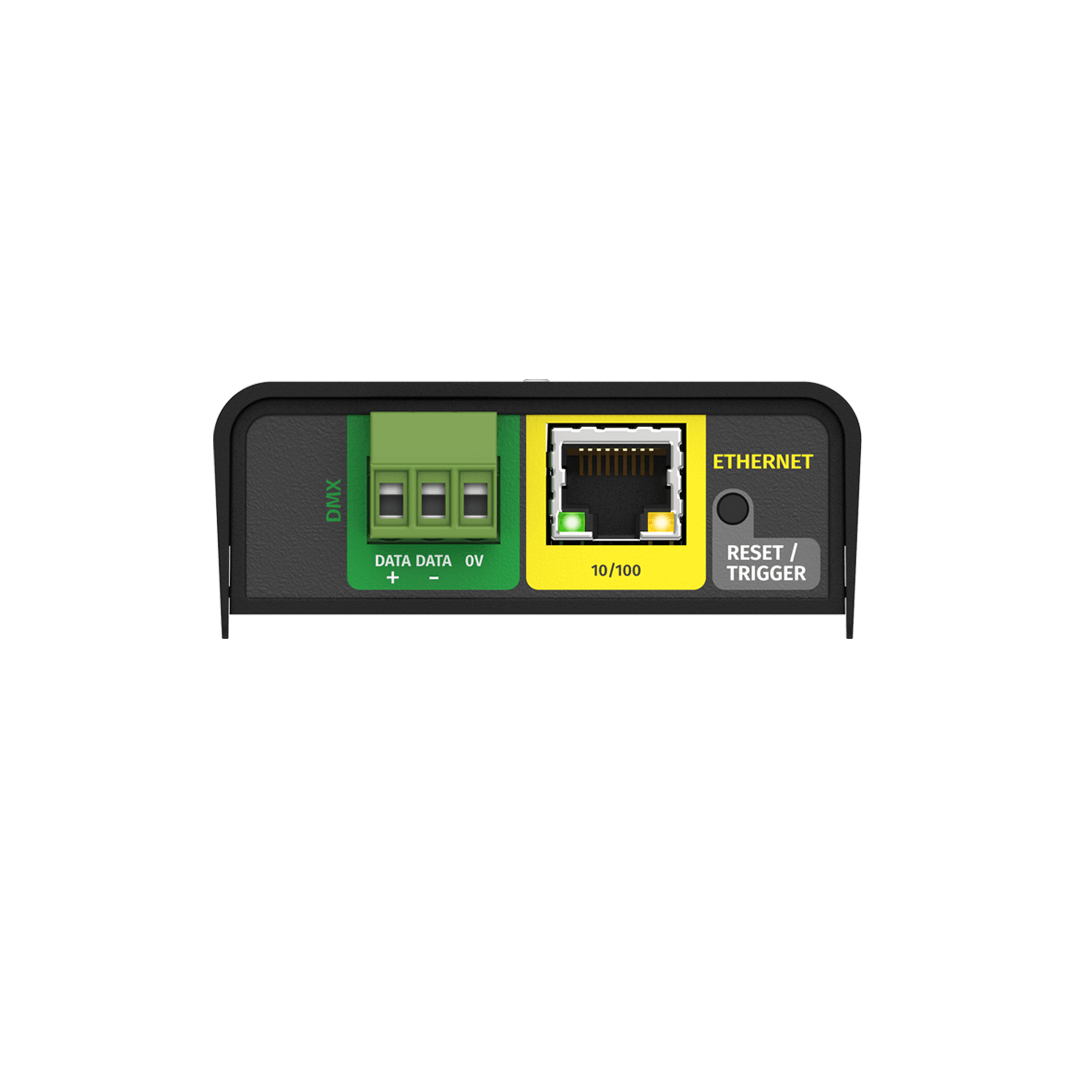

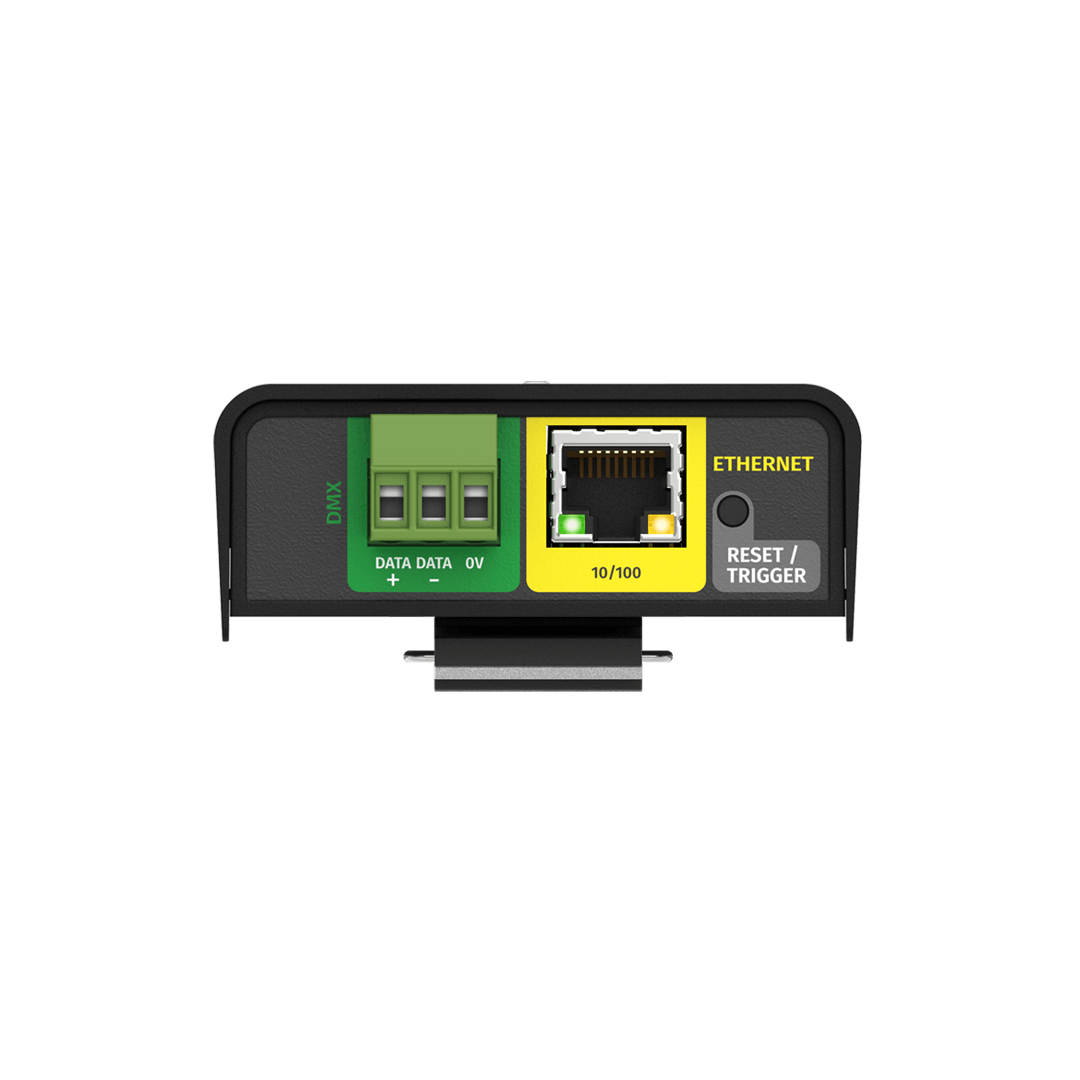

Ethernet port | RJ45 |
DMX port | Bi-directional 1 x 3-pin Phoenix screw terminal |
Digital input | 4 digital inputs + 1 GND (5-pin Phoenix screw terminal) |
Relay | 1 x relay (3-pin screw terminal) |
Internal show storage capacity | 1GB |
LED indicators | Forward-facing LED indicator + network link/activity (integrated into RJ45 port) |
Factory reset | Web interface / reset button |

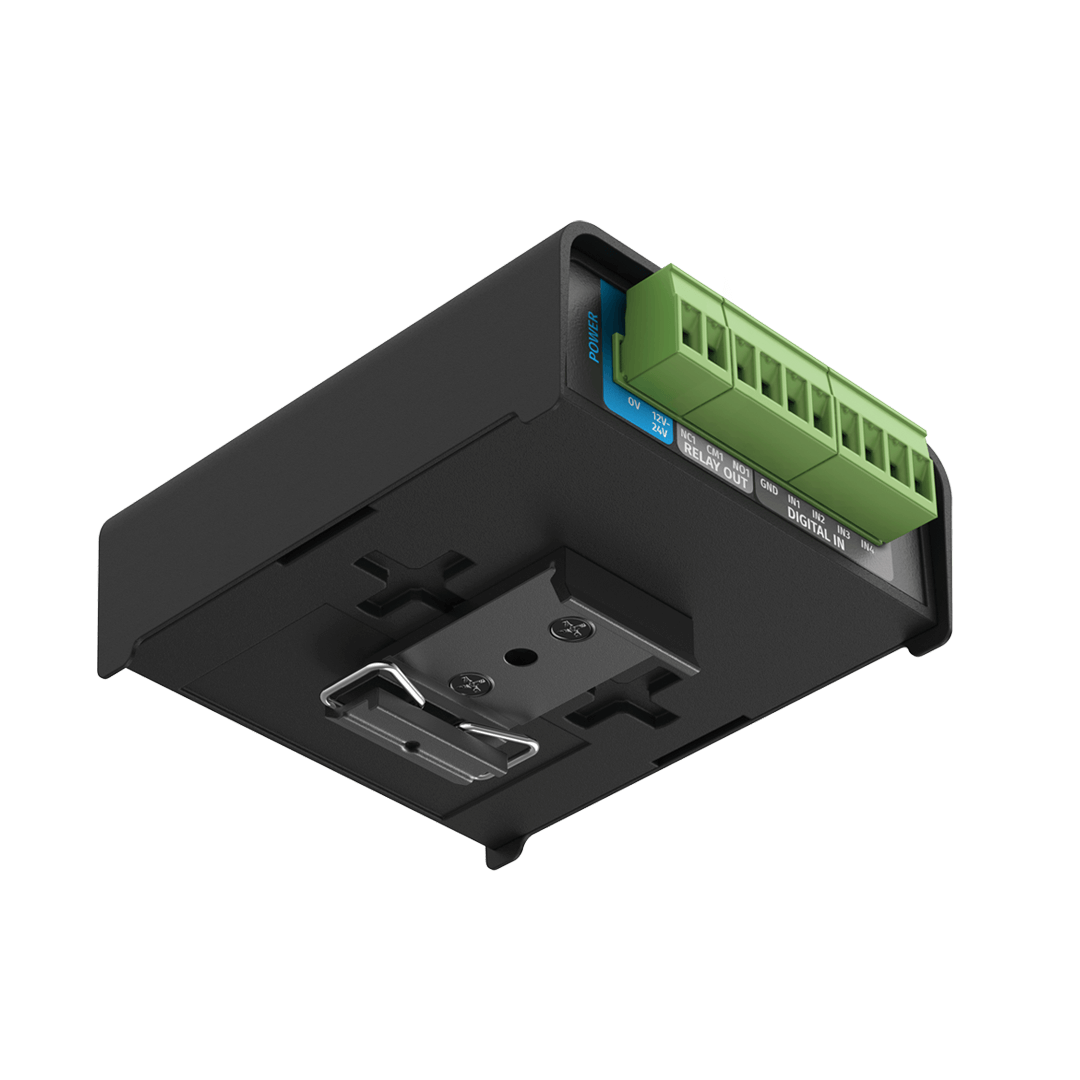

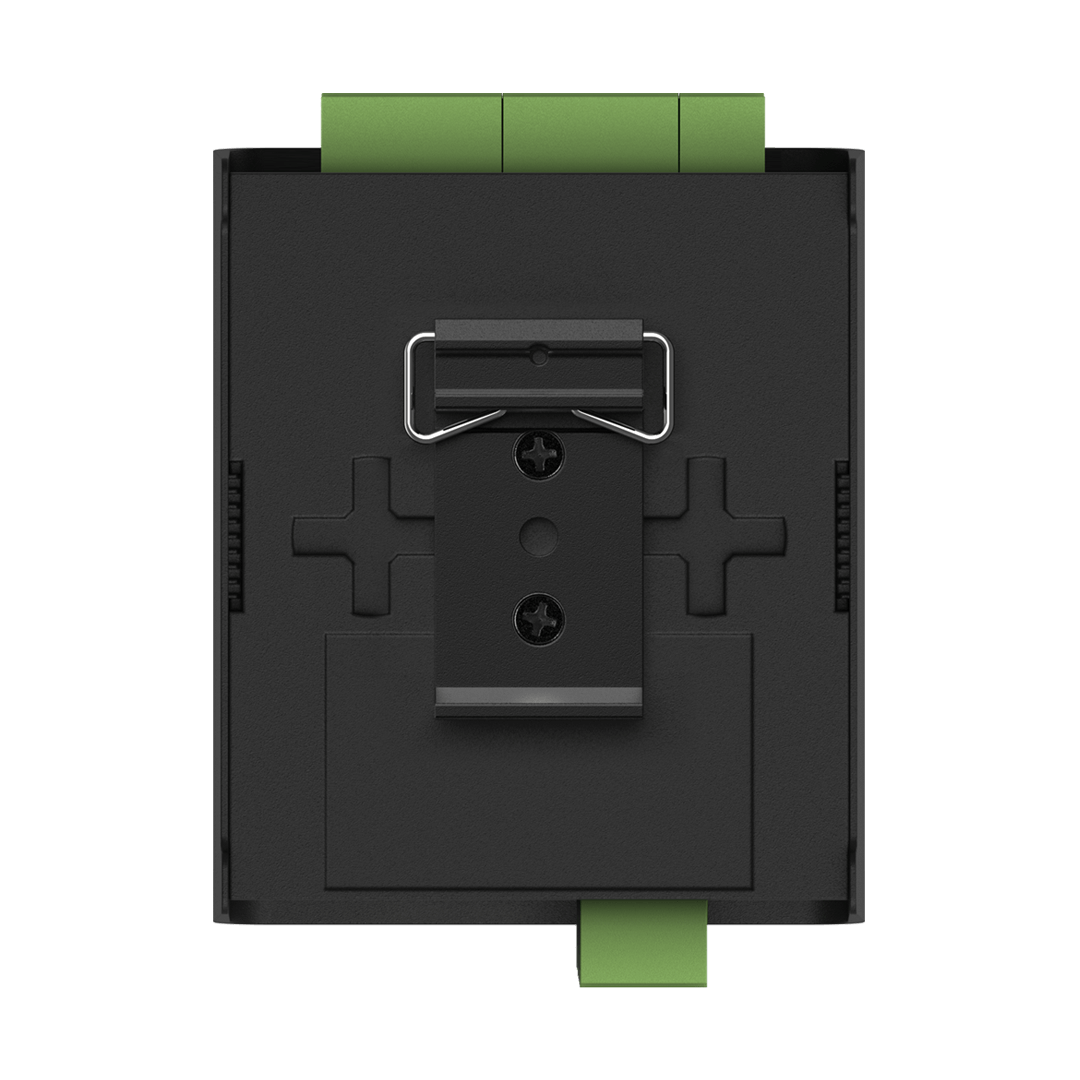

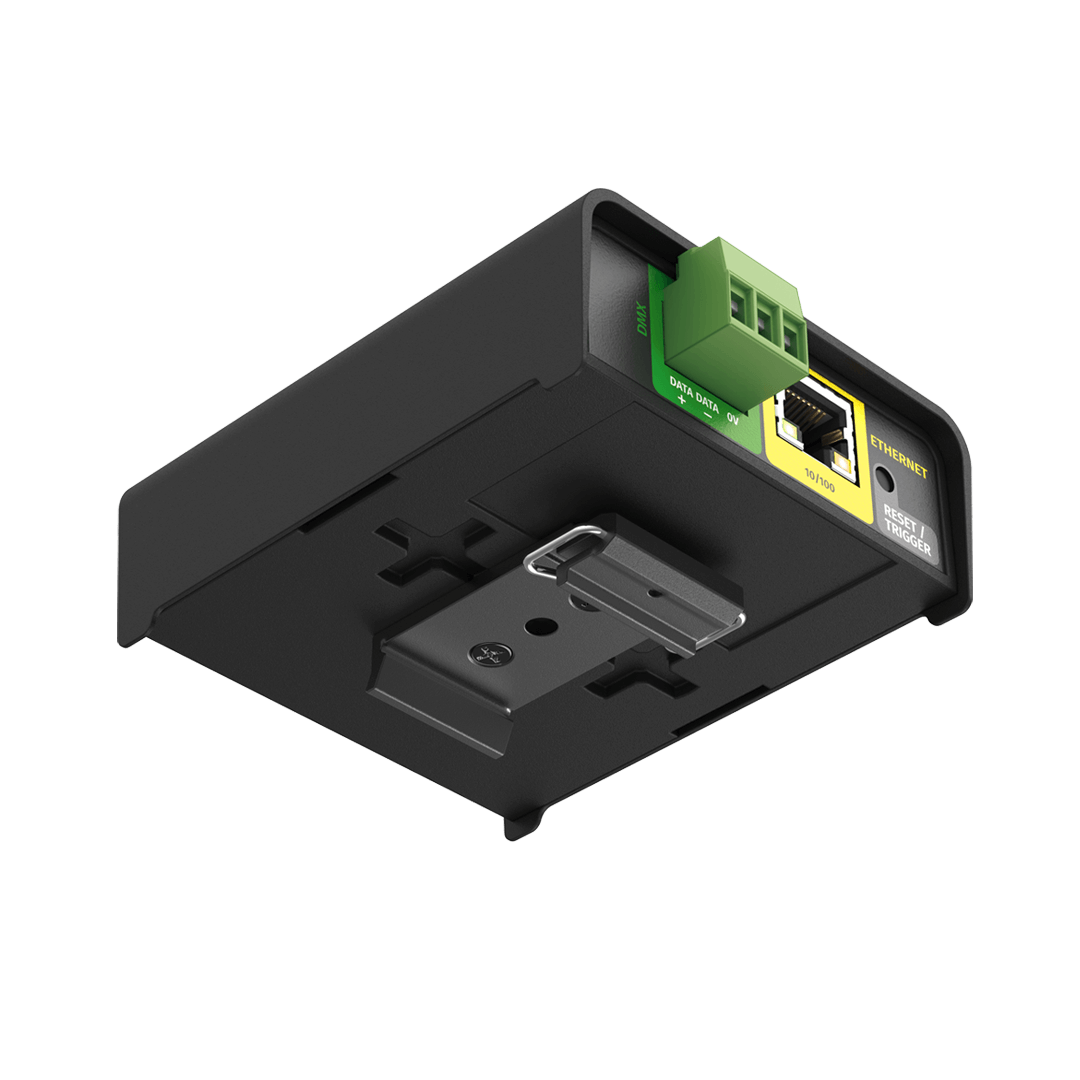

Mounting | Surface & TS35 DIN rail mountable (clips & screws included) |
IP rating | IP20 |
Environmental operating temperature | 0°C to 50°C / 32°F to 122°F |
Environmental operating humidity | 0 to 95% (non-condensing) |
Cooling method | Convection |
Body material | ABS plastic |
Unit dimensions | 100.5mm x 72.25mm x 34mm |
Unit weight | 0.83kg / 0.18lbs |
Shipping dimensions | 160mm x 140mm x 40mm |
Shipping weight | 0.16kg / 0.35lbs |
Compliance | RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA) |
Warranty | 3-year return to base manufacturer warranty |
Software
DMX universe playback | 1U (512 channels of USITT DMX512-A) |
Art-Net / sACN universe playback | 2U (1024 channels) |
Max DMX refresh rate (FPS) | 40 |
Max playlist count | 8 |
Max cue track per playlist | 2 |
Max Cues (including Static, Dynamic and Effect) | 16 |
Max Triggers | 16 |
Max Events | 16 |
OSC API | Yes |
