NA4 RGB LED strip (10m)

Great for uniform designs or injecting some creative flair to a project.

SKU： 73310-NA4-24V-RGB-60-10

Overview
Features
Specifications
Resources

Professional RGB strip for vibrant colour and creative control

ENTTEC designs and manufactures a complete range of high-quality LED strips to suit any desired mood or effect. NA4 RGB strips deliver rich, vibrant colours with exceptional saturation and smooth blending, featuring 60 LEDs per metre built on a robust 4oz copper substrate for superior durability and performance. Perfect for creating dynamic visuals, striking accents, and immersive atmospheres. Ideal for entertainment installations, stages, themed attractions, retail, and decorative colour washes.

Rich, vibrant colours with exceptional saturation and smooth blending enable you to create dynamic visuals, striking accents, and immersive atmospheres with ease. From subtle gradients to bold colour transitions, the RGB channels provide limitless creative control for any project or environment. Maximum output of 611 lm/m.

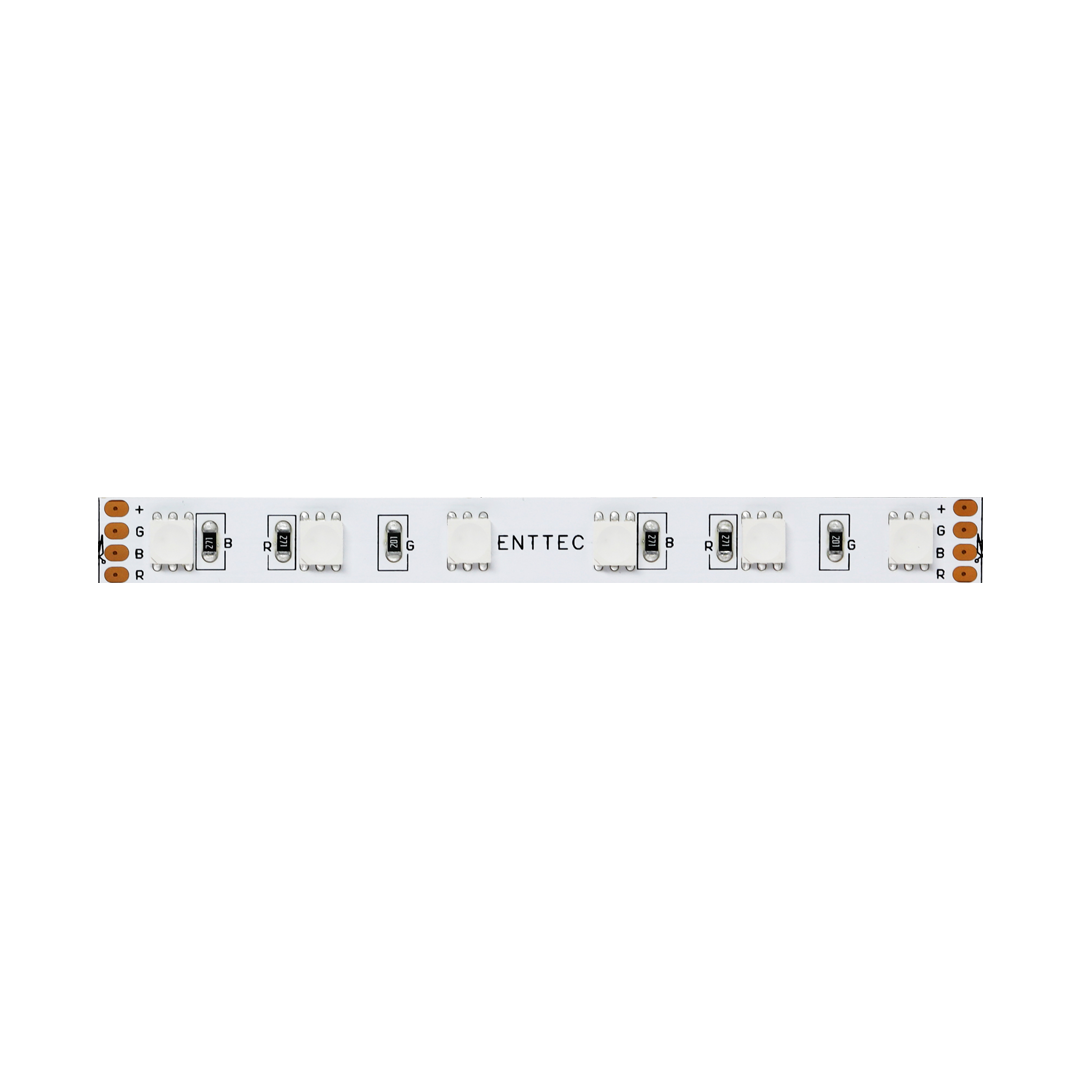

The NA4 uses white-body SMD5050 RGB LEDs to deliver more consistent blended output and reduced colour fringing. This results in cleaner colour transitions and more refined visual output, especially beneficial for retail alcoves, hospitality lighting, entertainment installations, and feature accents.

Unlike standard 1oz–2oz LED strips, the NA4 uses a heavy-duty 4oz copper substrate that provides higher current-carrying capacity, reduced voltage drop over long distances, better thermal regulation and LED longevity, and greater mechanical strength and bending reliability. This is a significant upgrade that directly increases the durability and lifespan of your installation.

With improved electrical efficiency and 4oz copper, the NA4 offers up to 10m with dual injection (8m with single injection). These improvements simplify installation layouts and reduce the number of drivers and injection points required.

Fully compatible with ENTTEC’s CVC4 constant-voltage dimmer for smooth dimming, flicker-free fades, and precise brightness control.

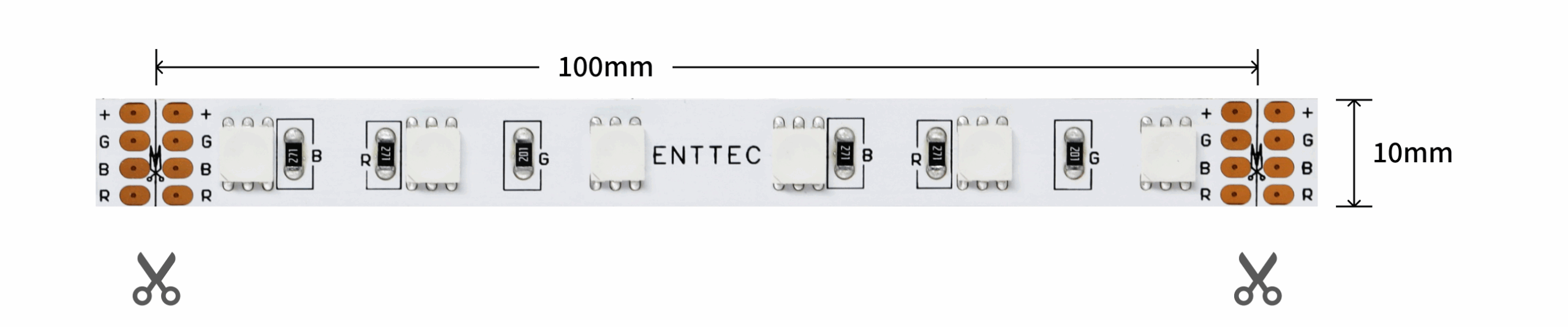

Can be cut every 100mm (6 LEDs) to create virtually any layout. Features easy solder-tab connections, premium white FPC finish, and 3M adhesive backing for quick installation.

Specifications

Connectors	4-pin solder tabs
LED Colour	RGB
IP Rating	IP20
Input Voltage	24V
Power/Metre	14.4 Watt/m
Lumens/Metre	611 Lm/m
Efficacy	42.43 Lm/w
PCB Colour	White
LED type	SMD5050
Beam Angle	120°
LED/Metre	60 LEDs/m
Spacing Between Cuttable Sections	100mm / 3.94″
LEDs per Cutting Unit	6 LEDs
PCB Width	10mm / 0.39″
Bend Radius (Min)	30mm / 1.2″
LED lifetime L70 (6K)	>36,000 hours
Dimming Method	LED dimmable by ENTTEC CVC4 (73926)
Working/Storage Temperature	-30~55°C / 0°C~60°C
Environmental Operating Humidity	5-95% (non-condensing)
Shipping Weight (10m Roll)	0.25Kg / 0.55lbs
Shipping Dimensions (Single Roll)	250mm x 255mm x 30mm / 9.84″ x 10.04″ x 1.18″
Warranty	1 year manufacturer’s return-to-base warranty
