S-PLAY NANO

1-Universe, DIN-rail-mountable solution for the recording, triggering, and activation of not only light shows but video, non-lighting events, and much more.

SKU: 70095

Overview
Features

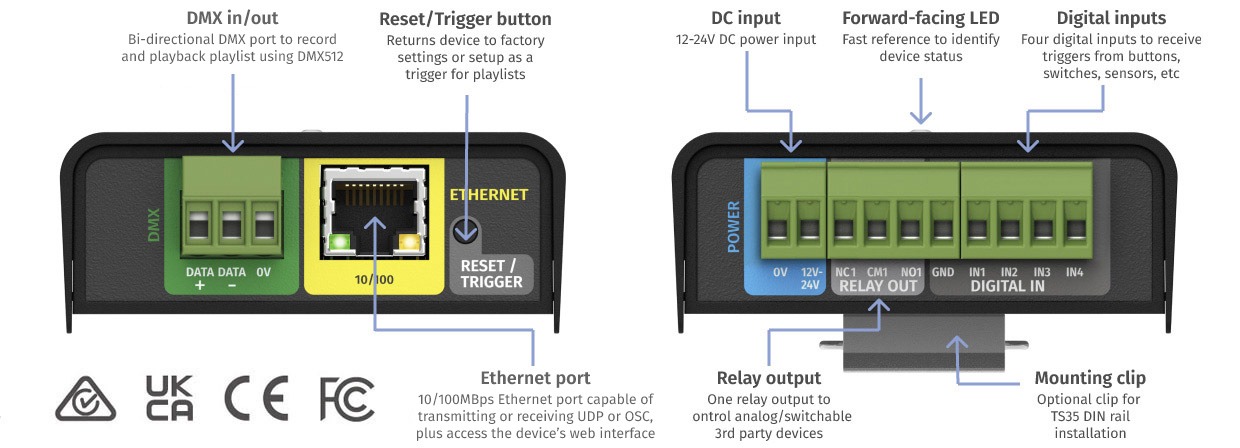

Connectivity
Specifications
Resources

DIN-rail-mountable DMX recorder + smart light show controller.

ENTTEC’s S-PLAY NANO is a compact show recorder and playback controller that simplifies professional lighting control. It records one complete Universe via DMX for up to 4 Static, Dynamic, or Effect Cues, or you can create gradient effects using the onboard pixel effects generator. The S-PLAY NANO integrates external devices like buttons, switches, or sensors for automated control via contact closures, UDP, or OSC. Its web interface allows drag-and-drop playlist design with customizable triggers, fades, and intensities. Playlists can be set to loop on power-up or triggered to run simultaneously with overlapping effects.

The S-PLAY NANO is a powerful, professional light show generation engine, featuring multiple ways of recording and creating content for your show.

Record light scenes into static/dynamic cues from external sources such as lighting software via sACN, Art-Net or from physical universes using the DMX port.

Use the internal web-based engine to generate gradient effect cues or simple light scenes by editing DMX values manually.

Create playlists for DMX or pixel light shows using the intuitive timeline editor, and integrate both lighting and non-lighting equipment through multiple protocols and contact closures.

Use these components as building blocks in your playlists to initiate automation events using protocols like OSC, UDP, DMX, Art-Net, and sACN.

Moreover, you can trigger playlists in real-time using external building automation software, iPad Apps, pressure pads, motion detectors, push buttons, and various other methods.

The S-PLAY NANO’s sophisticated and intuitive playlist creation tools include:

– Drag and drop cues, events and triggers into the timeline
– Adjust the duration for static cues and effects
– Fade in/out for all cues
– Control playlist intensity in real-time
– Design your show with a combination of different cues, events and triggers
– Edit, loop, prioritise and group playlists
– Play single or multiple playlists

Use the intuitive web-based creation tool to set up multiple playlists to play back on demand. The customised user interface simplifies commissioning to make playback easier than ever, with multiple installation options to secure your device with peace of mind.

Set up multiple playlists to playback simultaneously in various ways using real–time triggers or even custom user interface for different needs. The S-PLAY NANO optimises the intricate lighting setup within finger reach so you can set and forget.

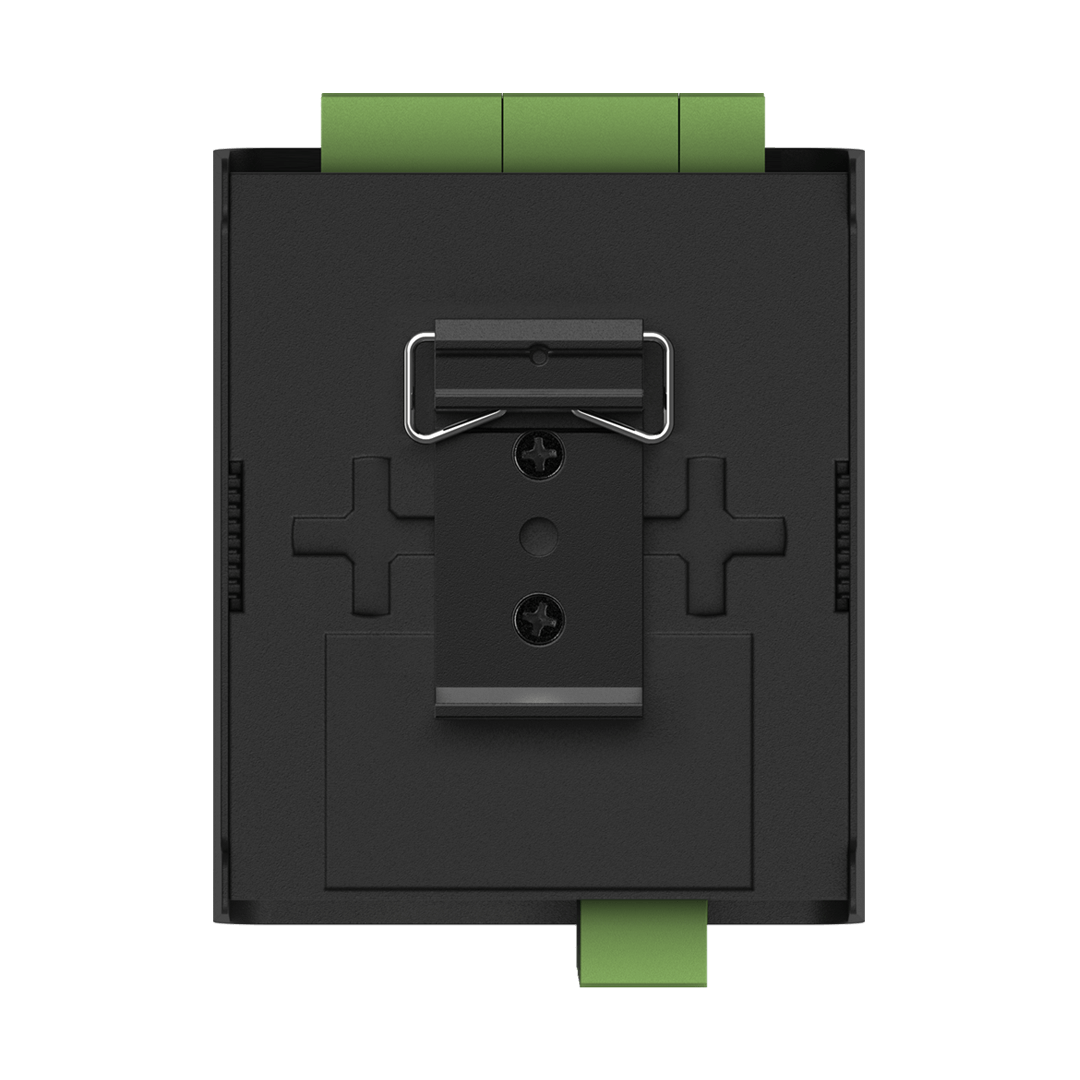

The S-PLAY NANO offers versatile installation possibilities with both DIN-rail and surface-mount options, making it adaptable to a wide range of environments. Whether you’re working in a compact space or a large-scale venue, the S-PLAY NANO can seamlessly integrate into your setup.

Firmware updates, backup, restore and playlist management can be accessed easily on the web interface at the local network.

S-Play Mini or Nano?

A compact DMX recorder/show controller can form such an integral part of almost any lighting setup. Join Jasmine from ENTTEC as she takes you through the differences between the S-PLAY NANO and S-PLAY MINI: two devices that may look rather similar on the surface.

Discover which one is best suited to your requirements – and you’ll soon be up and running in no time!

Integrate your S-Play with these popular automation systems

Home Automation
Building Automation Management
Conference Rooms
Façade Lighting
Art Installations
Hotel Lighting
System Control
Hospitality Lighting
Architainment Lighting

Specifications

Input voltage	12V DC to 24V DC
Power input	2-pin Phoenix screw terminal
Max power draw	3W

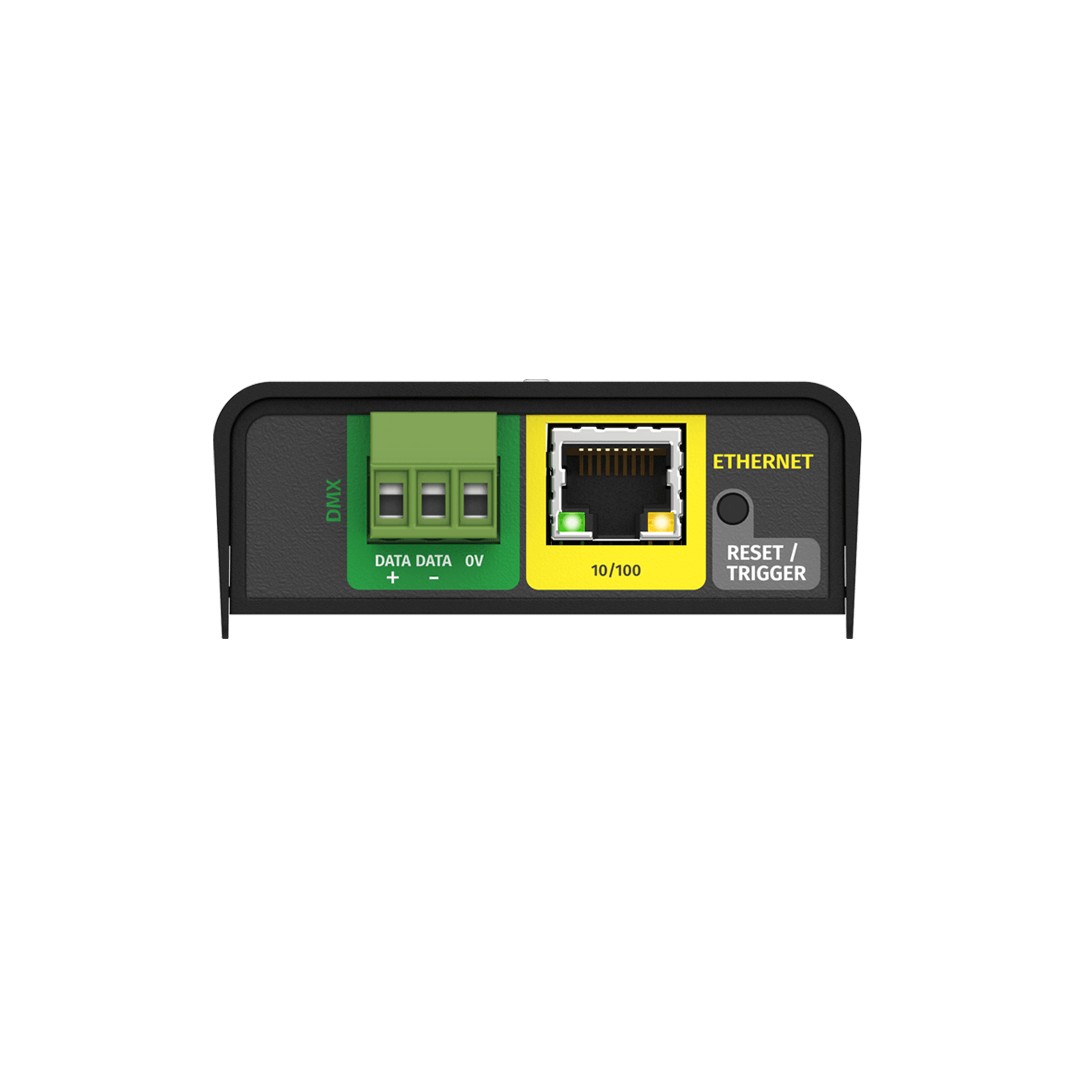

Ethernet port	RJ45

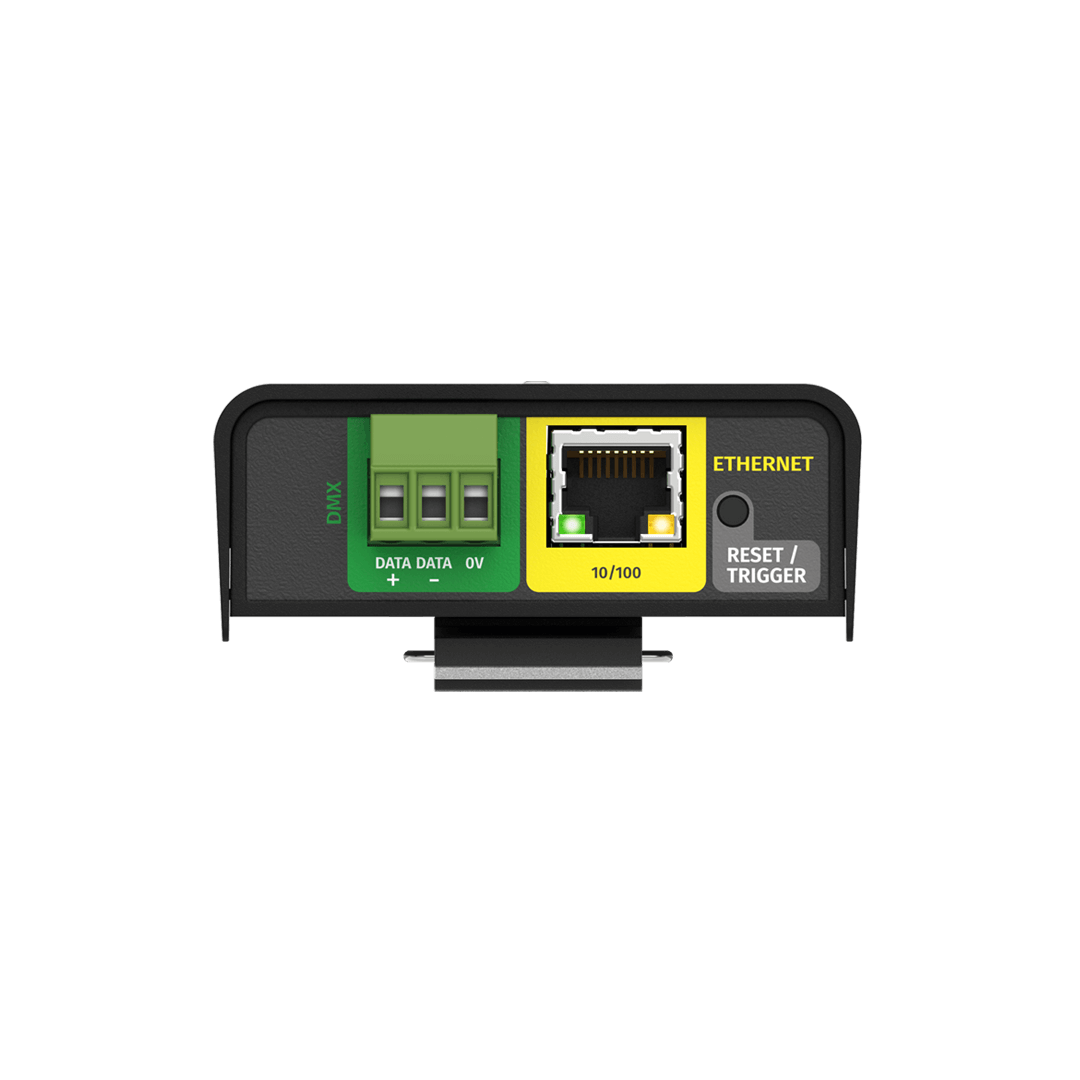

DMX port	Bi-directional 1 x 3-pin Phoenix screw terminal

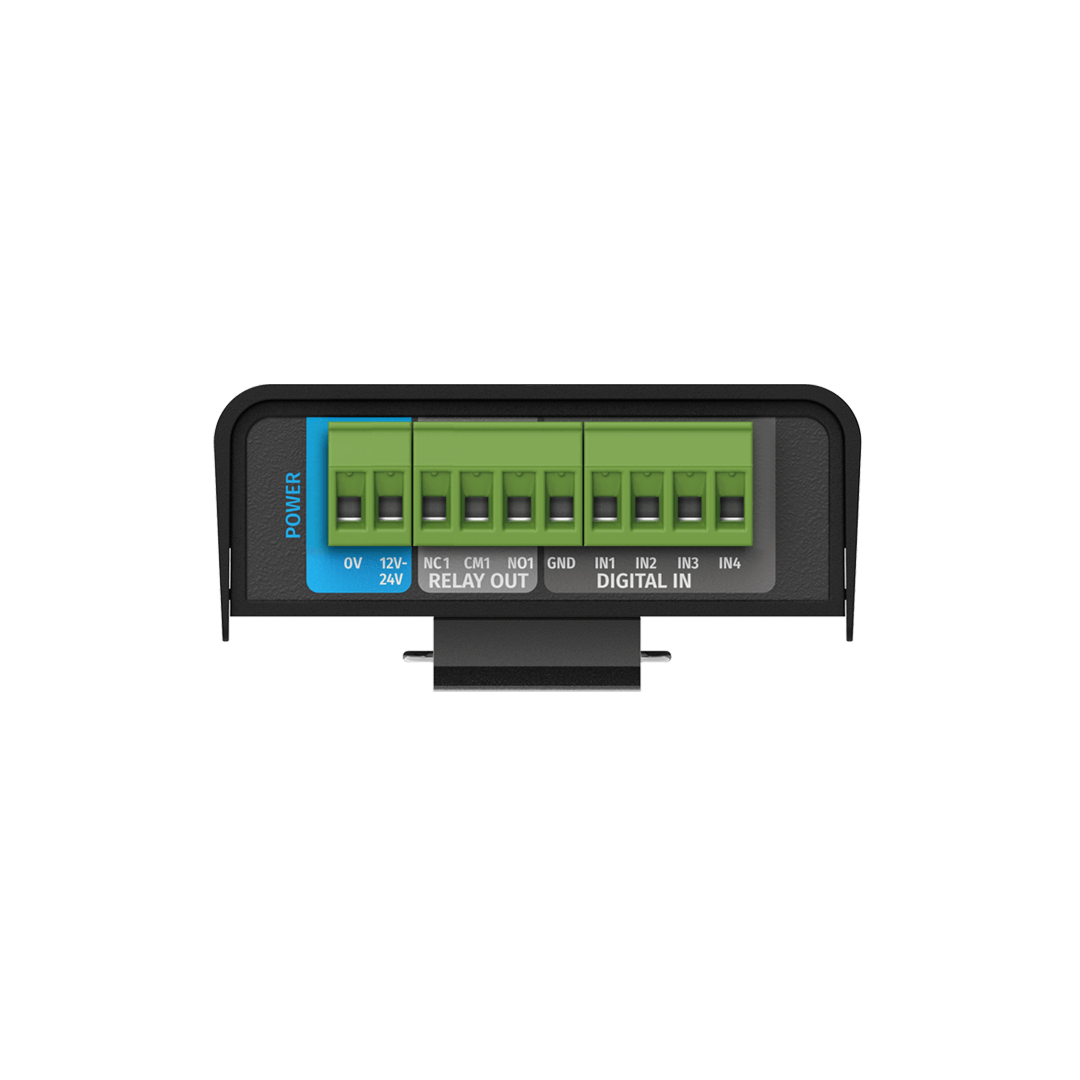

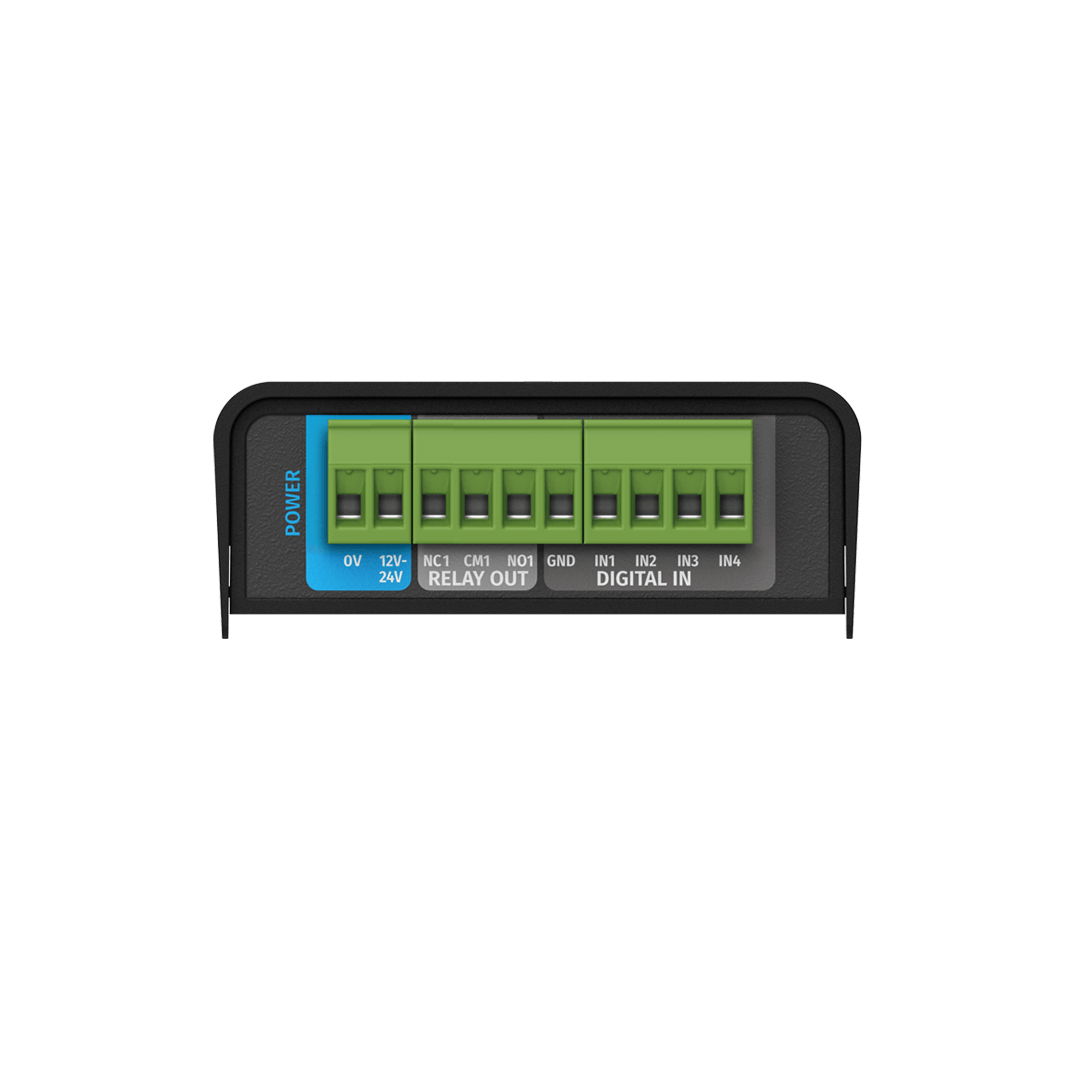

Digital input	4 digital inputs + 1 GND (5-pin Phoenix screw terminal)
Relay	1 x relay (3-pin screw terminal)
Internal show storage capacity	1GB

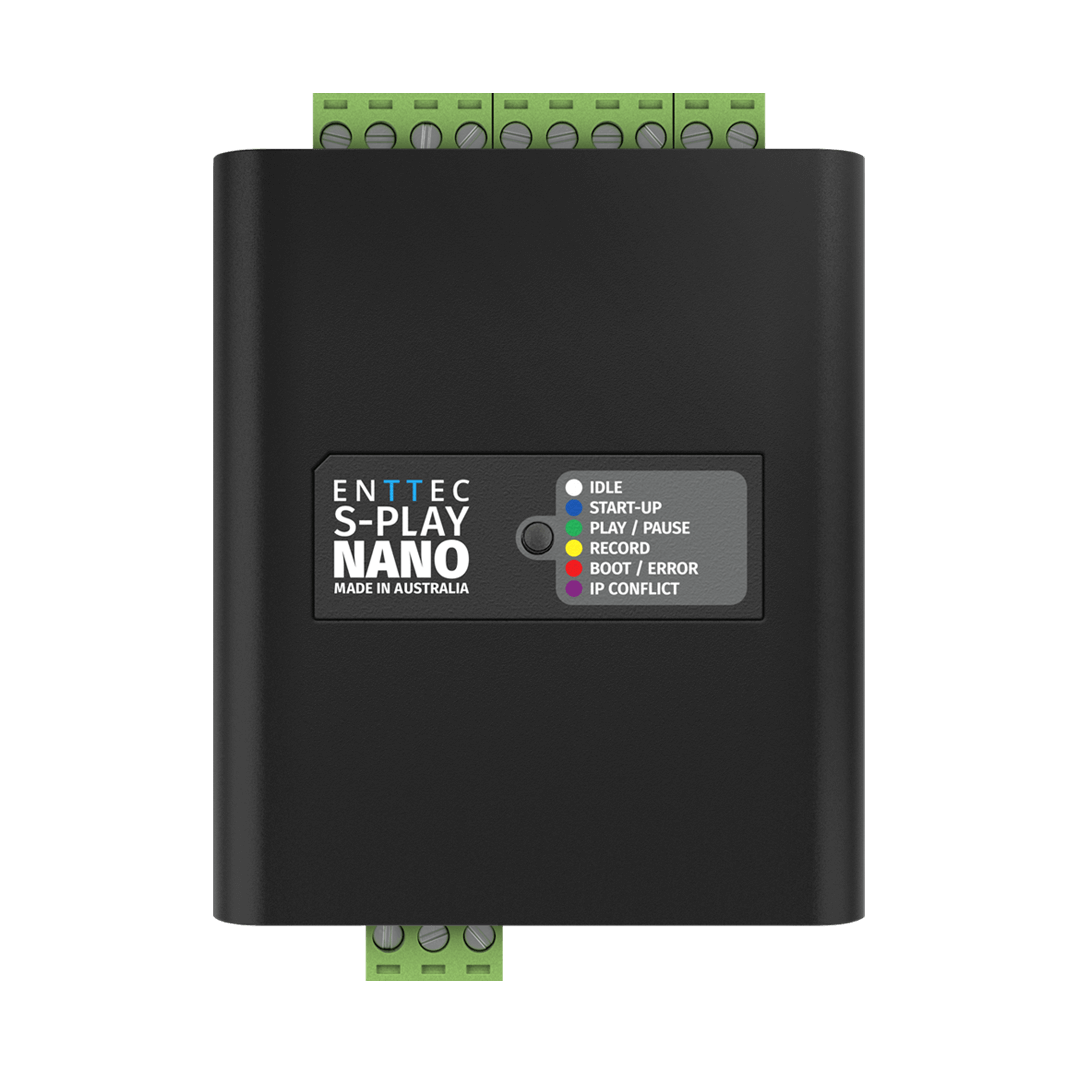

LED indicators	Forward-facing LED indicator + network link/activity (integrated into RJ45 port)
Factory reset	Web interface / reset button

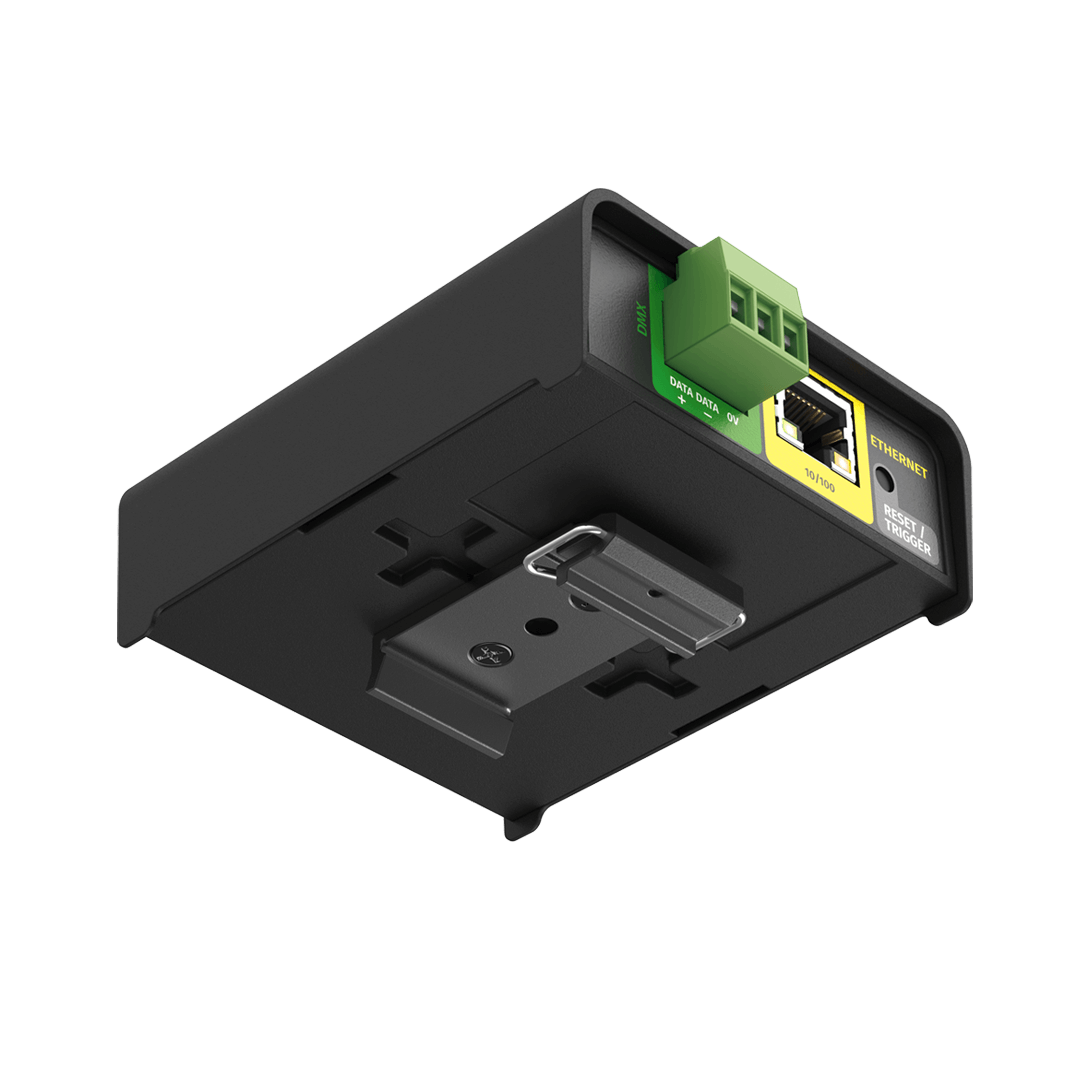

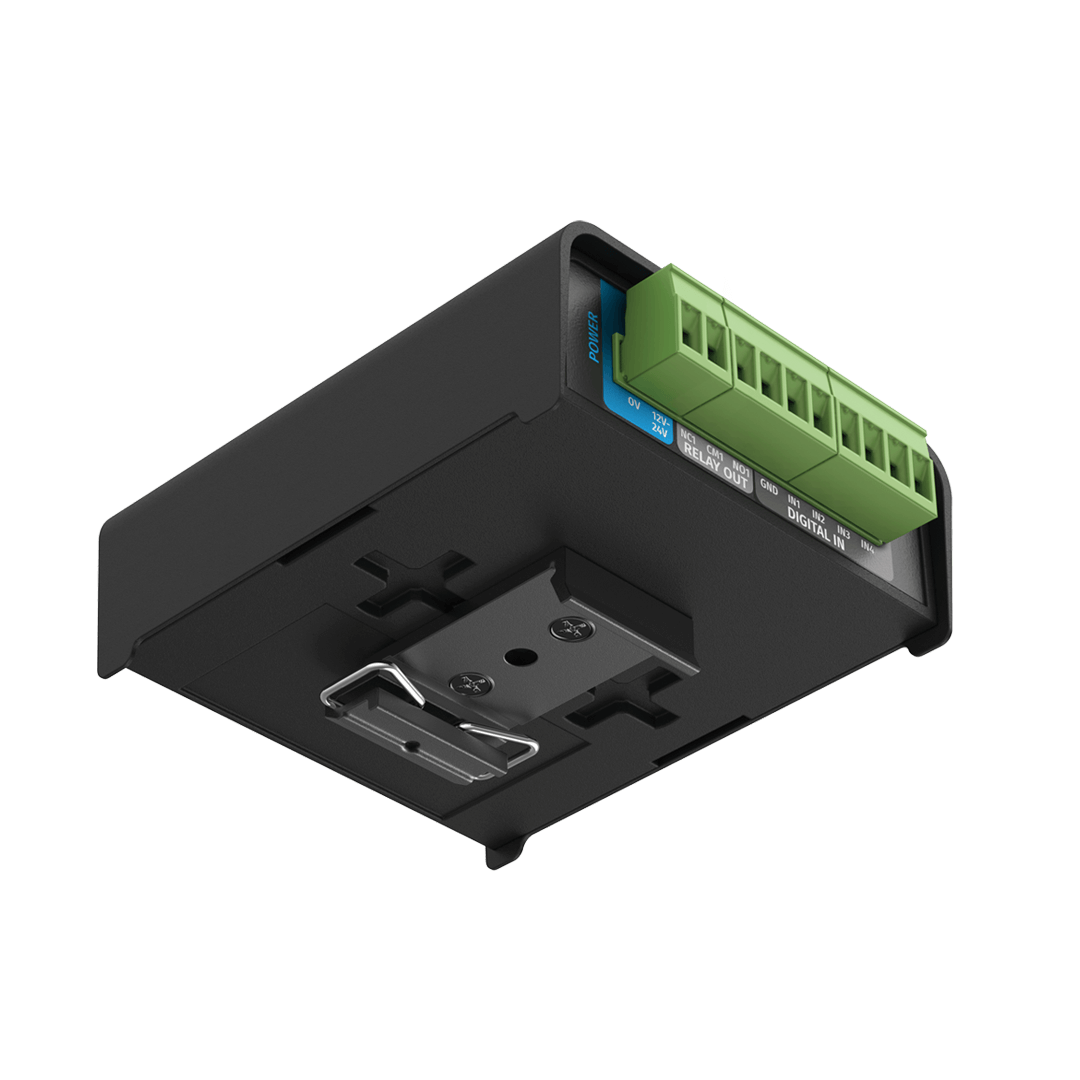

Mounting	Surface & TS35 DIN rail mountable (clips & screws included)
IP rating	IP20
Environmental operating temperature	0°C to 50°C / 32°F to 122°F
Environmental operating humidity	0 to 95% (non-condensing)
Cooling method	Convection
Body material	ABS plastic
Unit dimensions	100.5mm x 72.25mm x 34mm
Unit weight	0.83kg / 0.18lbs
Shipping dimensions	160mm x 140mm x 40mm
Shipping weight	0.16kg / 0.35lbs
Compliance	RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)
Warranty	3-year return to base manufacturer warranty

Software

DMX universe playback	1U (512 channels of USITT DMX512-A)
Max DMX refresh rate (FPS)	40
Max playlist count	4
Max cue track per playlist	1
Max Cues (including Static, Dynamic and Effect)	4
Max Triggers	8
Max Events	4
OSC API	Yes

Resources

S-PLAY NANO data sheet

S-PLAY NANO user manual

S-PLAY TouchOSC guide

S-PLAY OSC API

S-PLAY NANO drawing + dimensions

S-PLAY NANO 3D model STEP file

S-PLAY NANO hi-res images (39.1mb)

S-PLAY NANO firmware v1.0.0

S-PLAY NANO release notes

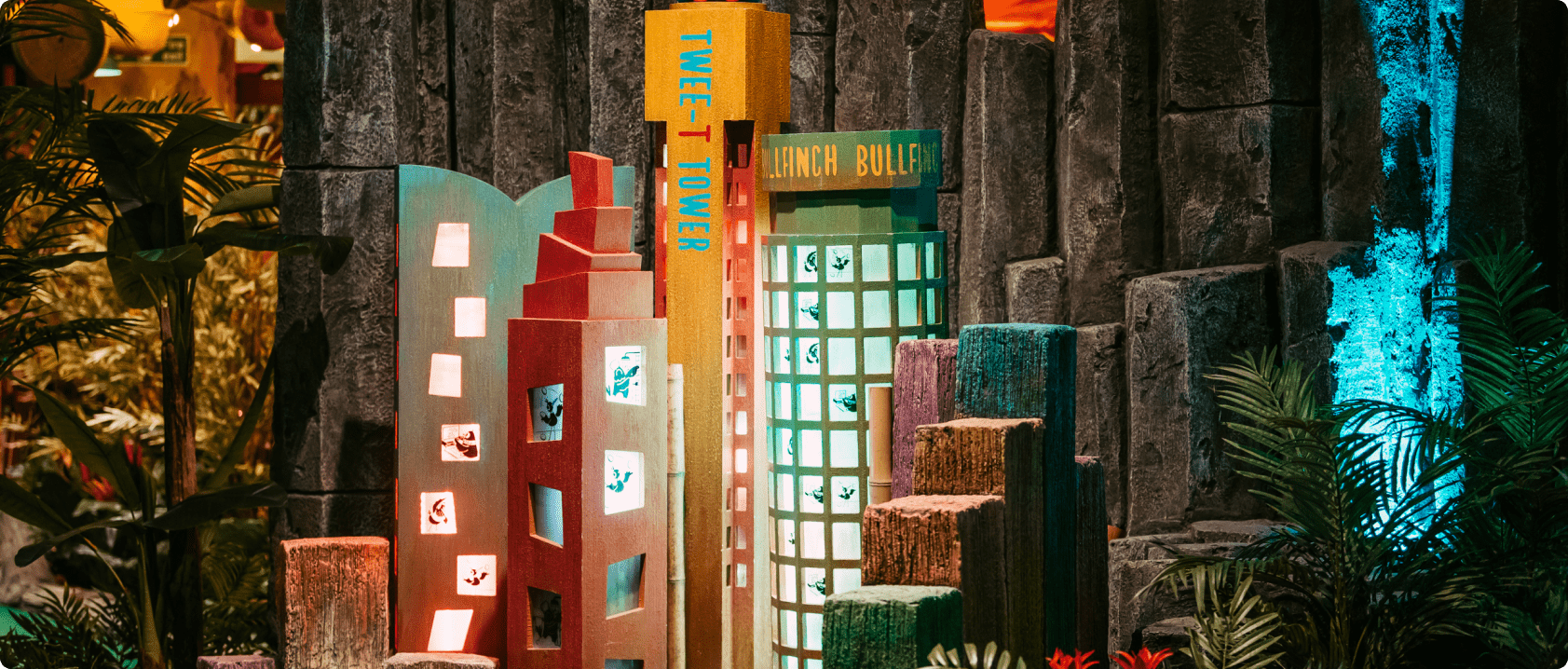

Projects Featuring the S-PLAY NANO
