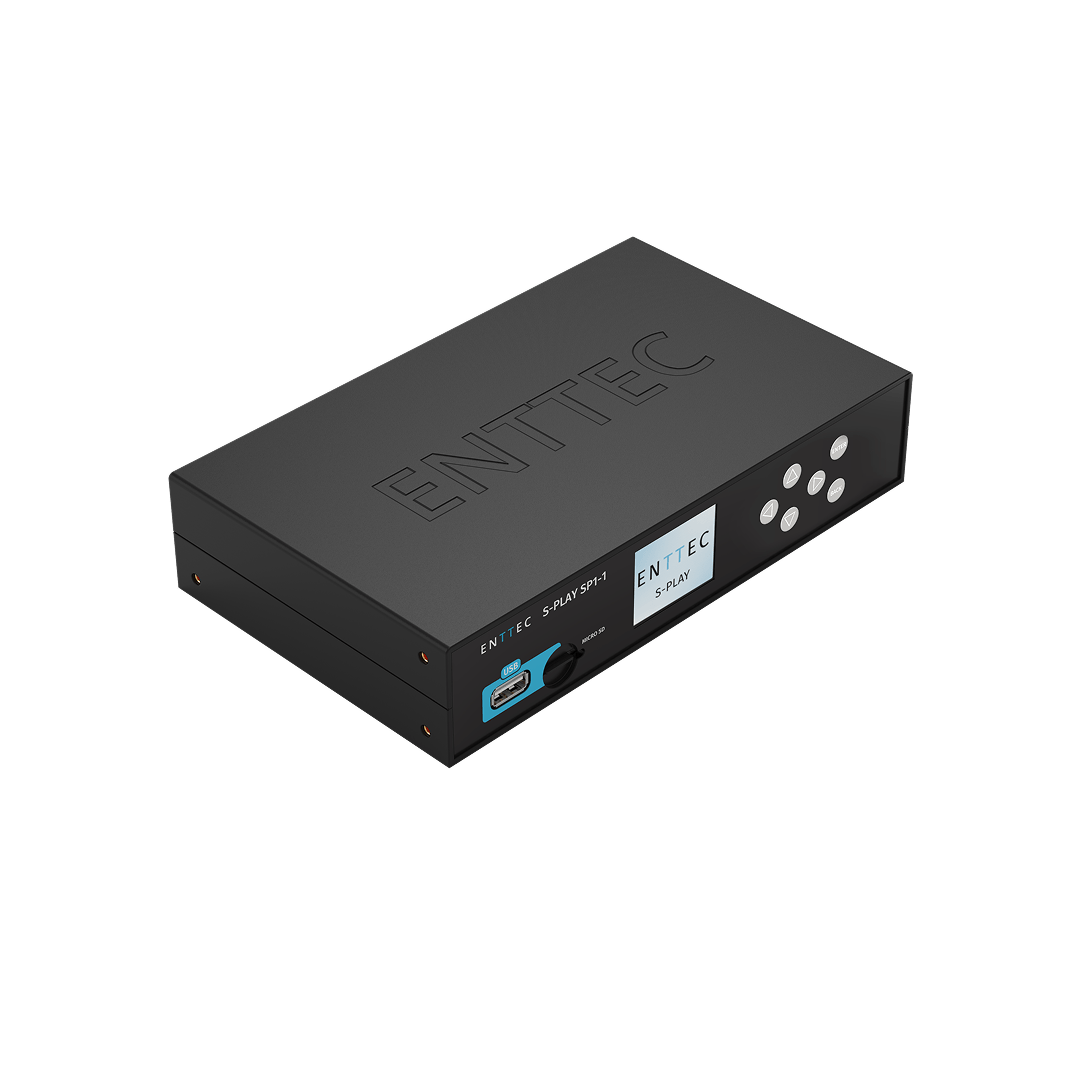

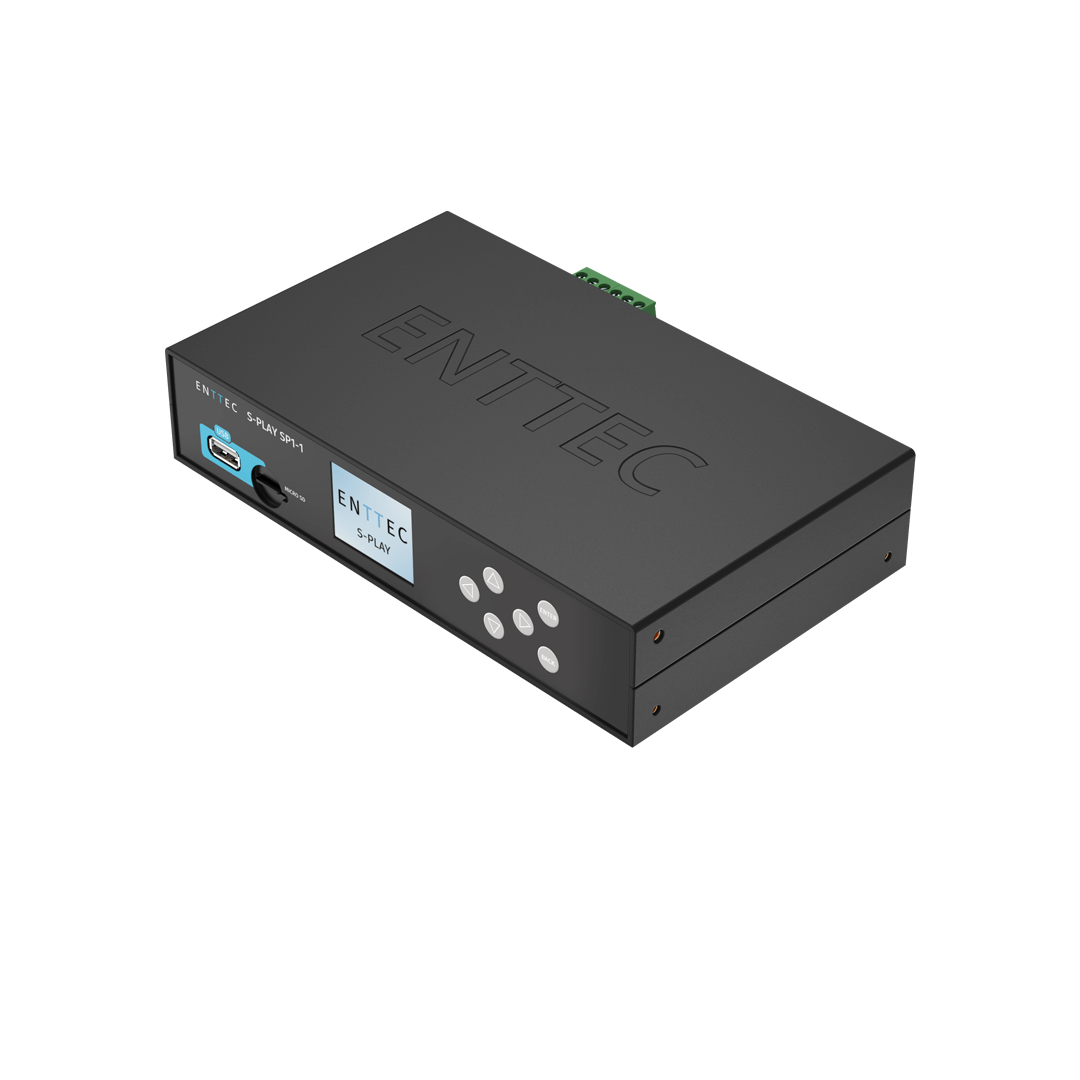

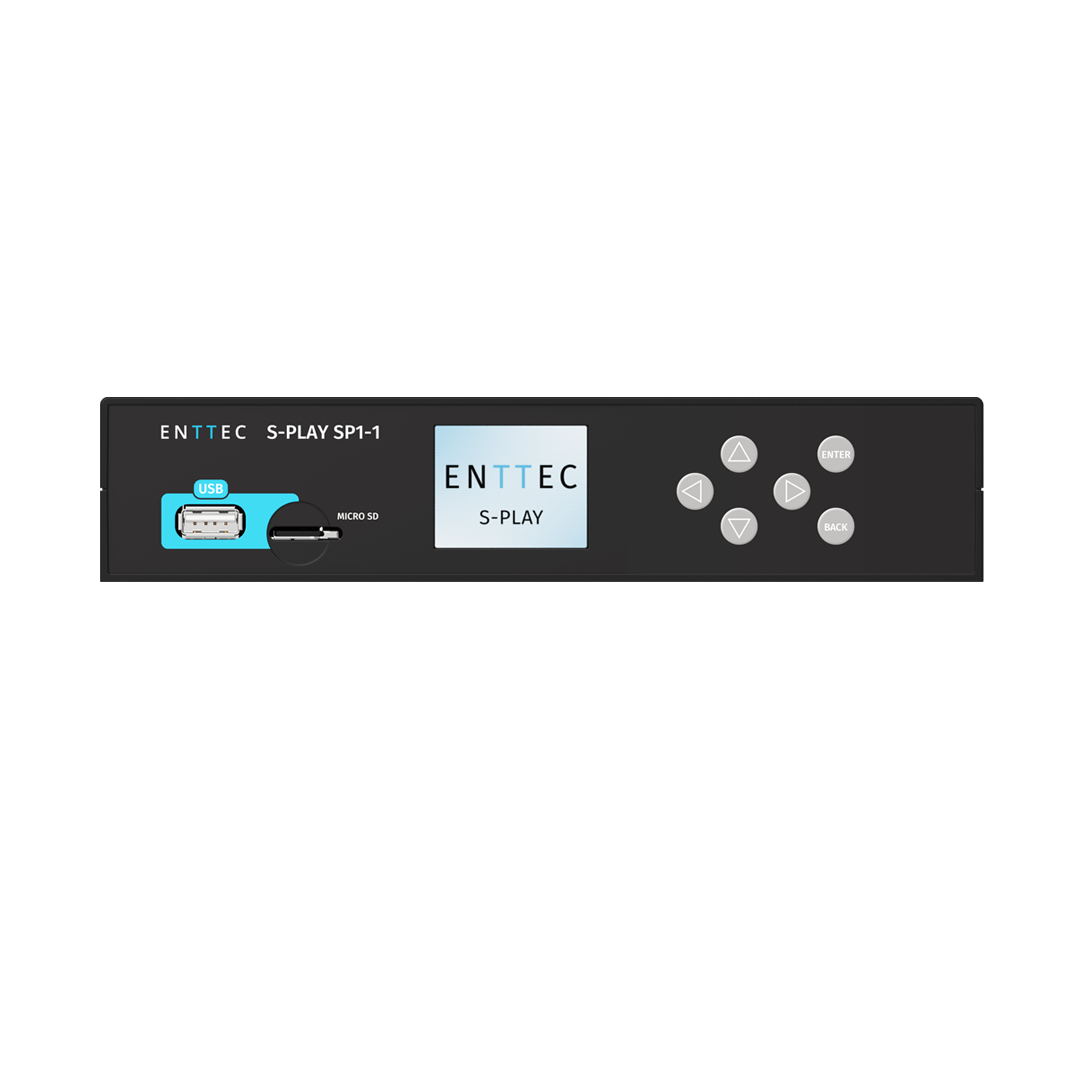

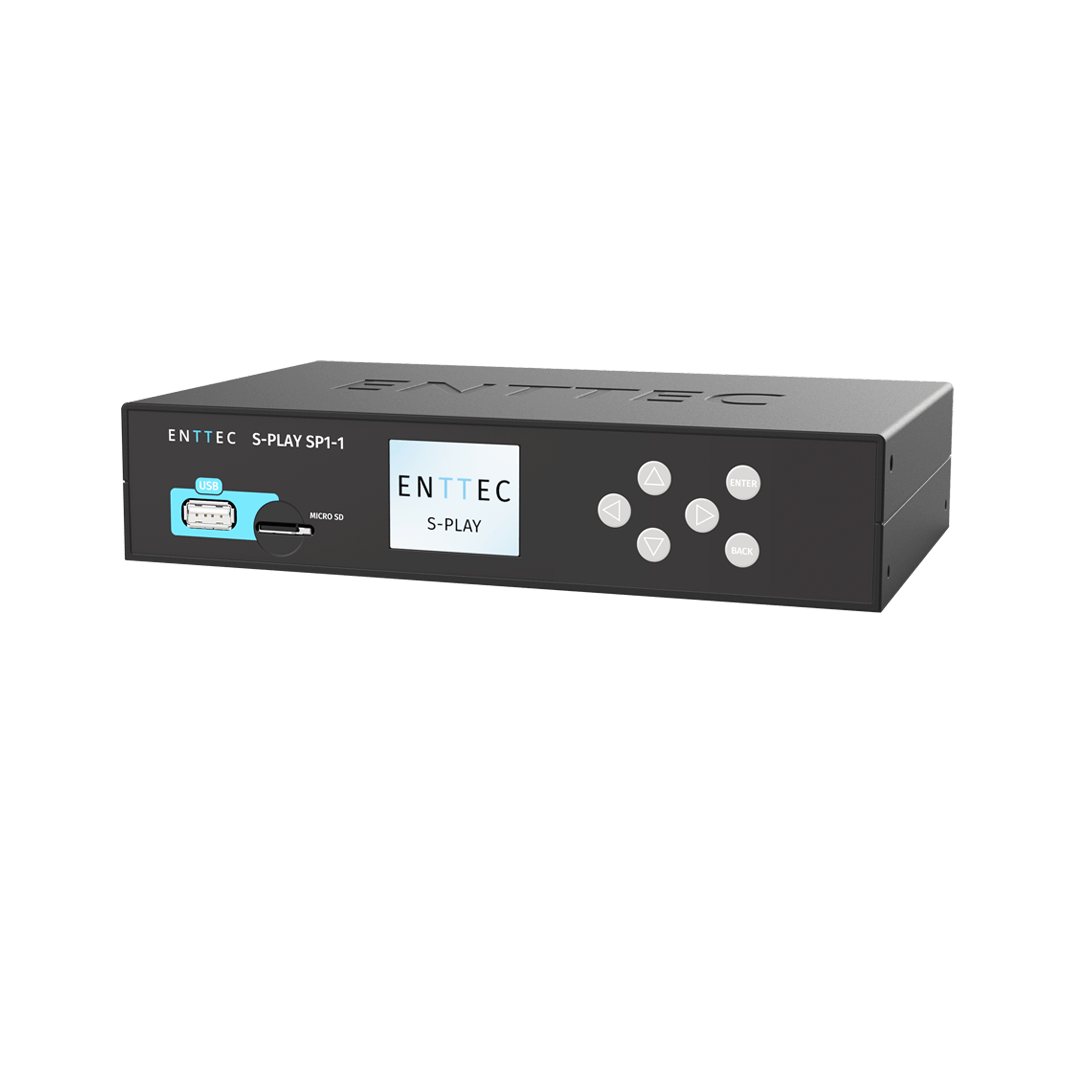

S-PLAY SP1-1

Engineered for projects that require precise automation, the S-PLAY smart light show controller is your all-in-one solution for the recording, triggering, and activation of not only light shows but video, non-lighting events, and much more.

SKU: 70092

Overview
Features

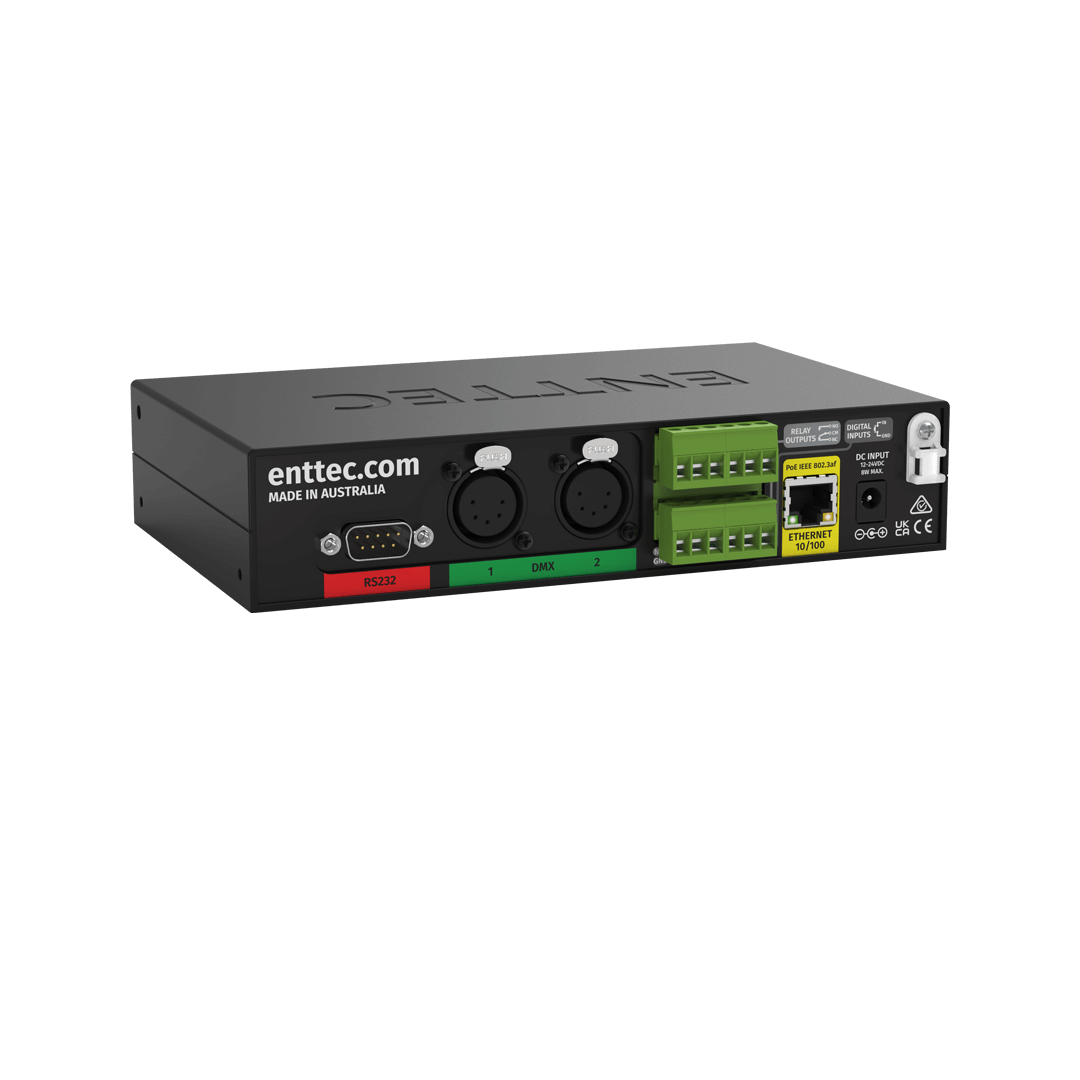

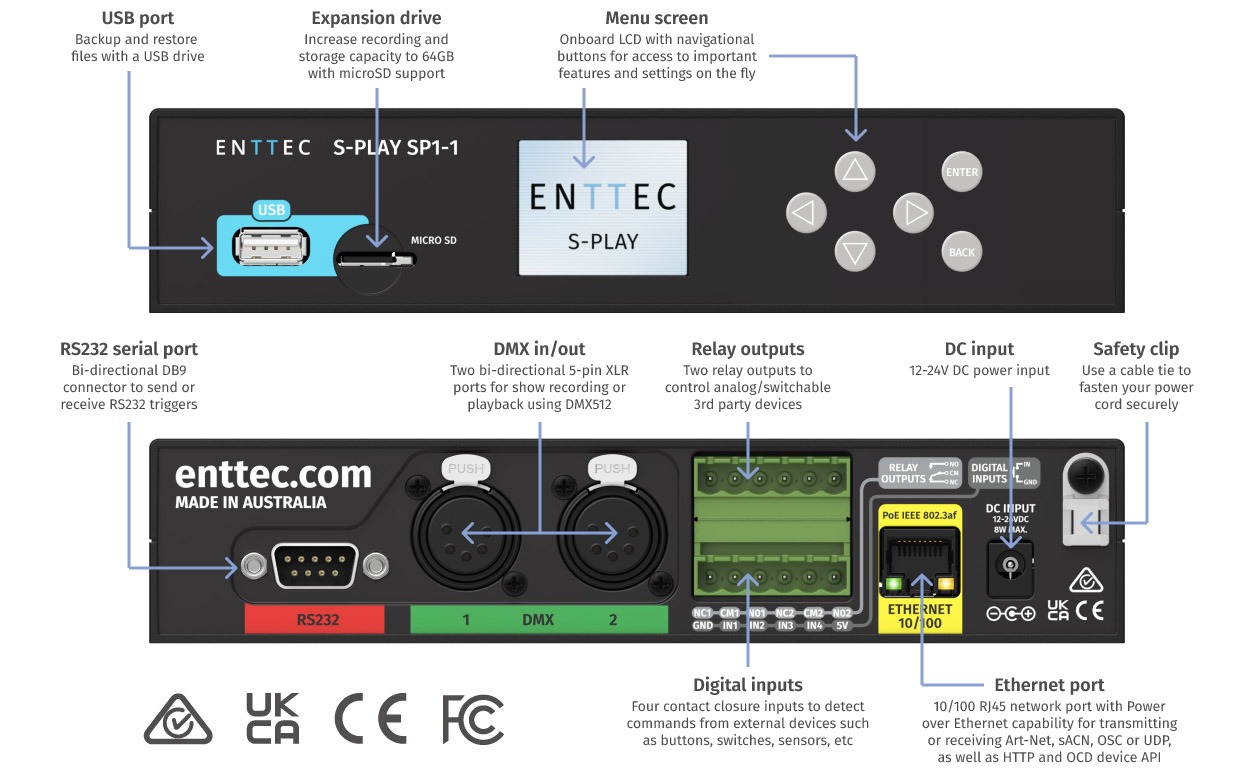

Connectivity
Specifications
Resources

32-Universe, all-in-one DMX recorder & smart light show controller

The ENTTEC S-Play SP-1 is a versatile smart show recorder and playback controller, ideal for automated light shows and complex projects. It allows you to create, record, schedule, and trigger light shows, video, and more, all from a single device. With 32-universe DMX recording, custom web interfaces, and a built-in effects generator, it’s easy to use and offers professional results without requiring expert knowledge. Install it anywhere with flexible mounting options and enjoy seamless, multi-show playback.

The S-PLAY is a powerful, professional light show generation engine, featuring multiple ways of recording and creating content for your show.

Record light scenes into static/dynamic cues from external sources such as lighting software via sACN, Art-Net or from physical universes using the DMX port.

Use the internal web-based engine to generate gradient effect cues or simple light scenes by editing DMX values manually.

Create playlists for DMX or pixel light shows using the intuitive timeline editor, and integrate both lighting and non-lighting equipment through multiple protocols and contact closures.

Use these components as building blocks in your playlists to initiate automation events through contact closure, RS232, or protocols like OSC, UDP, DMX, Art-Net, and sACN.

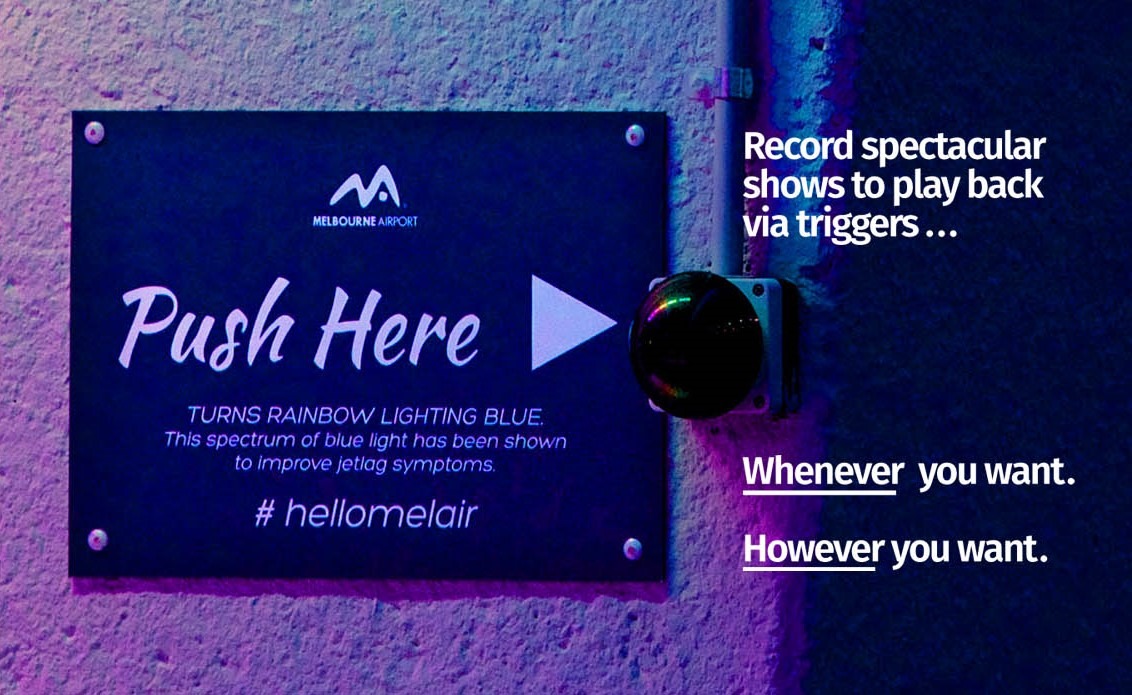

Moreover, you can trigger playlists in real-time using external building automation software, iPad Apps, pressure pads, motion detectors, push buttons, and various other methods.

The S-PLAY’s sophisticated and intuitive playlist creation tools include:

– Drag and drop cues, events and triggers into the timeline
– Adjust the duration for static cues and effects
– Fade in/out for all cues
– Control playlist intensity in real-time
– Design your show with a combination of different cues, events and triggers
– Edit, loop, prioritise and group playlists
– Play single or multiple playlists

Simply set and forget for permanent installation and easy management. You can play back your show at any time and in any way you like through interactive control or scheduled timings.

Use the intuitive web-based creation tool to set up multiple playlists to play back on demand. The customised user interface simplifies commissioning to make playback easier than ever, with multiple installation options to secure your device with peace of mind.

Set up multiple playlists to playback simultaneously in various ways using real–time triggers, internal Schedules, or even custom user interface for different needs. The S-PLAY optimises the intricate lighting setup within finger reach so you can set and forget.

Light show playlists can be set up to playback:

– By pre-set triggers to create real-time interactive lighting control
– By scheduler for an automatic long-term setting with perfect local time synchronisation via NTP
– Customised user interface for hassle-free direct control

Advanced features elevate the S-PLAY into the architectural sphere, bringing you borderless control.

Open API:
Flexible control system integration that allows external commission through text-based codes.

Multi-Sync:
Sync multiple S-PLAYs on the same network when you need more than 32 Universes.
The leader S-PLAY can synchronise follower S-PLAYs to enable recording and playback with increased capacity.
Set playlist schedules that sync the playlist command across follower S-PLAYs.

Remote access:
Access one or multiple S-PLAYs through the AWS cloud server from anywhere in the world.

Management:
Firmware updates, backup, restore and playlist management can be accessed easily on the web interface at the local network.

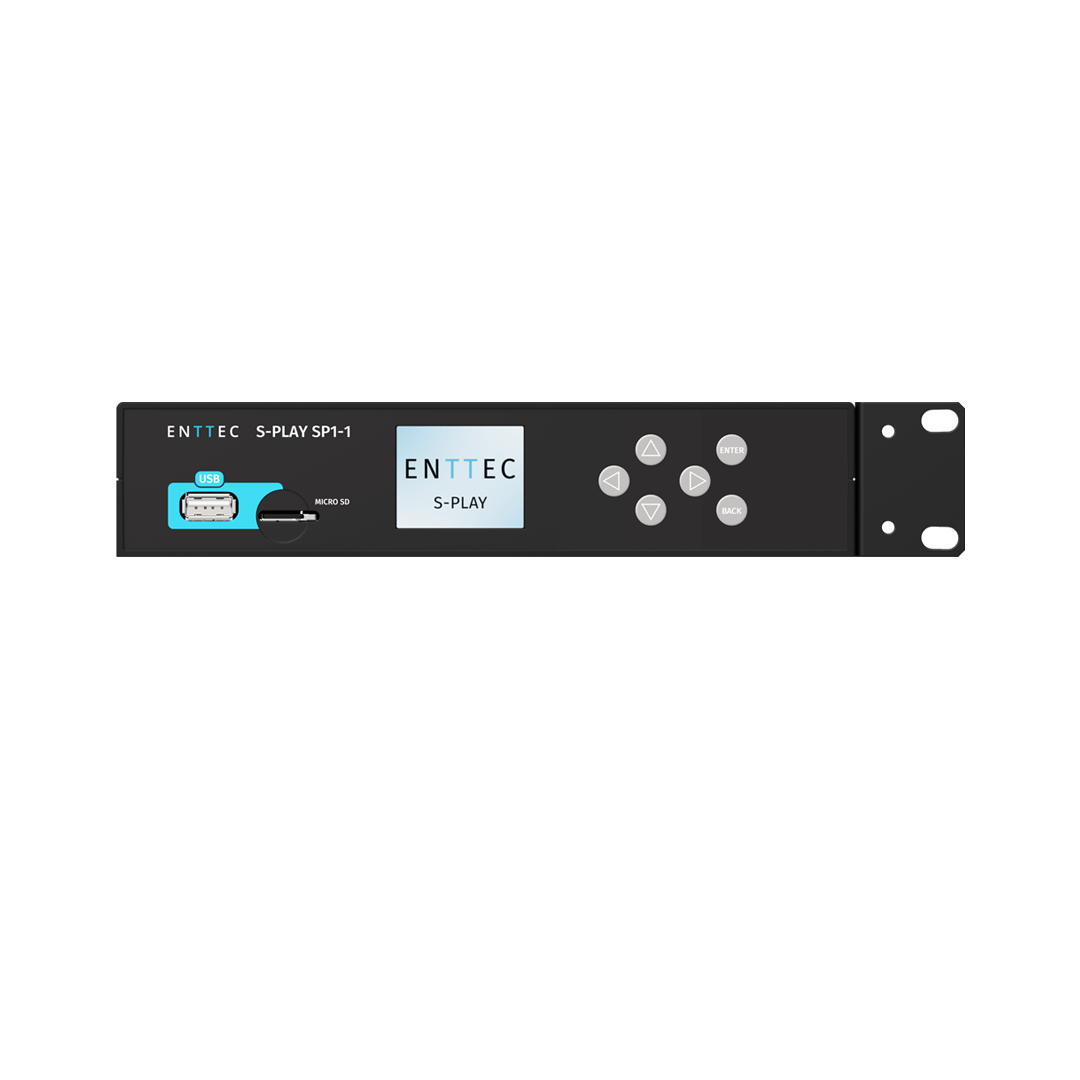

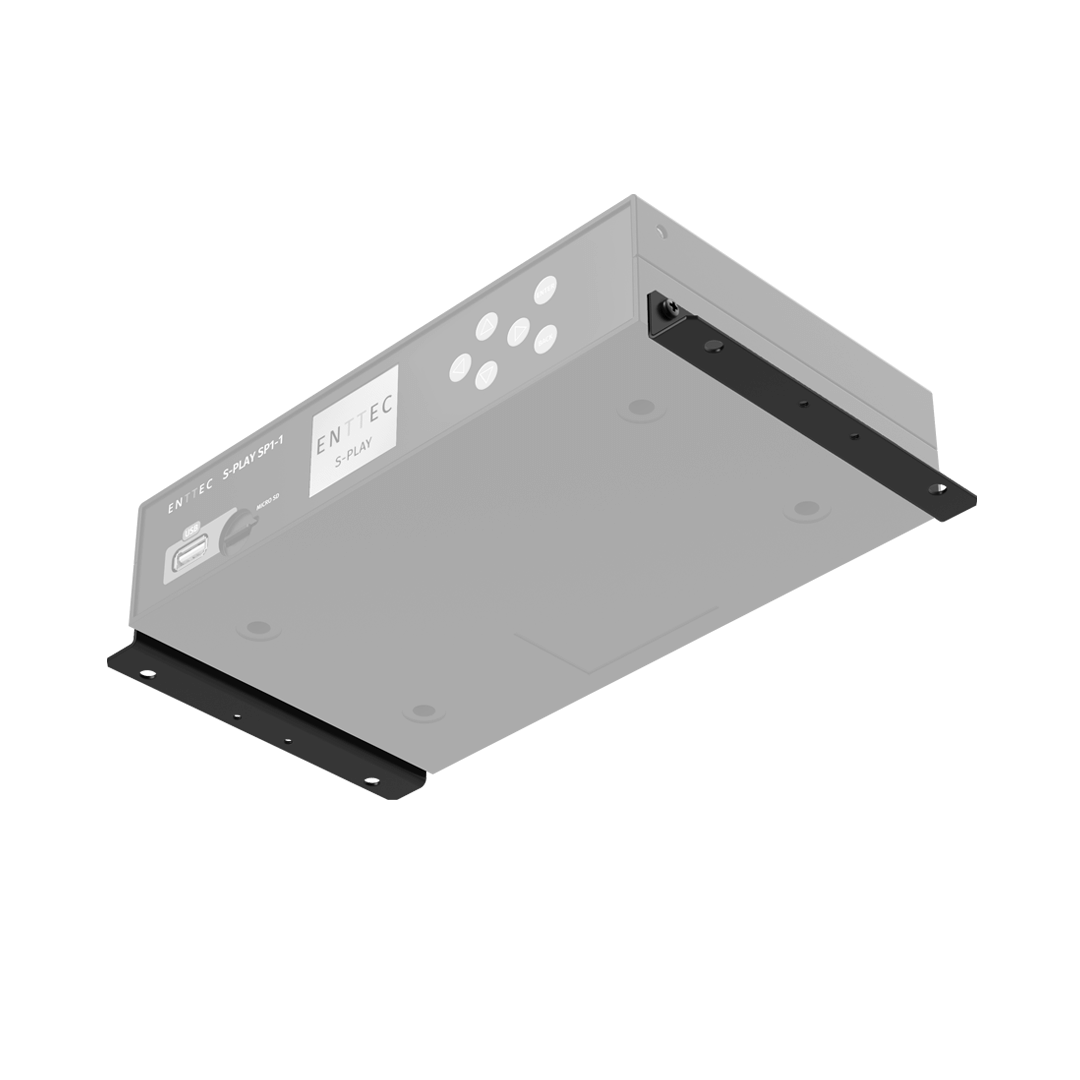

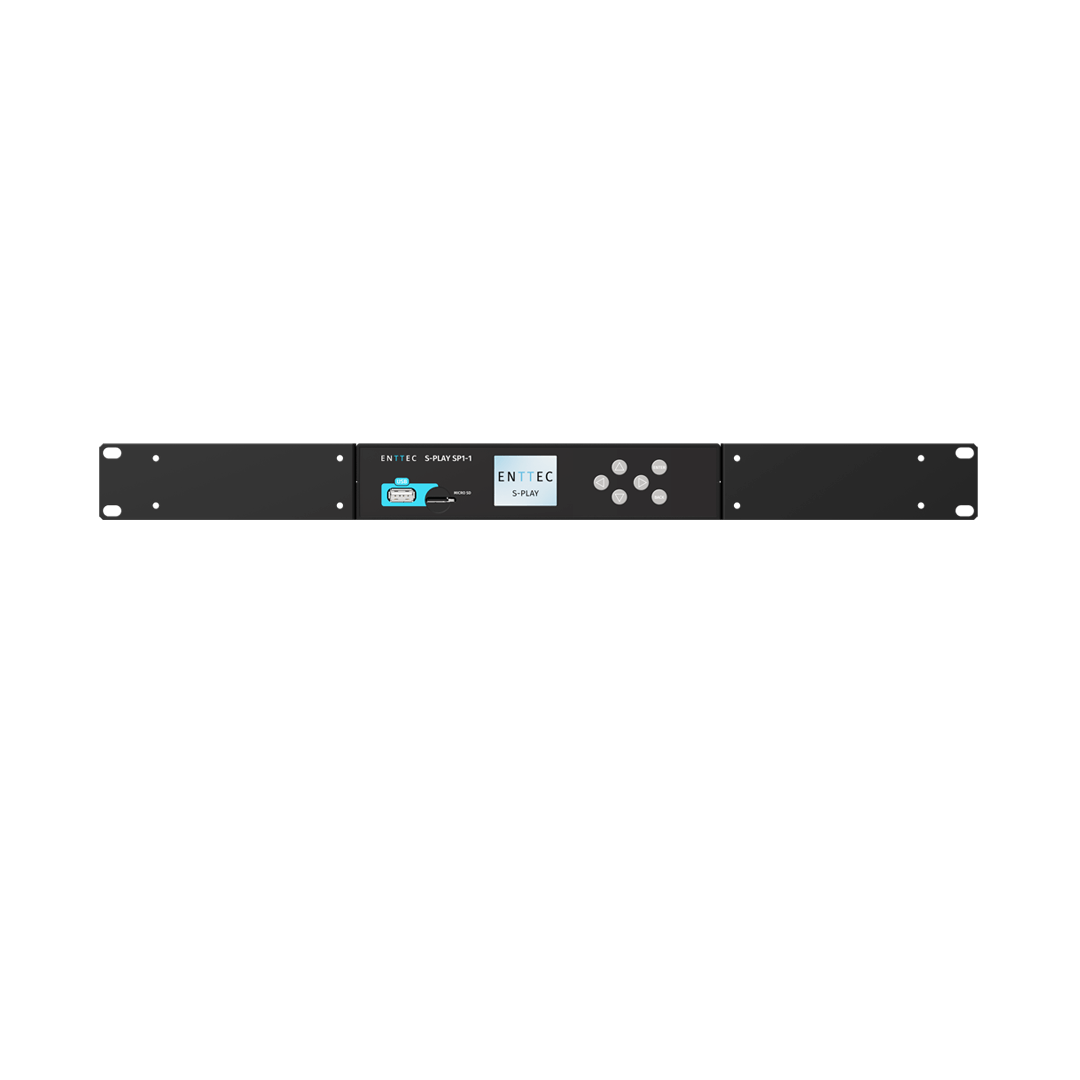

The S-PLAY offers versatile installation possibilities with both rack-mount and surface-mount options, making it adaptable to a wide range of environments. Whether you’re working in a compact space or a large-scale venue, the S-PLAY can seamlessly integrate into your setup.

Get to know the S-Play

Discover how to create an impressive and straightforward interactive LED lighting setup with ease. Join Nic as he demonstrates a basic S-Play configuration, including using an external button to switch between cues. We’ll also take a look at the S-PLAY’s intuitive web interface and learn the essentials of the unit’s capabilities.

Follow this easy lesson and you’ll be up and running in no time!

NOTE: The S-PLAY hardware and its web interface have seen continual improvements and visual modifications since this video was produced, although its core functionality remains the same. The Pixie Driver is a legacy product, but there are many current ENTTEC LED controllers you could use in its place, e.g., the OCTO. Enjoy!

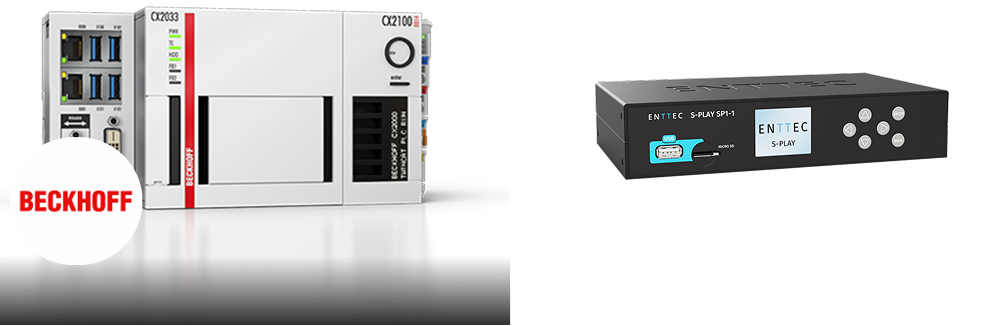

Integrate your S-Play with these popular automation systems

Home Automation
Building Automation Management
Conference Rooms
Façade Lighting
Art Installations
Hotel Lighting
System Control
Hospitality Lighting
Architainment Lighting

Specifications

Input voltage	12V DC to 24V DC
Power input	DC jack (12V PSU & international plugs included)
Max power draw	8W
Ethernet port / PoE	RJ45 / PoE IEEE 802.3af

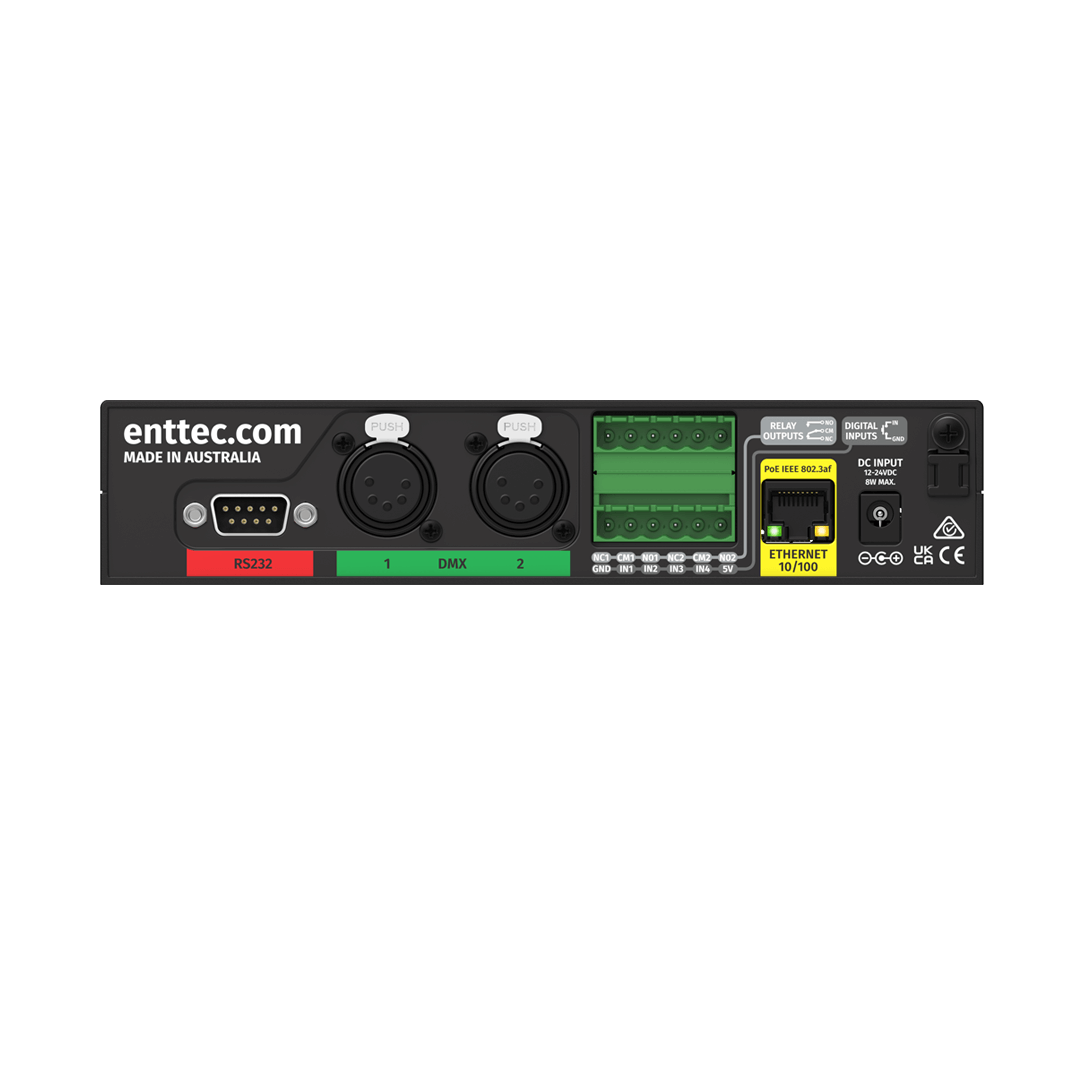

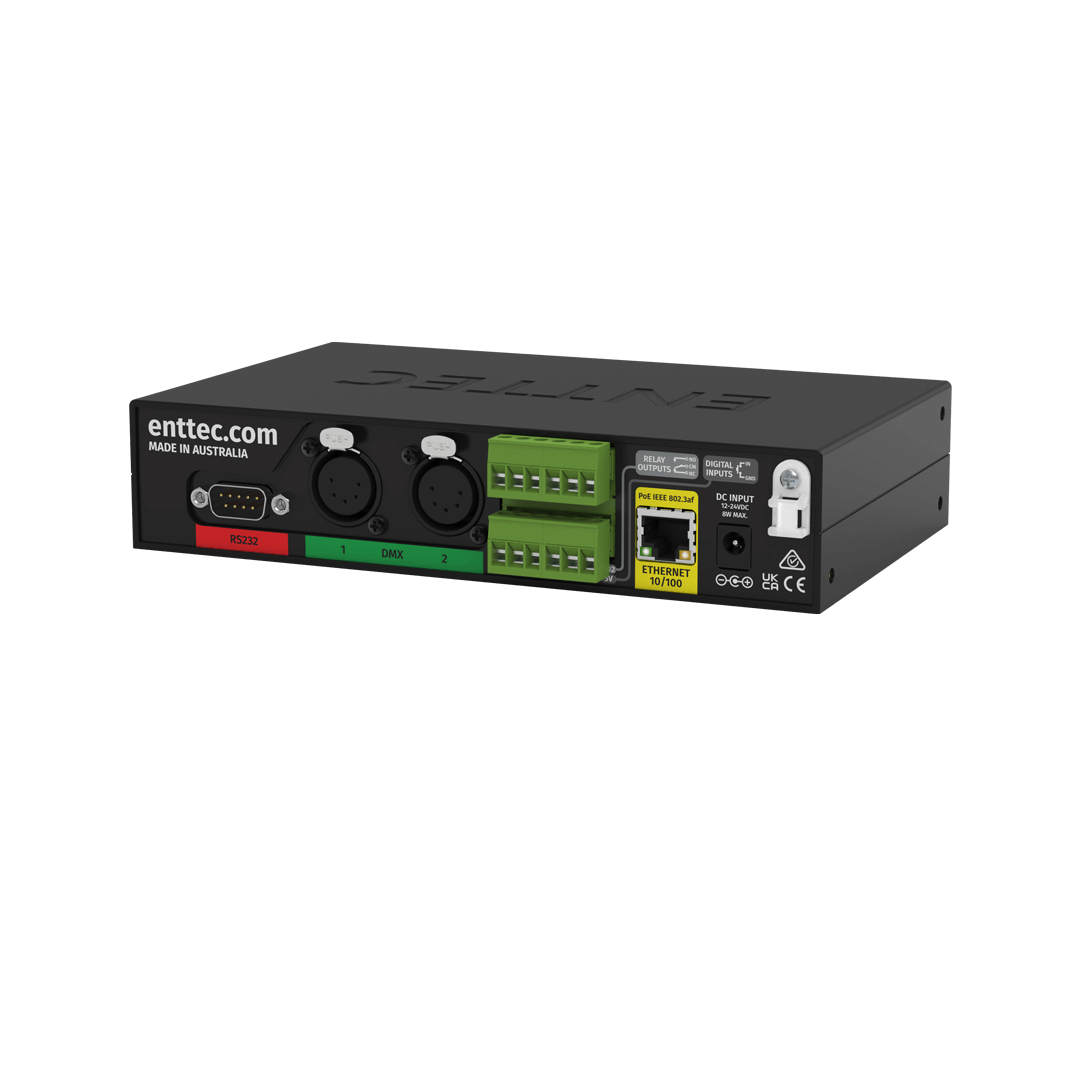

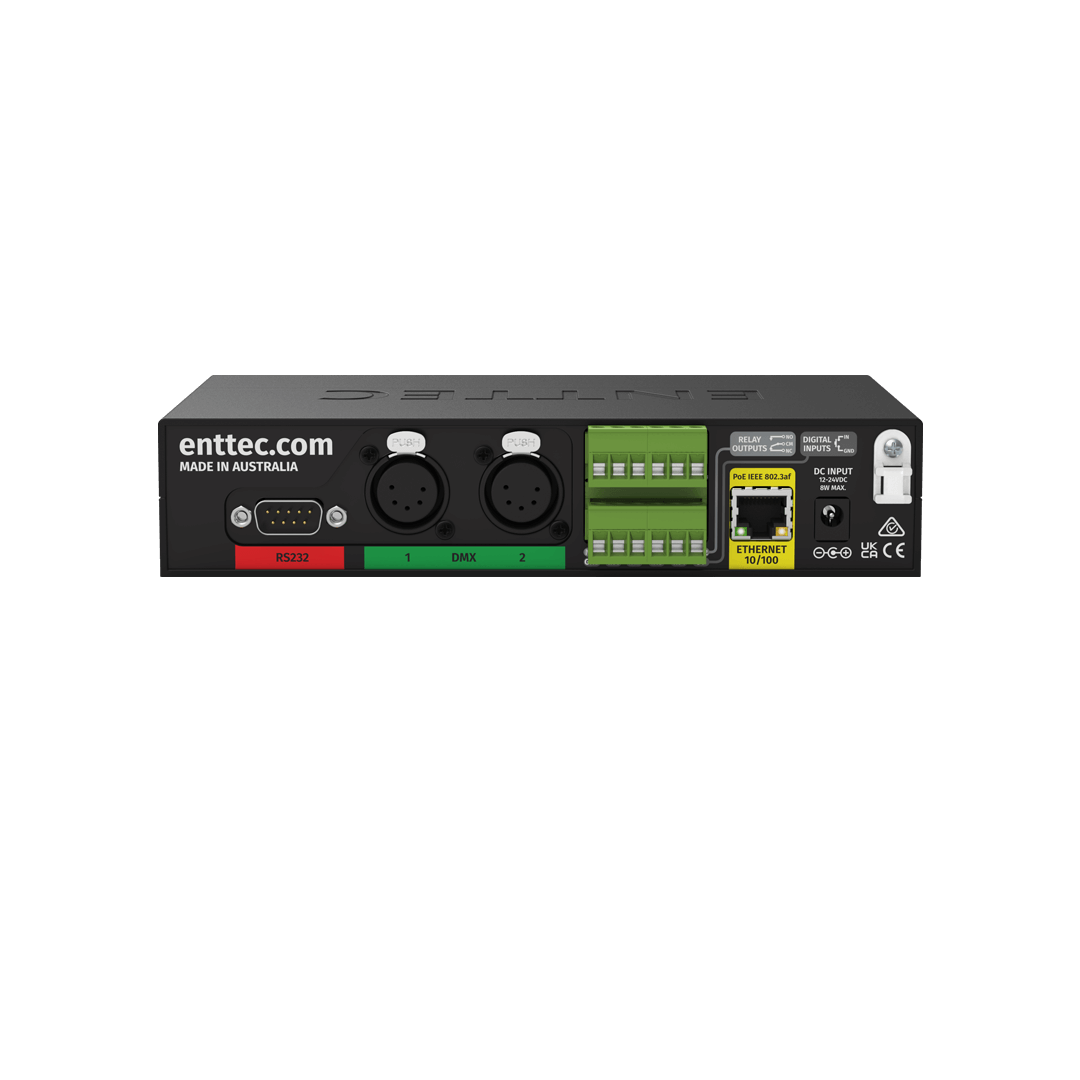

DMX port	2 x 5-pin XLR (female)
Digital input	4 digital inputs + 1 GND + 1 5V (6-pin screw terminal)
Relay	2 x relay 6-pin screw terminal (max limits, 50V DC or 60W)
Internal show storage capacity	8GB (~10 hours of 32 universes at 44fps)
Expandable storage / external memory	Removable USB + Micro SD card

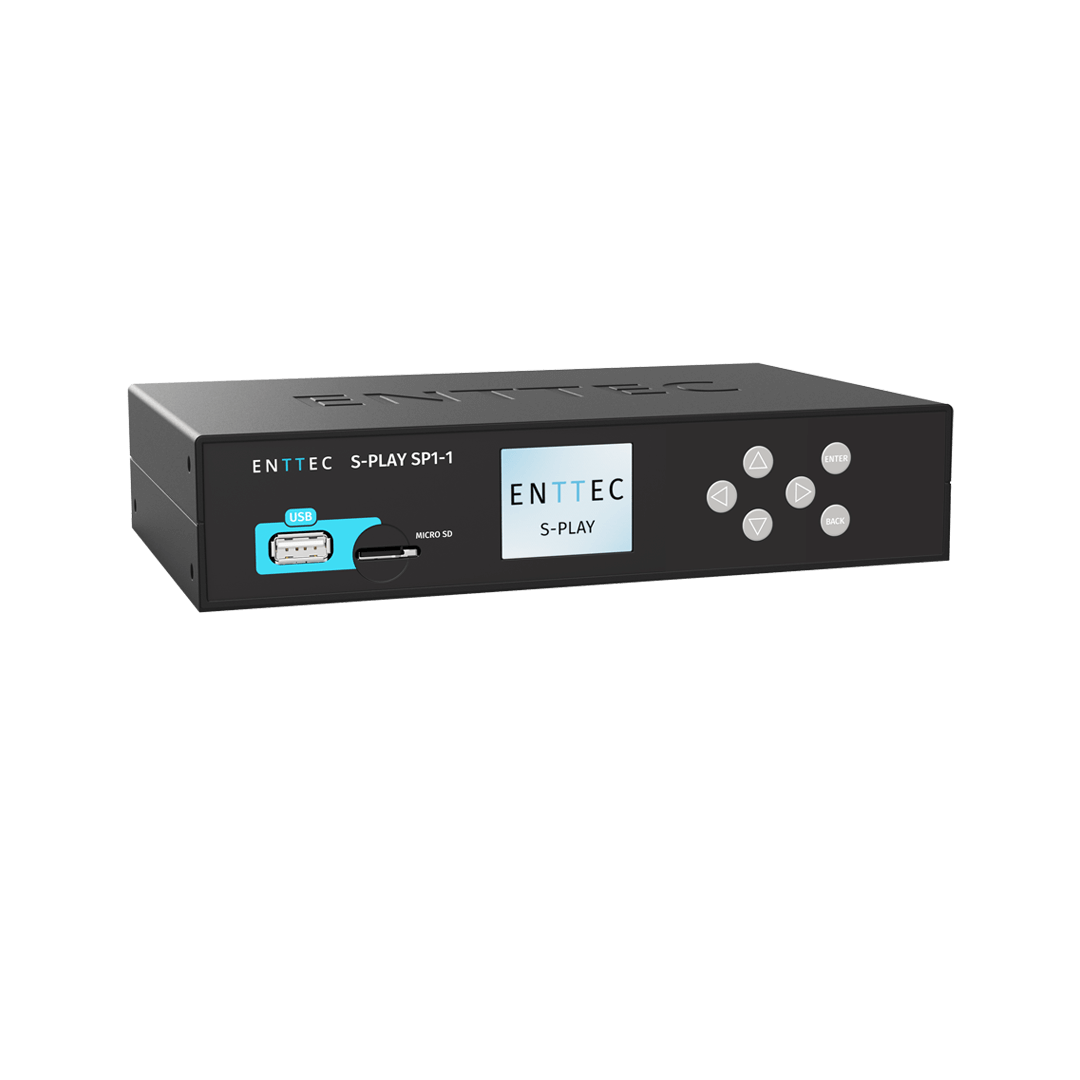

LCD + buttons	Yes
Factory reset	Web interface / LCD menu

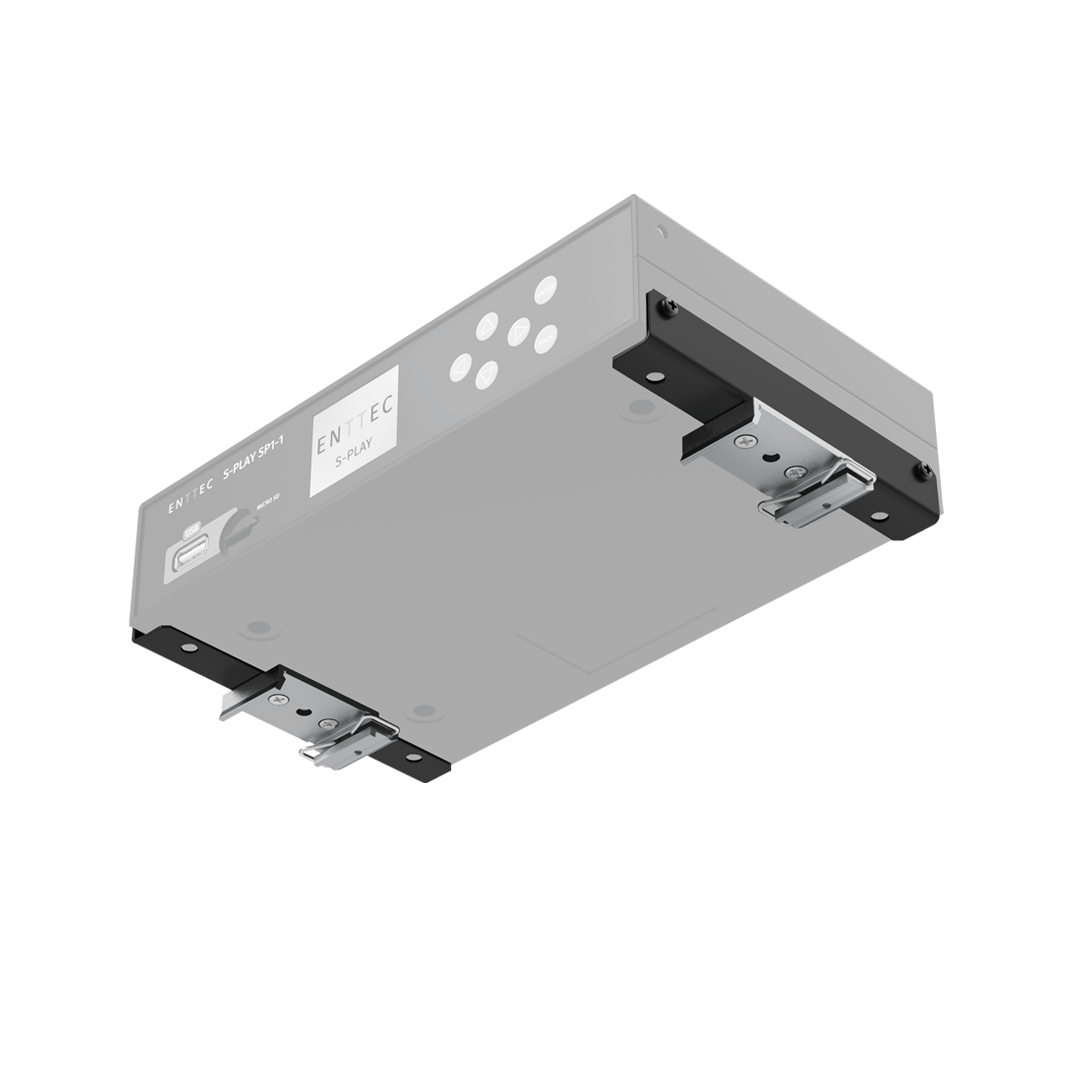

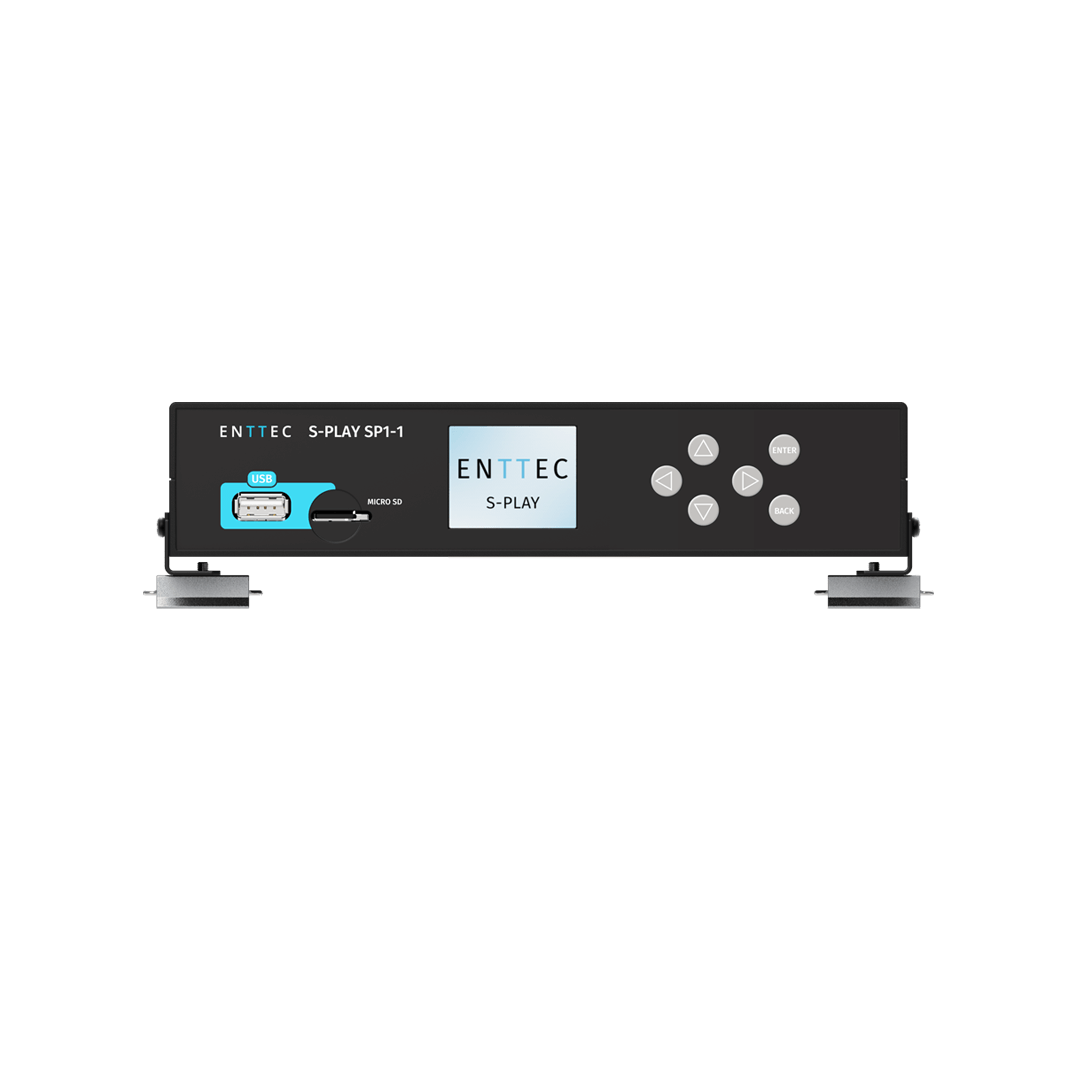

Mounting	Rack, surface & TS35 DIN rail mountable (ears, clips & screws included)
IP rating	IP20
Environmental operating temperature	0°C to 50°C / 32°F to 122°F
Environmental operating humidity	0 to 95% (non-condensing)
Cooling method	Convection
Body material	ABS plastic & anodised aluminium
Unit dimensions	200mm x 120mm x 42 mm
Unit weight	0.47kg / 1.04lbs
Shipping dimensions	335mm x 265mm x 78mm
Shipping weight	1.20kg / 2.65lbs
Compliance	RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)
Warranty	3-year return to base manufacturer warranty

Software

DMX universe playback	2U (1024 channels of USITT DMX512-A)
Art-Net / sACN universe playback	32U (16,384 channels)
Max refresh rate (FPS)	Art-Net & sACN: 60 / USITT DMX512-A: 44
Max playlist count	200
Max cue track per playlist	4
Max Cues (including Static, Dynamic and Effect)	200
Max Triggers	200
Max Events	200
Max custom interface	10
OSC API	Yes
HTTP API	Yes
Scheduler	Yes
Remote access	Yes
Multi-sync	Yes

Resources

S-PLAY SP1-1 data sheet

S-PLAY SP1- 1 user manual

S-PLAY SP1-1 specification

S-PLAY SP1-1 drawing + dimensions

S-PLAY SP1-1 hi-res images (27.4 mb)

S-PLAY Firmware v2.2.2

S-PLAY SP1-1 release notes

S-PLAY SP1-1 HTTP API

S-PLAY SP1-1 OSC API

S-PLAY SP1-1 TouchOSC guide

S-PLAY SP1-1 remote access guide

S-PLAY SP1-1 EN-Case installation guide

S-PLAY knowledge base

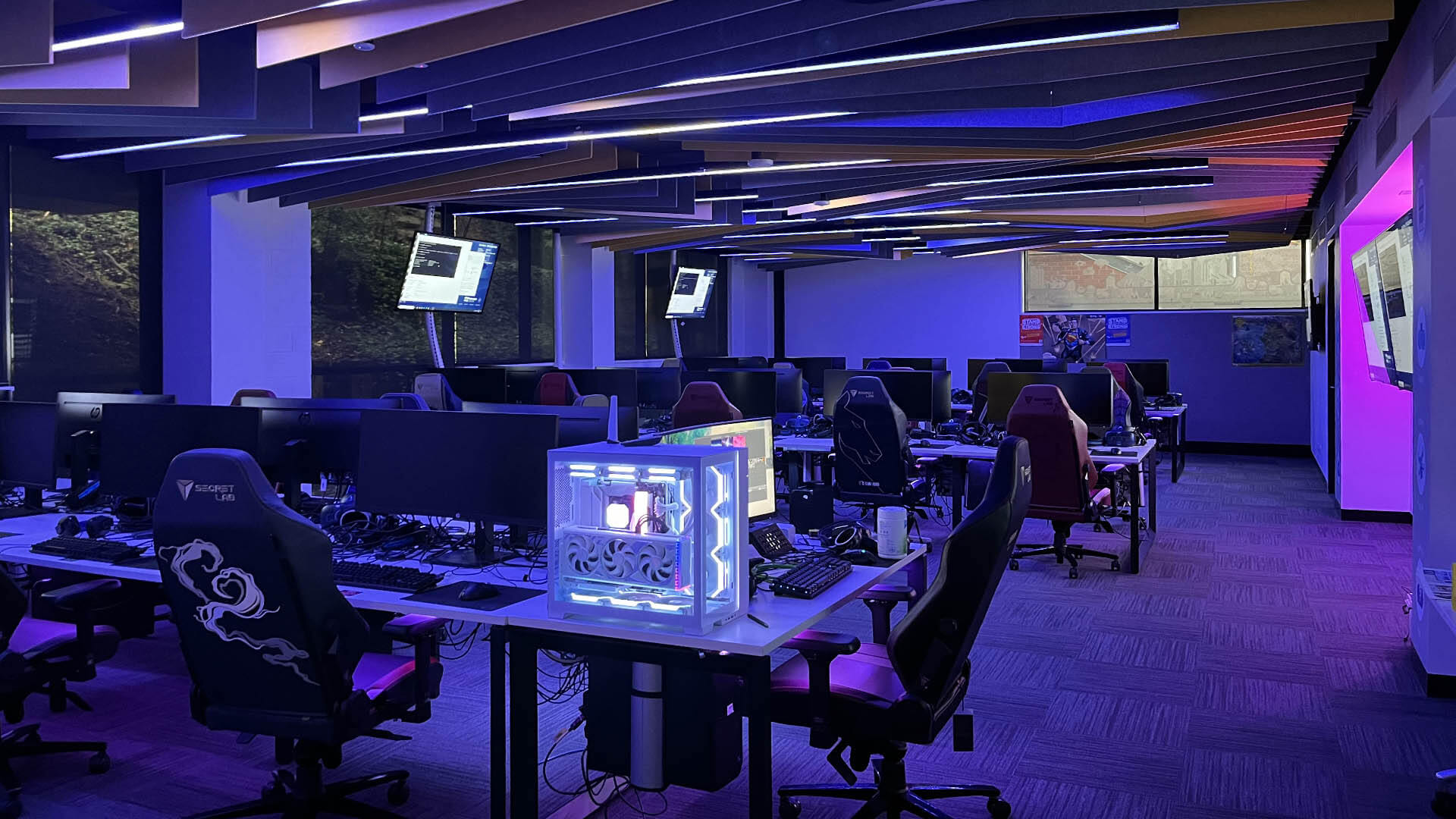

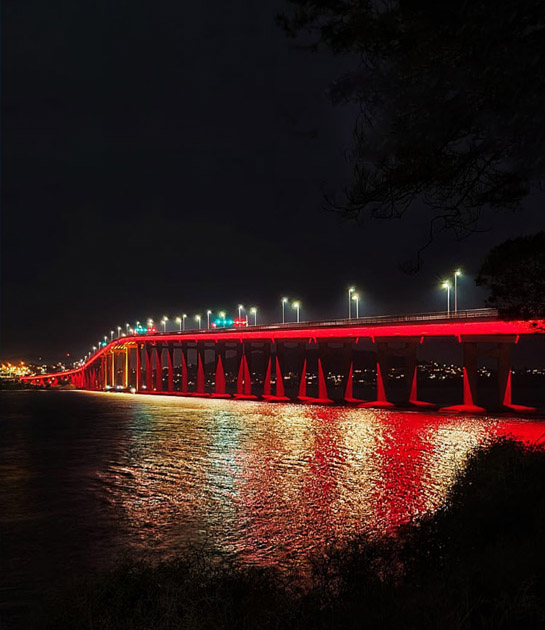

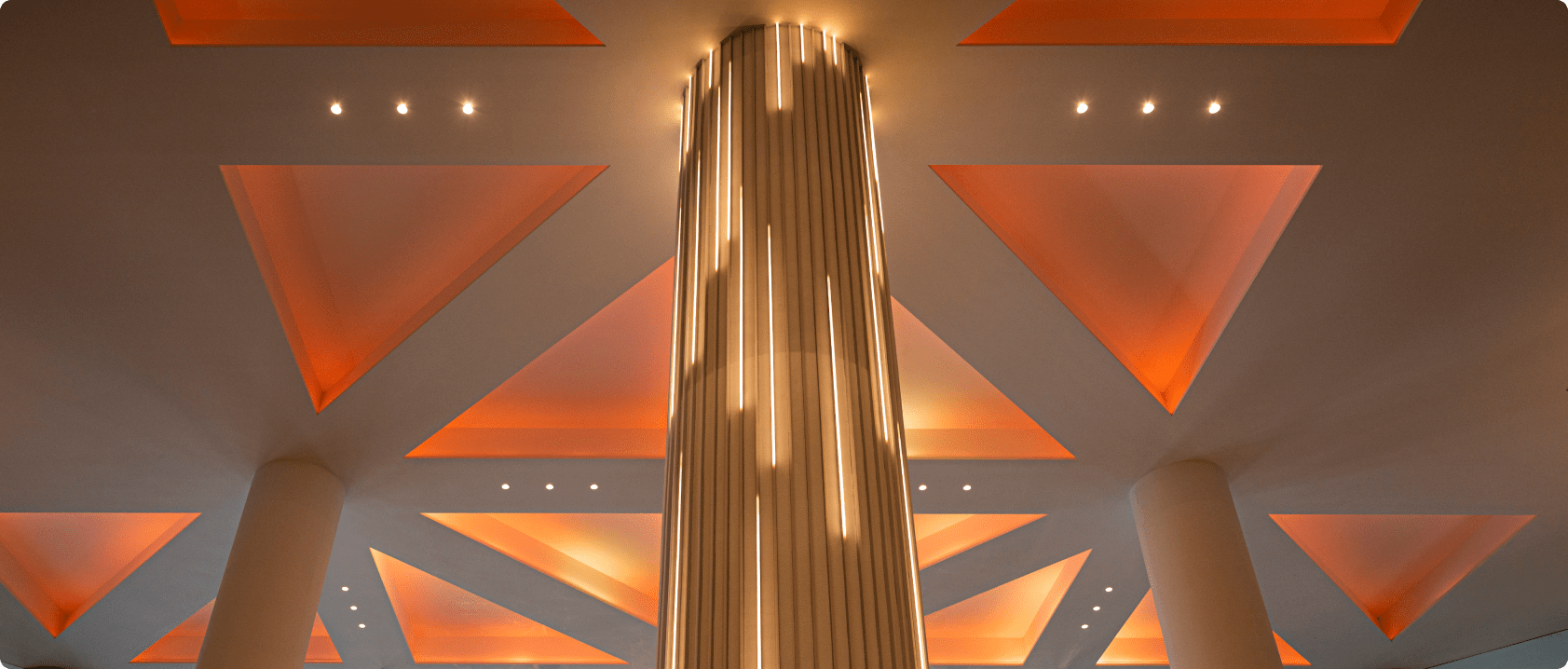

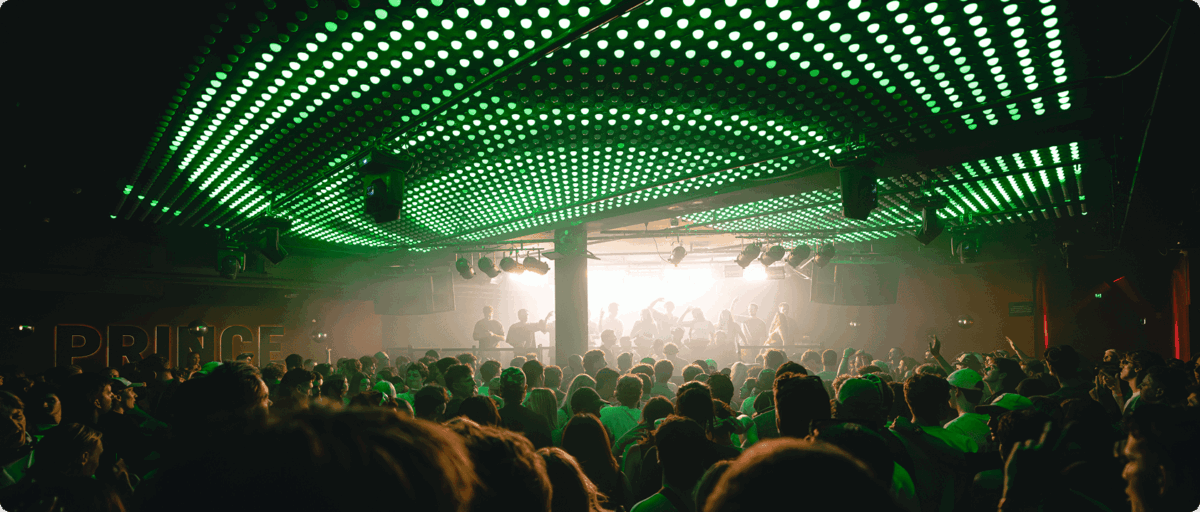

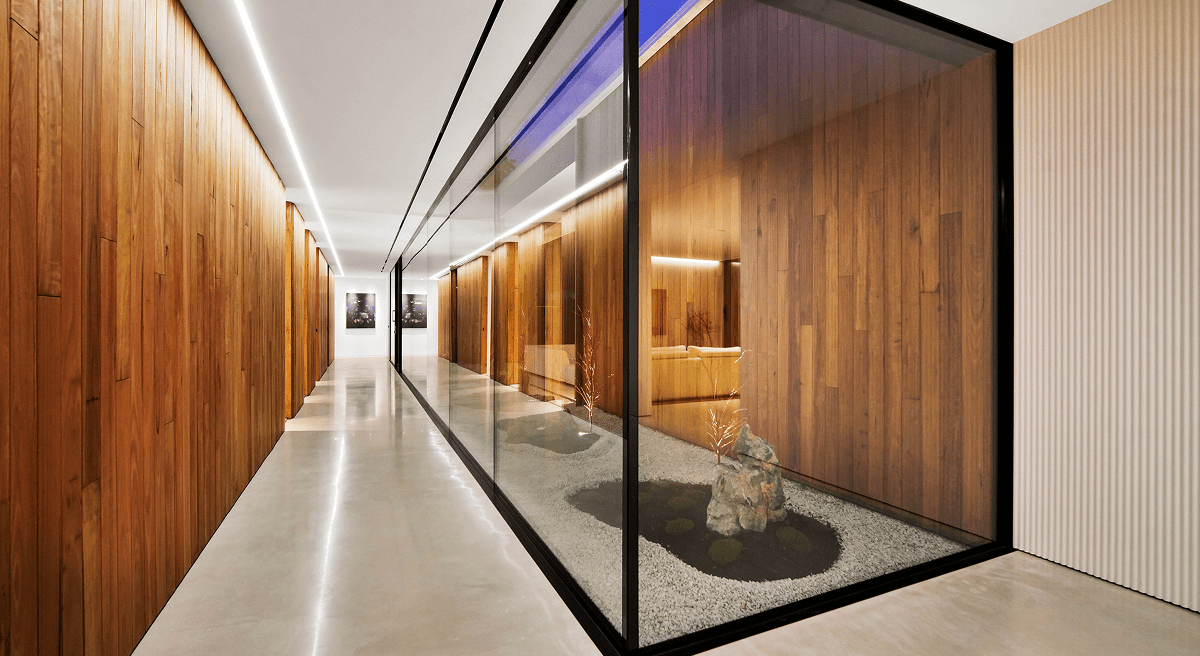

Projects Featuring the S-PLAY SP1-1
