12V RGB 60-LEDs/m pixel strip

12V individually-controllable 60 pixel/m RGB pixel strip with black or white PCB. 5m roll.

SKU: 8PXA60-RGB-12V

Overview
Features
Specifications
Resources

12V RGB LED pixel strip for professional applications.

ENTTEC’s 8PXA60-RGB-12V series are 12V, 60-LED-per-metre, addressable RGB LED pixel strips designed for professional architectural and entertainment purposes, achieving soft pastels or saturated colours on a large scale.

ENTTEC LED pixel strip boasts 60 colour-calibrated RGB LEDs per metre. Each LED is engineered to offer consistent brightness and extended colour gamut.

Join two lengths together or cut them into a smaller length. You can also operate the tape from up to 300m away using the ENTTEC PLink system. This tape is recommended for indoor use only.

With a maximum power consumption of only 7.2 watts per metre, and a lumen capacity of 188.2 lumens per metre, this 12V pixel strip provides a bright and efficient package.

Each pixel can achieve a 24-bit, True Colour display. That’s a whopping 16,777,216 possible colours for each LED chip.

Designed by ENTTEC for reliable operation in the Australian environment, our professional quality pixel strips use superior thickened copper tracks to reduce the effects of voltage drop and to allow a more even intensity along the length of the strip.

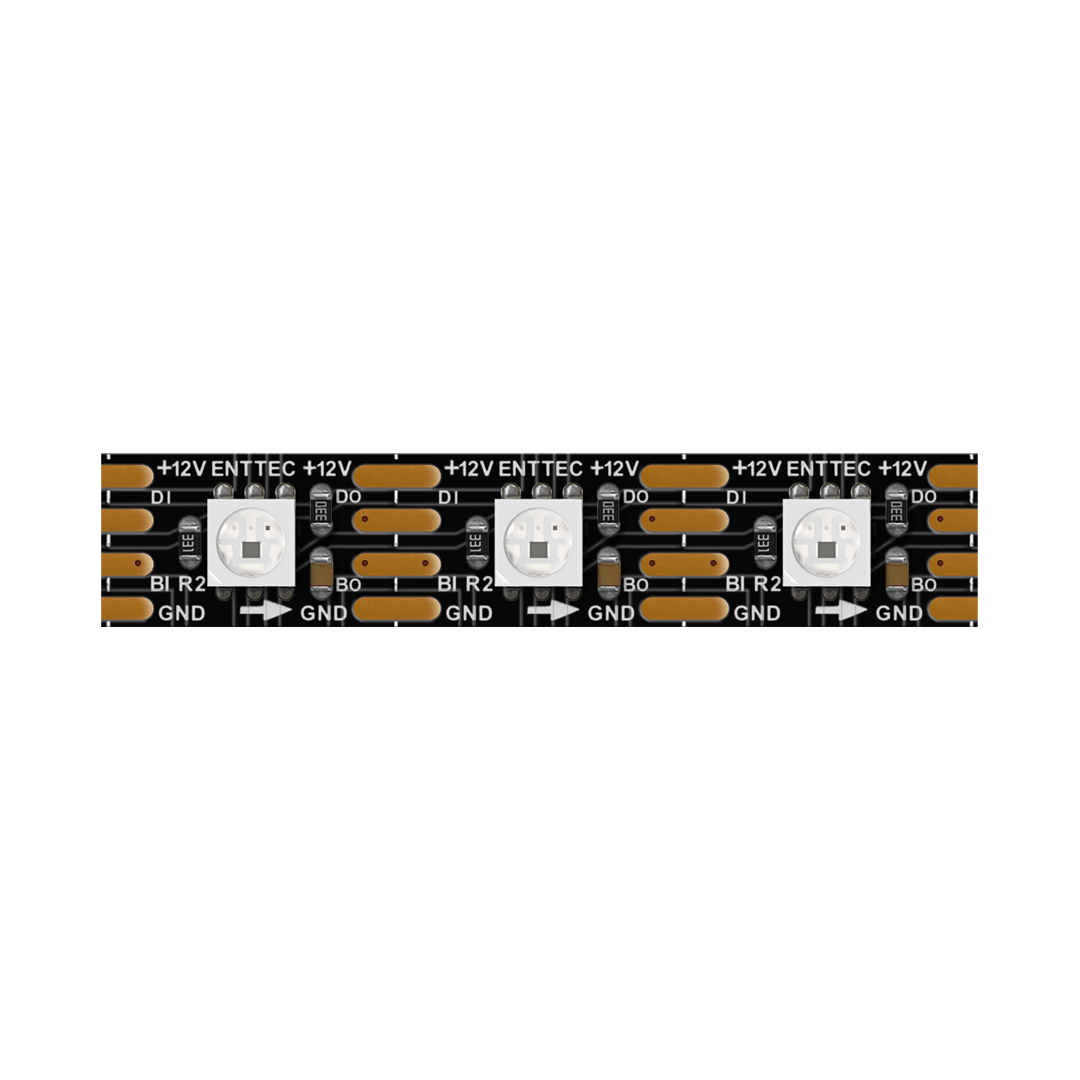

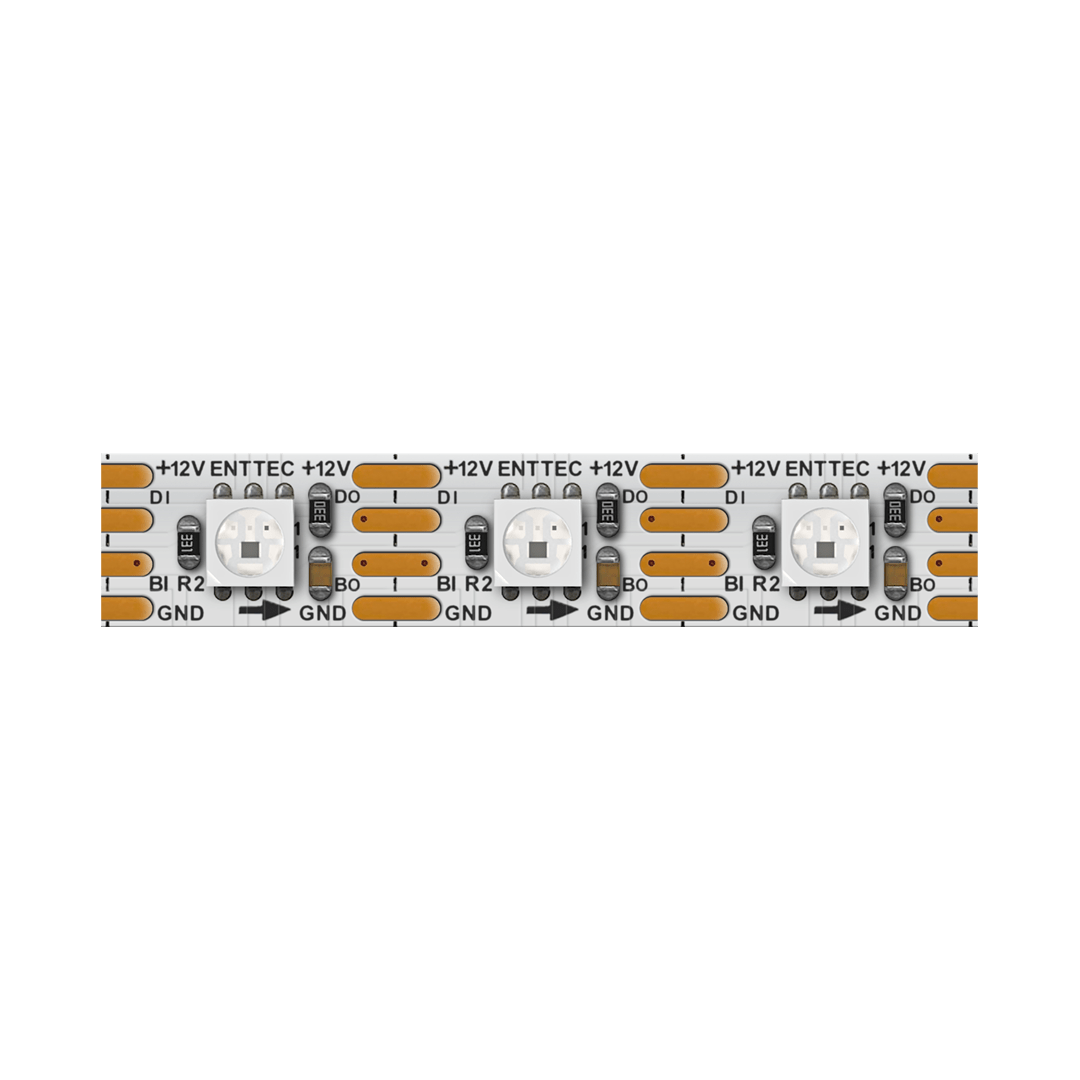

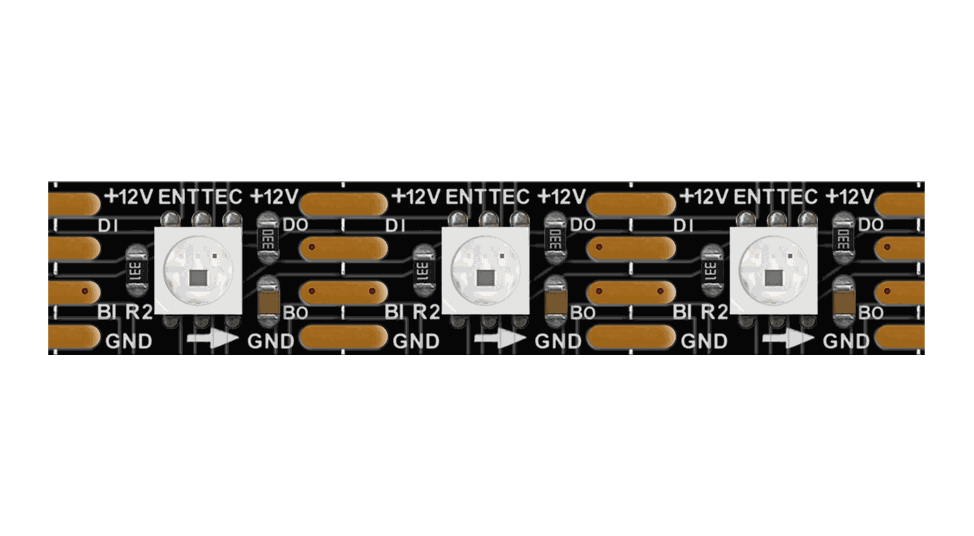

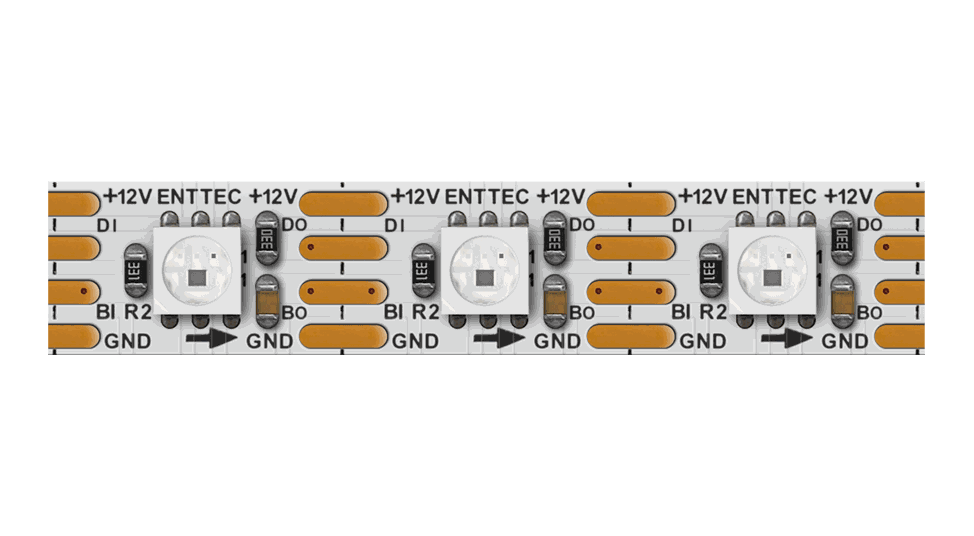

A black printed circuit board is a great way to minimise external light reflection and conceal the workings of your installation. Alternatively, a white PCB can leave your installation looking slick and clean. Simply pick whichever one best suits your needs.

Is this the right LED strip for your project?

With such a variety of LED strips available, it can be easy to get confused as to which strip might be best suited for your requirements.

Check out this video to learn about all the main considerations you need to take into account, such as CV strip v pixel strip, voltage, protocols, RGB v RGBW, pixels per metre, PCB colour, and more.

If you’re still unsure after viewing, don’t panic – we’re always here to help you at ENTTEC. Get in touch with us and we’ll point you in the right direction!

Specifications

Connectors	2 x 4-pin JST SM connectors (3A Max)
Input voltage	12V
Max. watts per metre	7.2
Efficacy (lumens per watt)	26.14
DMX channels per pixel	3
Beam angle	120°
Control protocol	SK6813 (compatible to WS2812 and GS8208B protocol)
Backup data line	Yes
Pixel mapping order	RGB

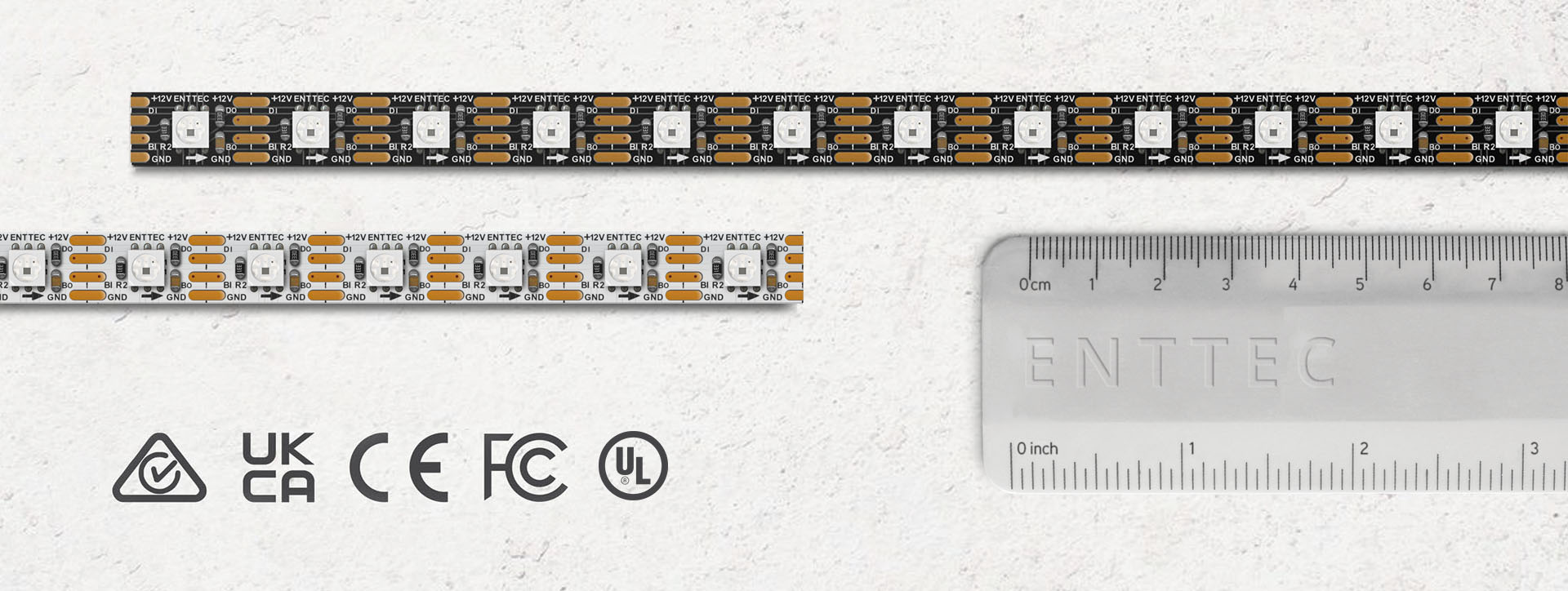

PCB colour	Black or white options

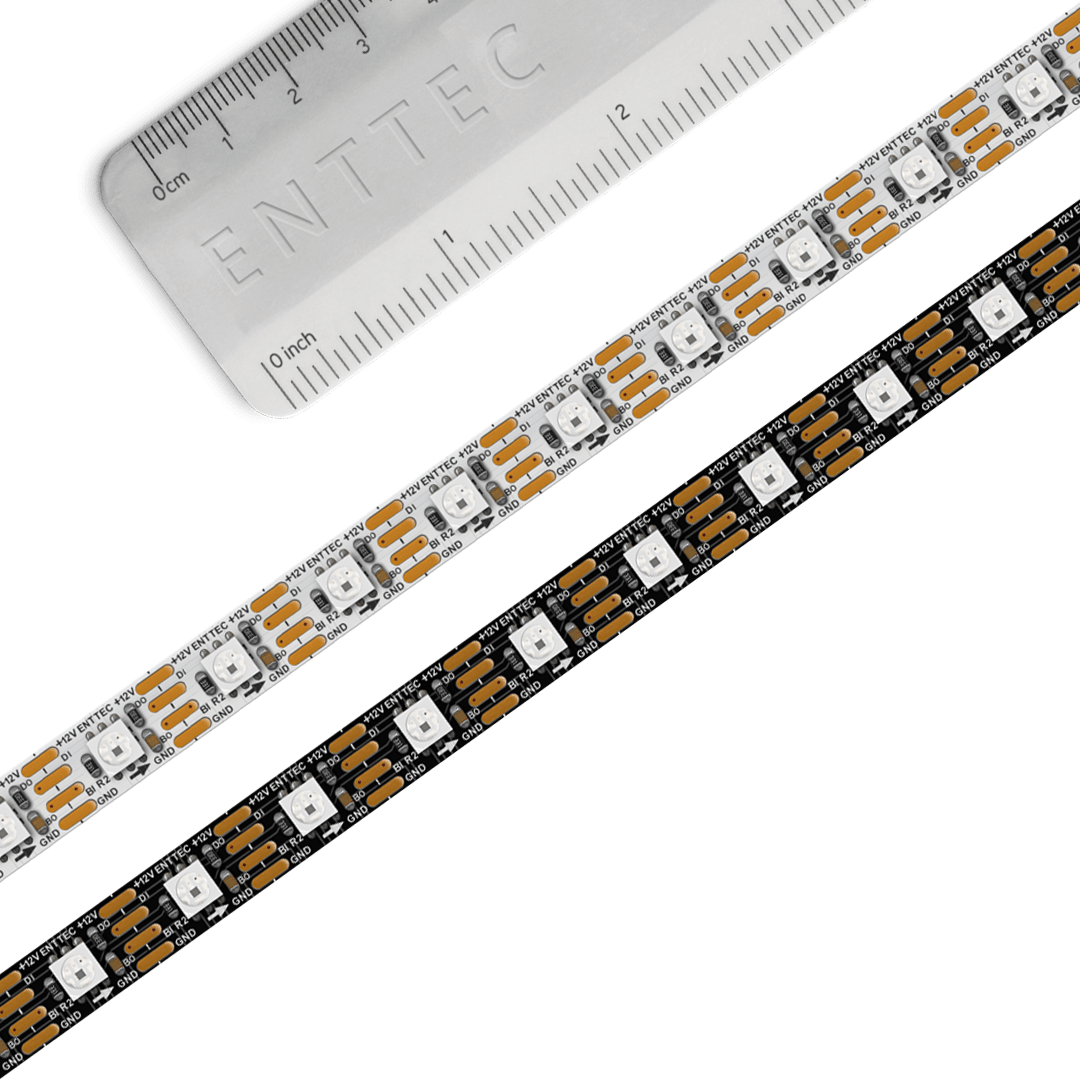

PCB width	10mm / 0.40”
Min. bend radius	30mm / 1.2”
Spacing between cuttable sections	16.6mm / 0.66”
IP rating	IP20
Environmental operating temperature	0°C to 50°C / 32°F to 122°F
Environmental operating humidity	5- 95% (non-condensing)
Weight	(5m roll) 0.18Kg / 0.40lbs
Dimensions	(5m roll) 240 x 215 x 16mm / 9.45 x 8.47 x 0.63”
Shipping weight (5-roll carton)	0.80Kg / 1.76lbs
Shipping dimensions (5-roll carton)	260 x 225 x 93mm / 10.24 x 10.04 x 3.66”
Warranty	1-year return to base manufacturer warranty
Compliance	RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)
