METAL SMART PXL40 DOT

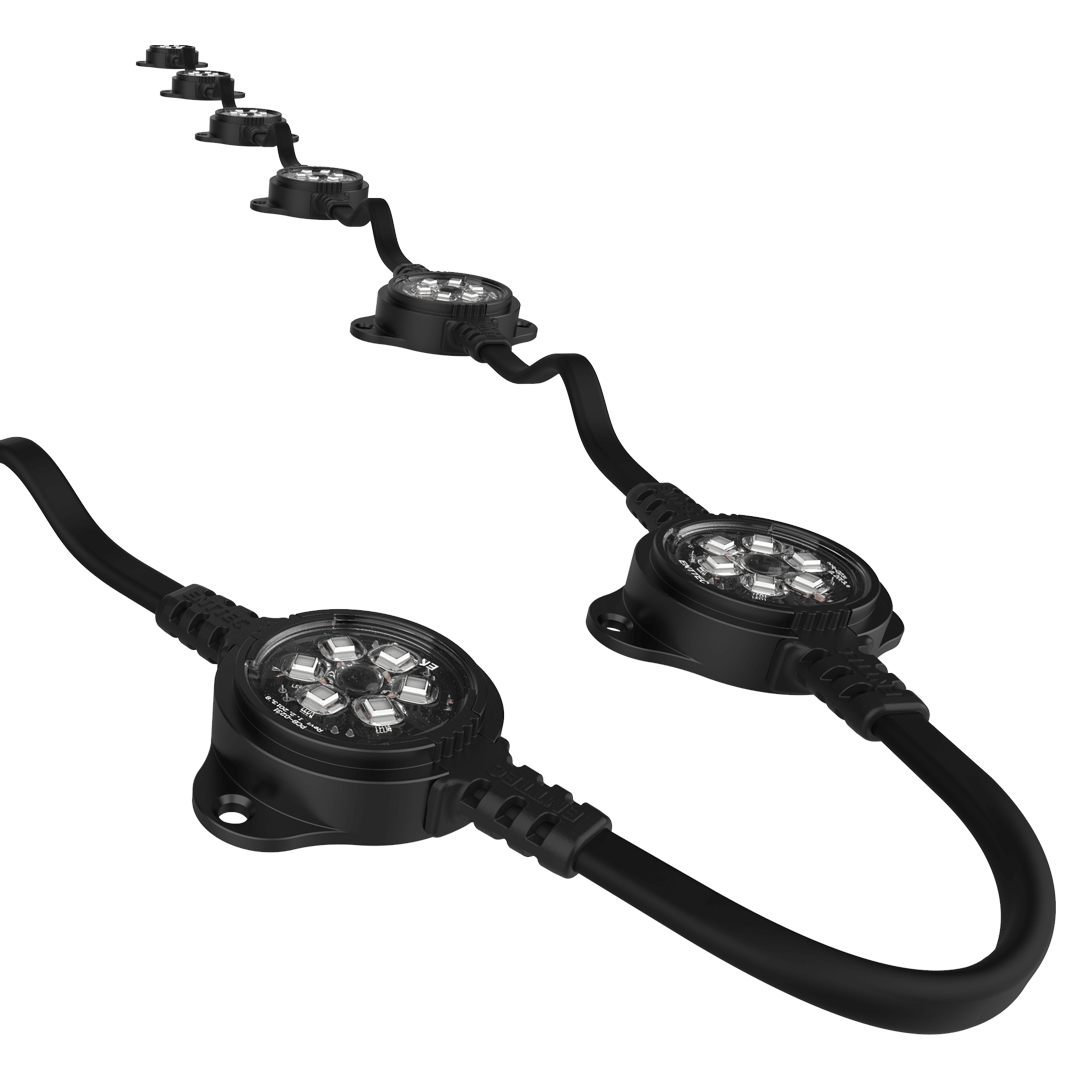

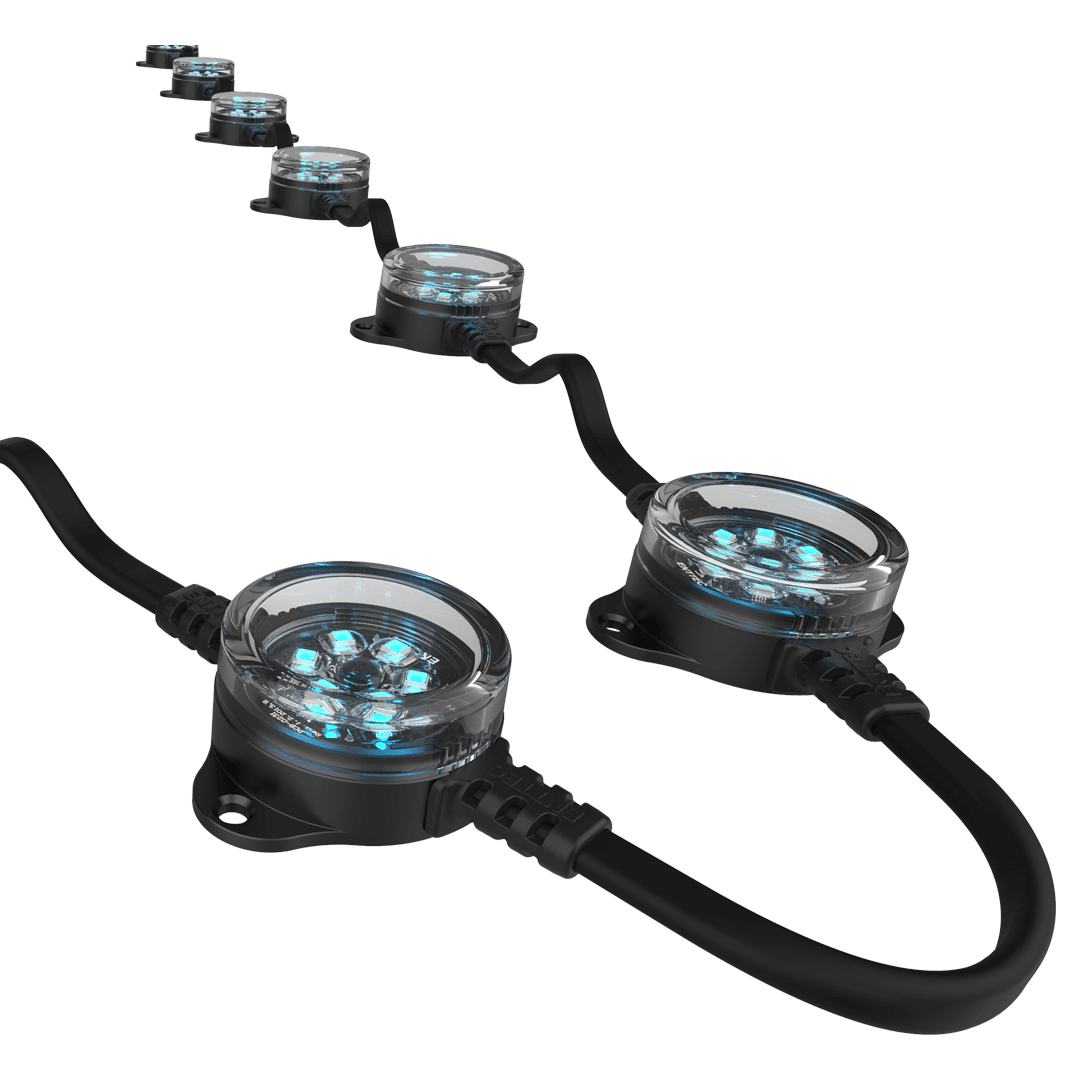

Flexible strings of ultra-bright, high-resolution 41.5mm RGB LED nodes with robust, aluminium cases for all-weather use.
Individually addressable, LED pixel dot lights
ENTTEC’s SMART PXL40 LED pixel dots feature robust, weatherproof UV-resistant PVC cases. For projects requiring metal fixtures, we offer a 41.5mm version made from marine-grade aluminum, machined, and anodized at our Australian HQ. These versatile, easy-to-install RGB dots create striking lighting effects and can be customized for any project. Designed by professionals, they elevate any architectural, commercial, or entertainment space.
Accessories
PXL-40 LED pixel dot accessories
At ENTTEC, we know that well-considered design is key to a successful installation. Our team have created a leading range of innovative accessories with premium cabling and connectors to support your project and make specifying and installing the SMART PXL series simple. For peace of mind, our 24V and 48V accessories also feature different pinouts to prevent damage being caused when using different voltages.
Find more information in the SMART PXL accessories data sheet
Specifications
led channels | RGB (Red/Green/Blue) |
Colour resolution | 16-bit (can also run in 8-bit mode) |
Control protocol | ENTTEC SPXL-8 / SPXL-16 |
Data configuration | auto-addressing |
LED lifetime | 50,000 hrs (L70) |
Body material | machined and anodised 6032 aluminium |

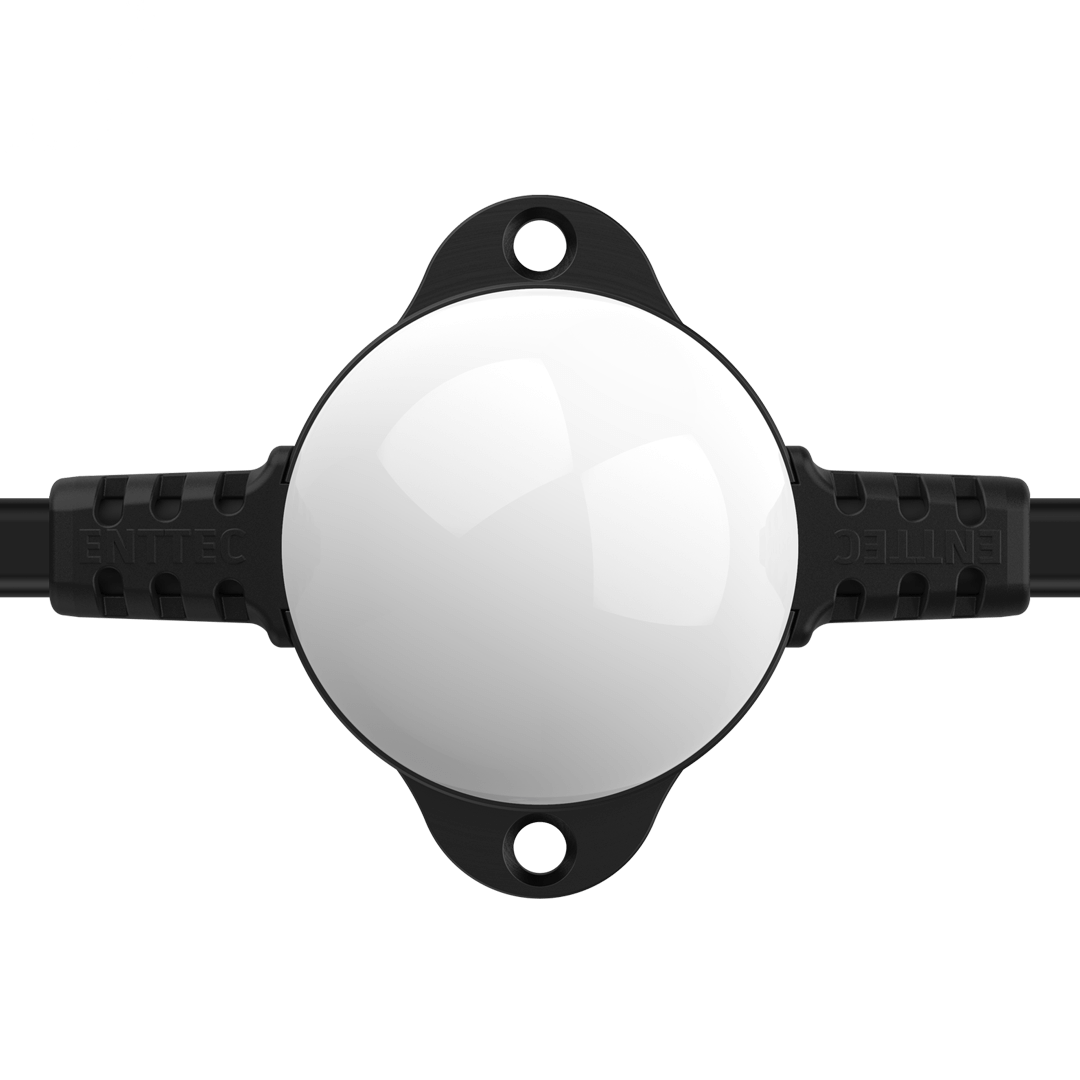

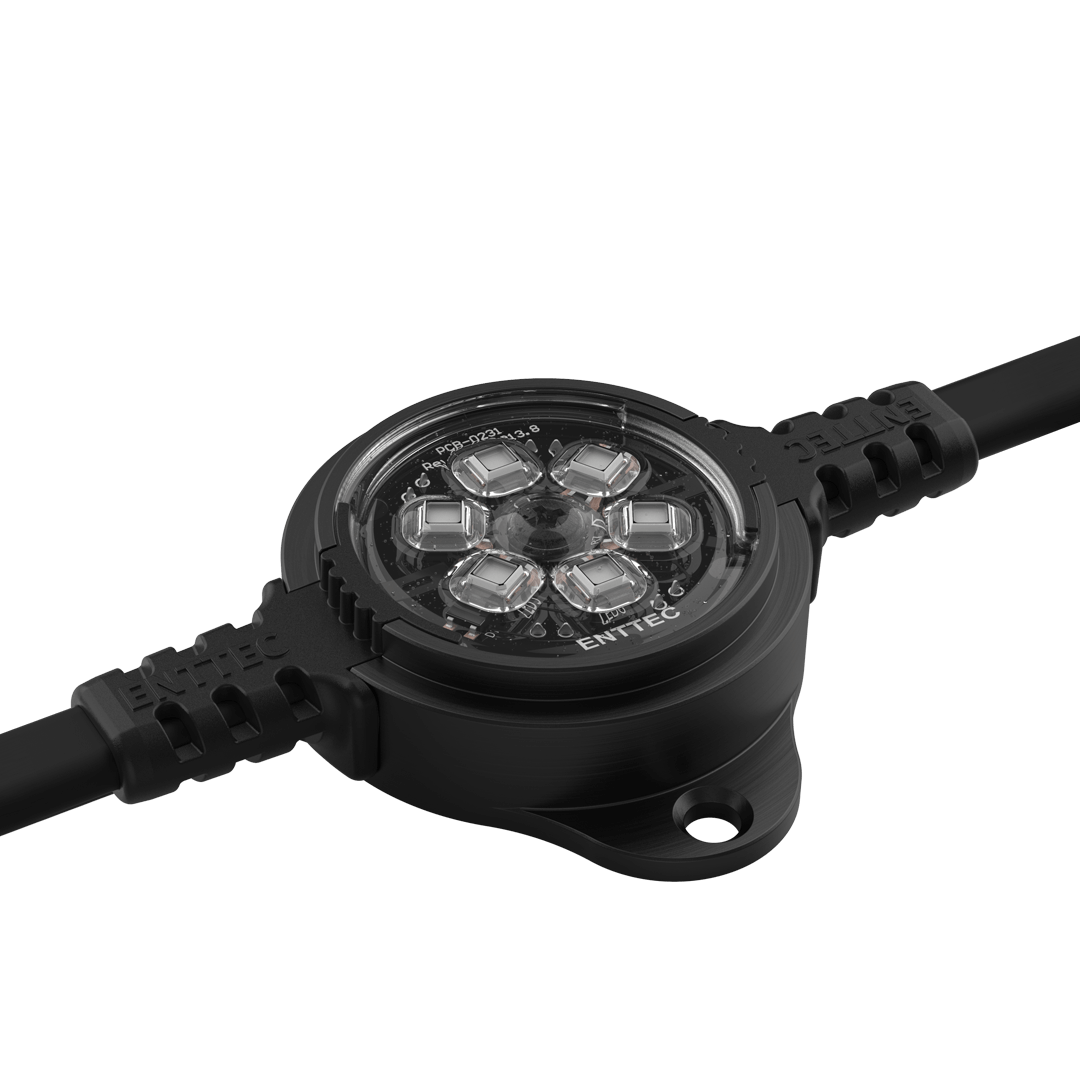

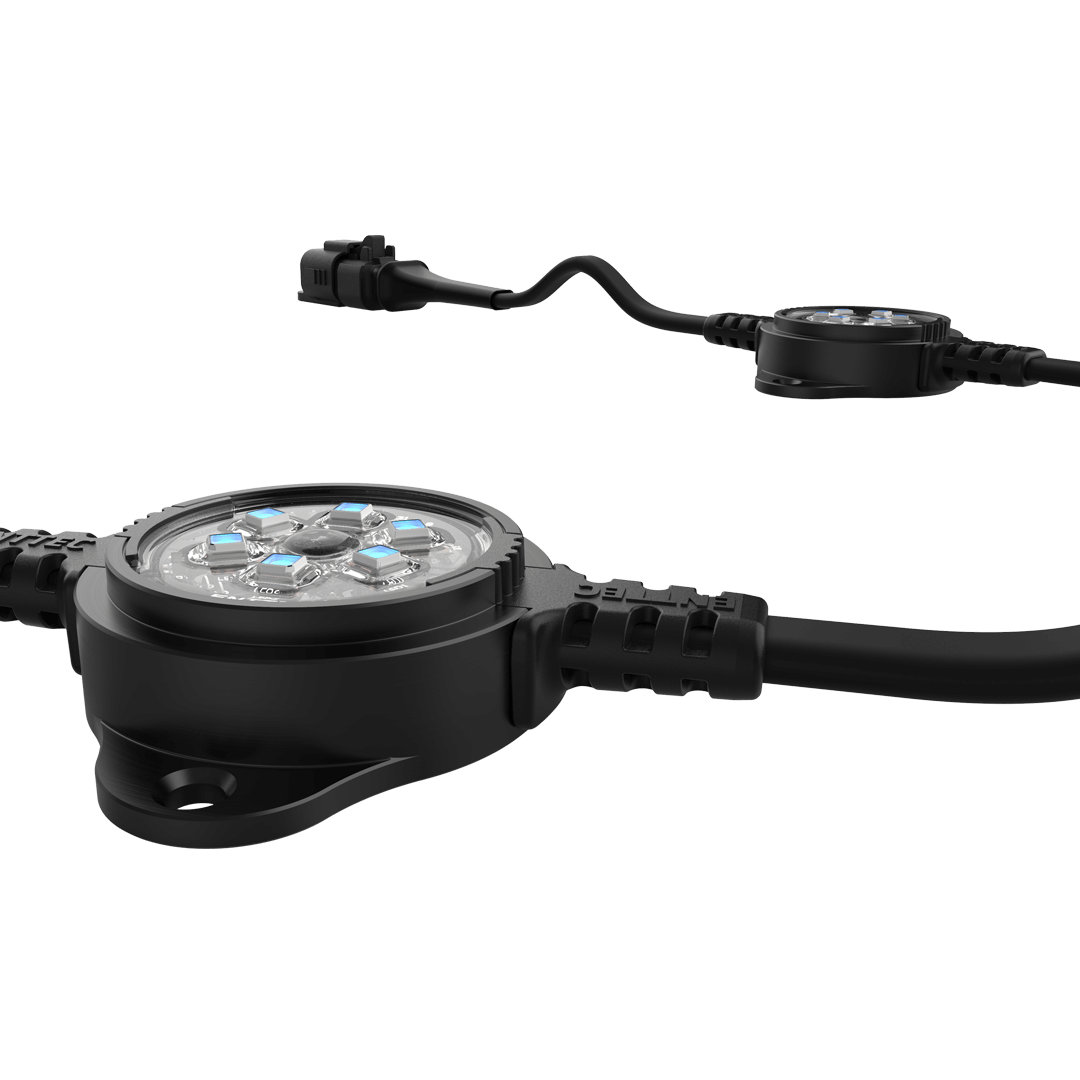

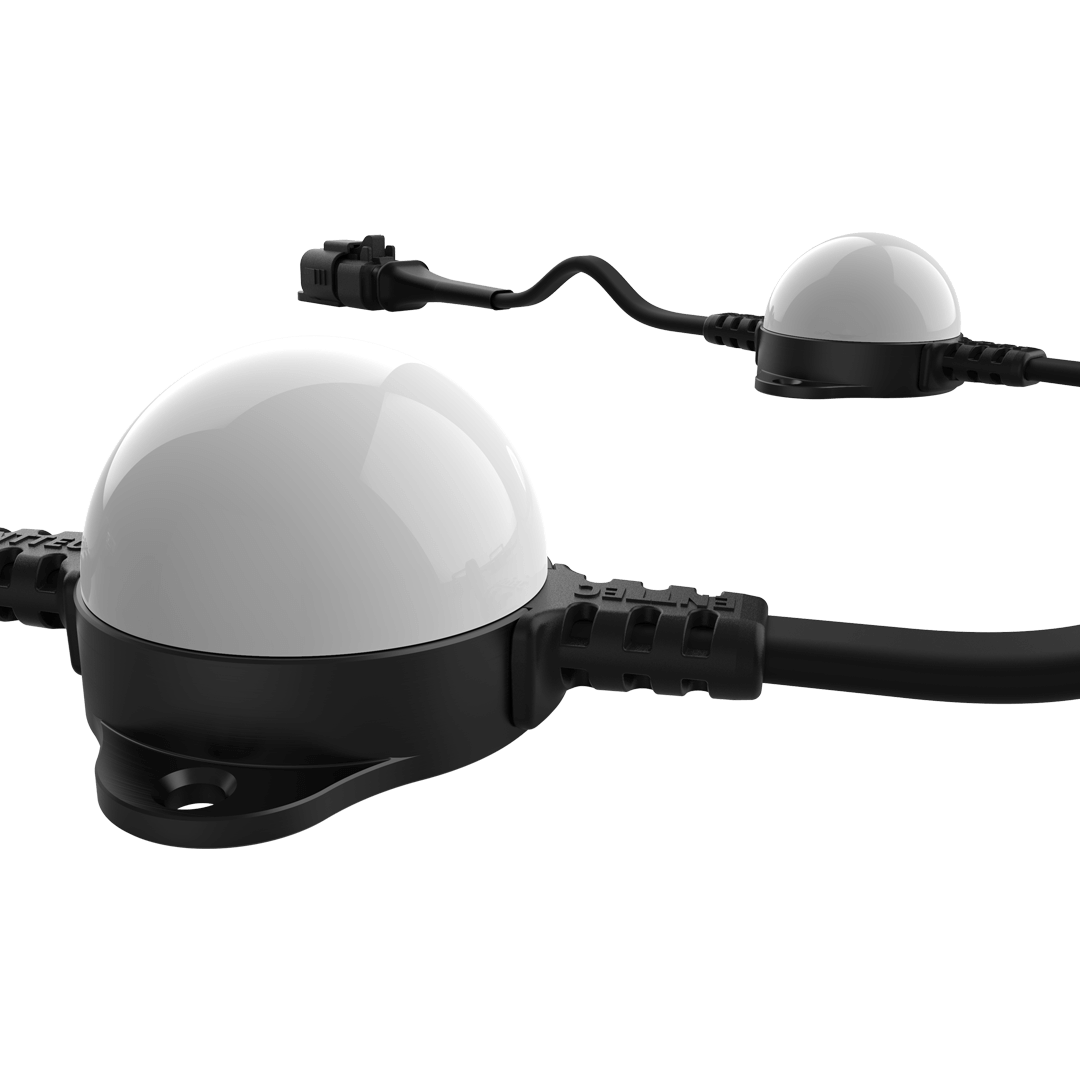

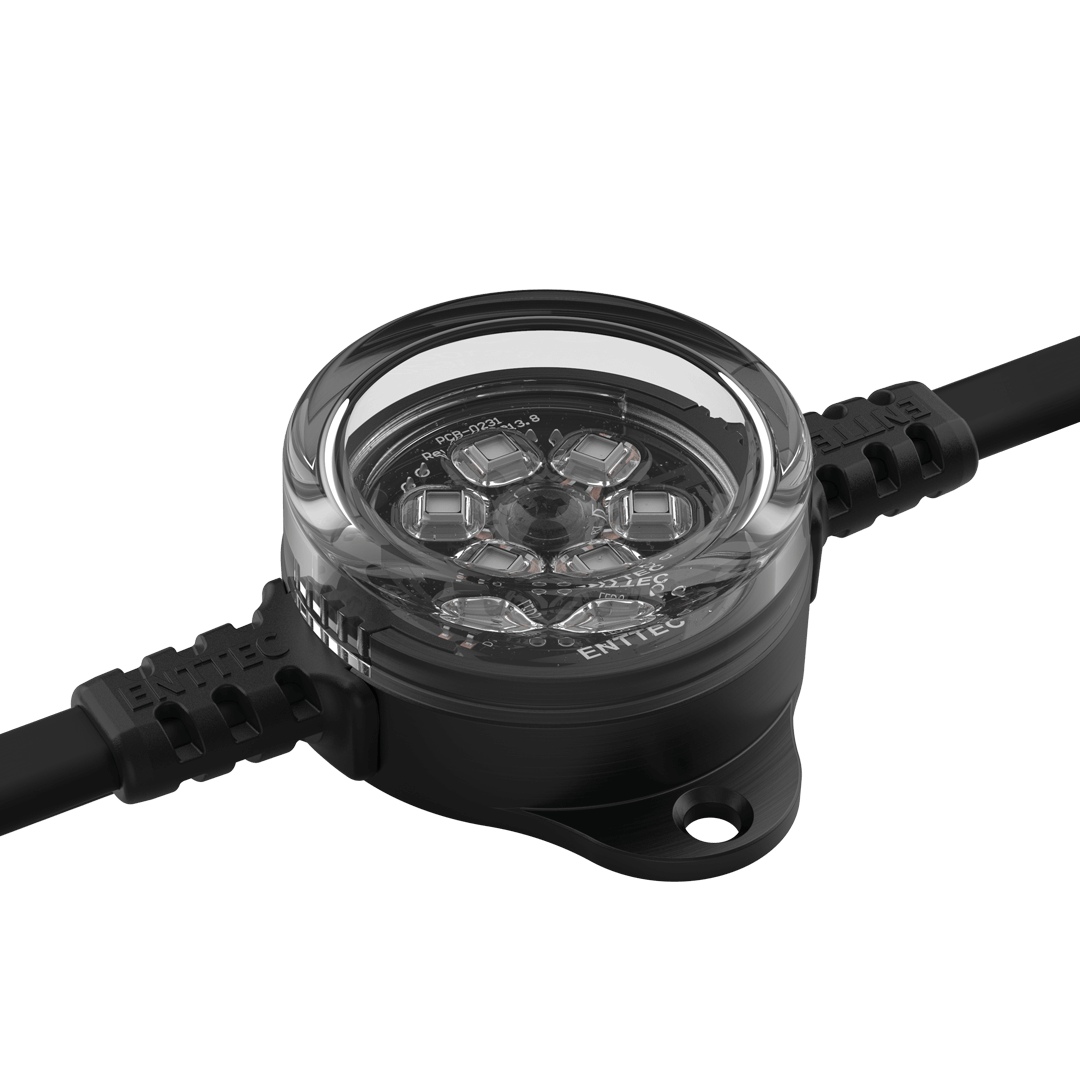

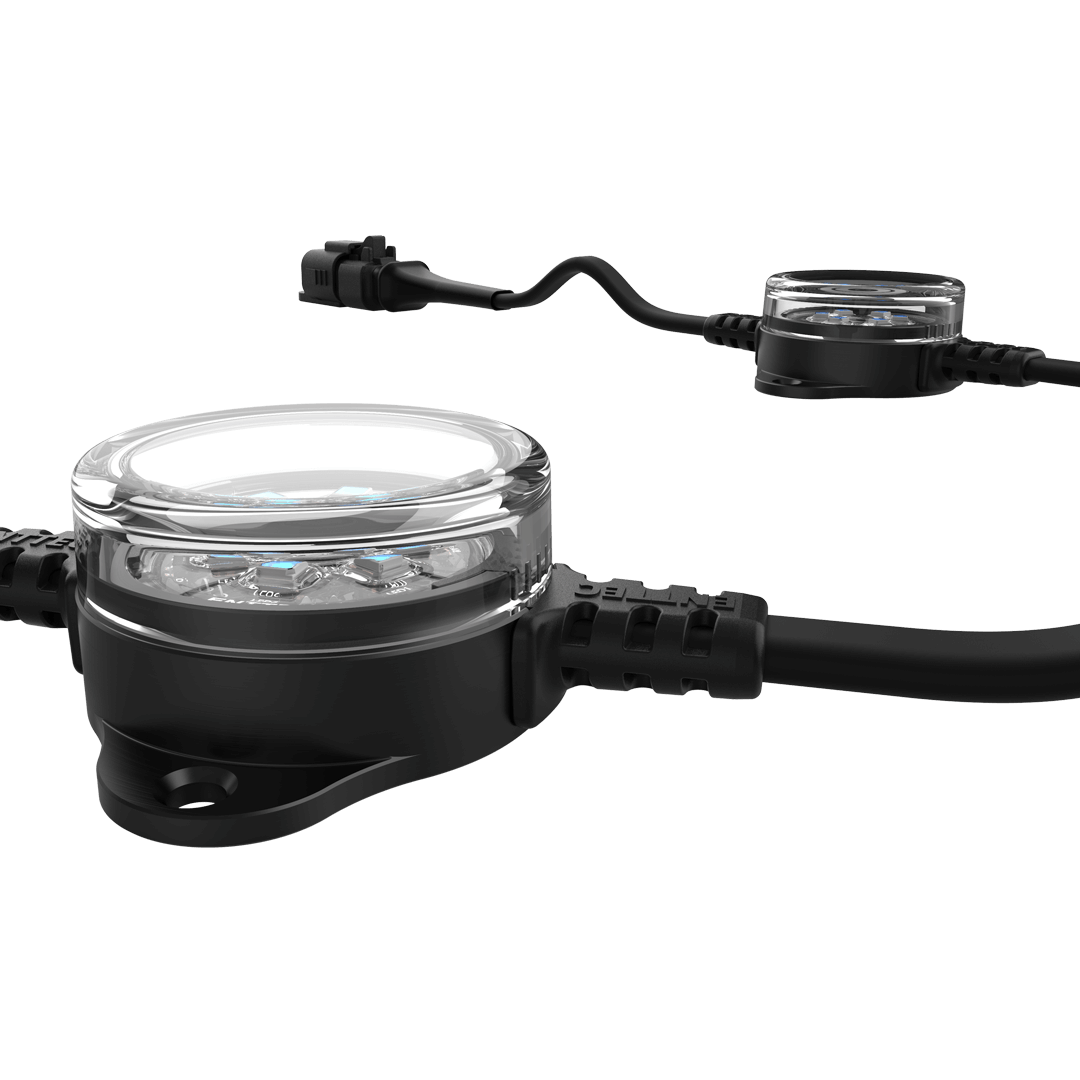

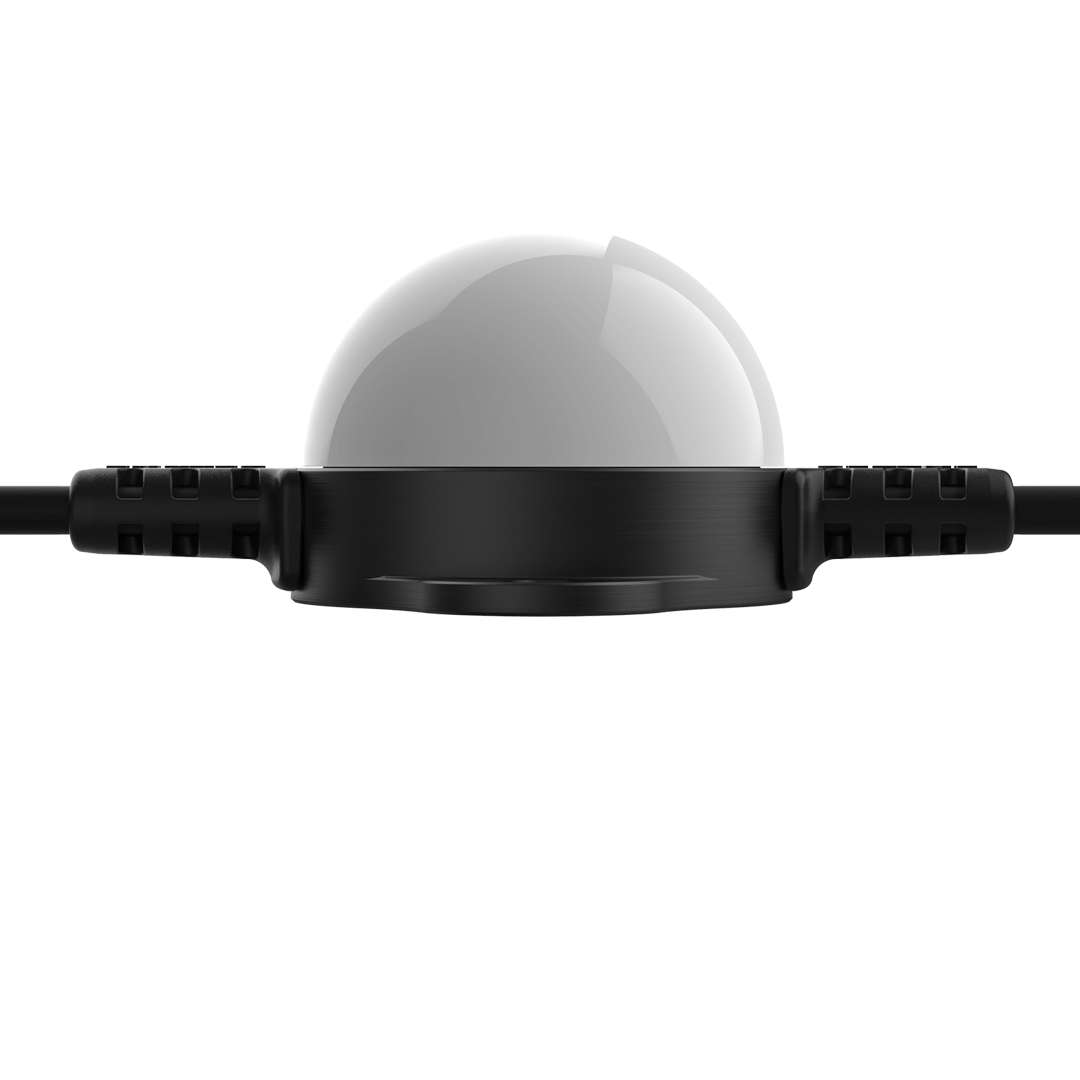

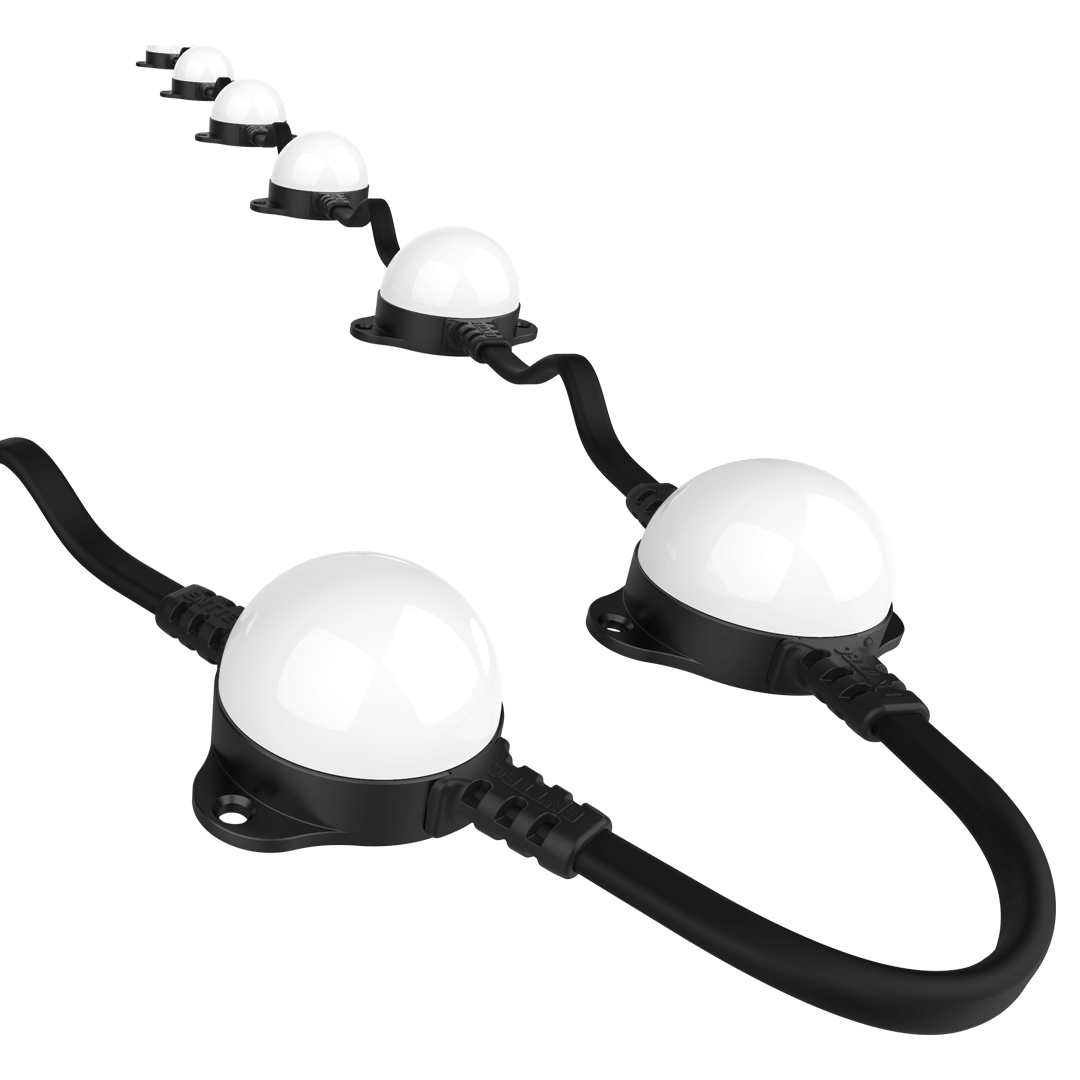

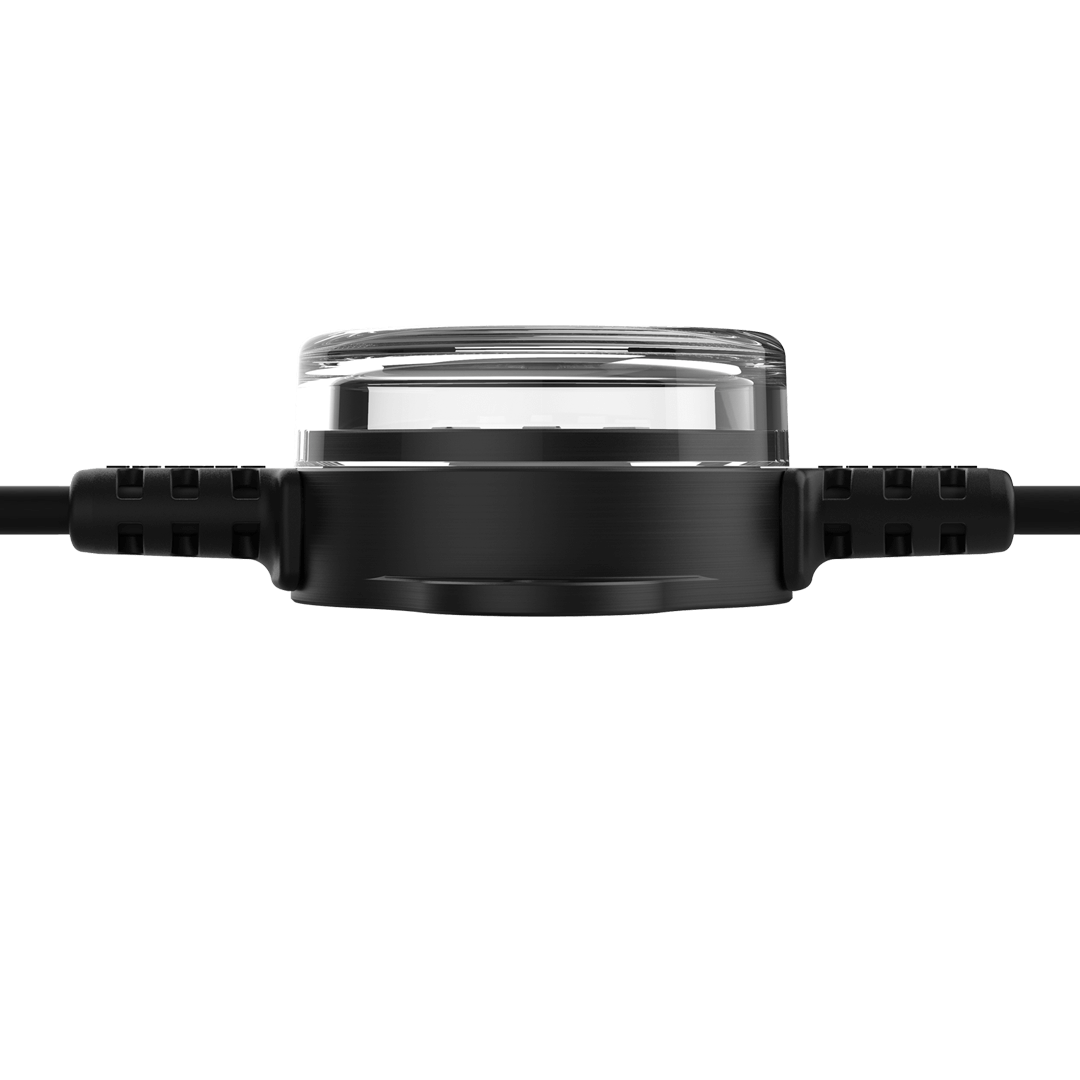

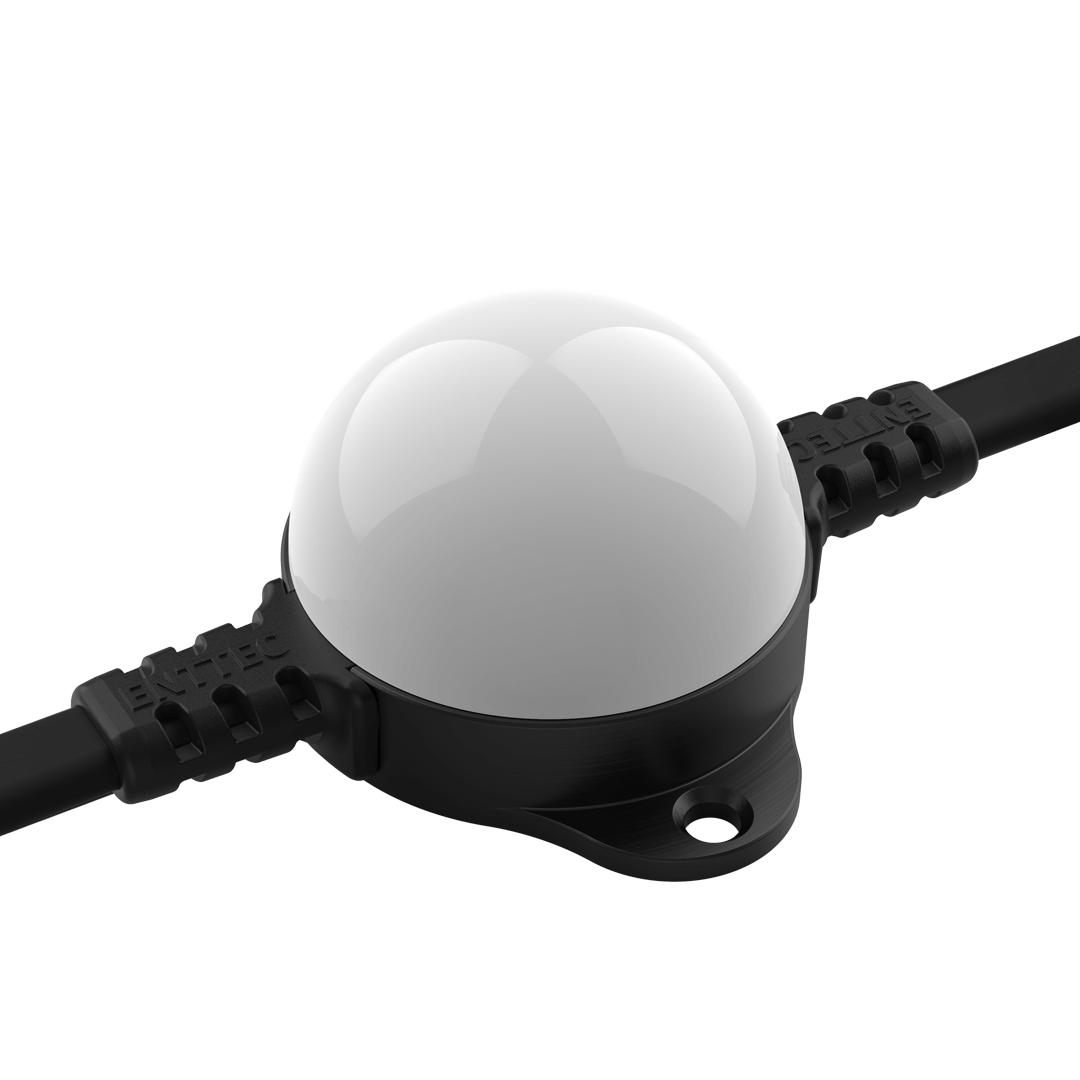

Lens options | ⌀41.5mm diffuse dome / clear flat / no lens |
Lens material | optical grade polycarbonate |
IK rating | IK10 |
IP rating | IP67 |
Vibration rating | 3G |
Operating temperature | -20°C to +50°C |

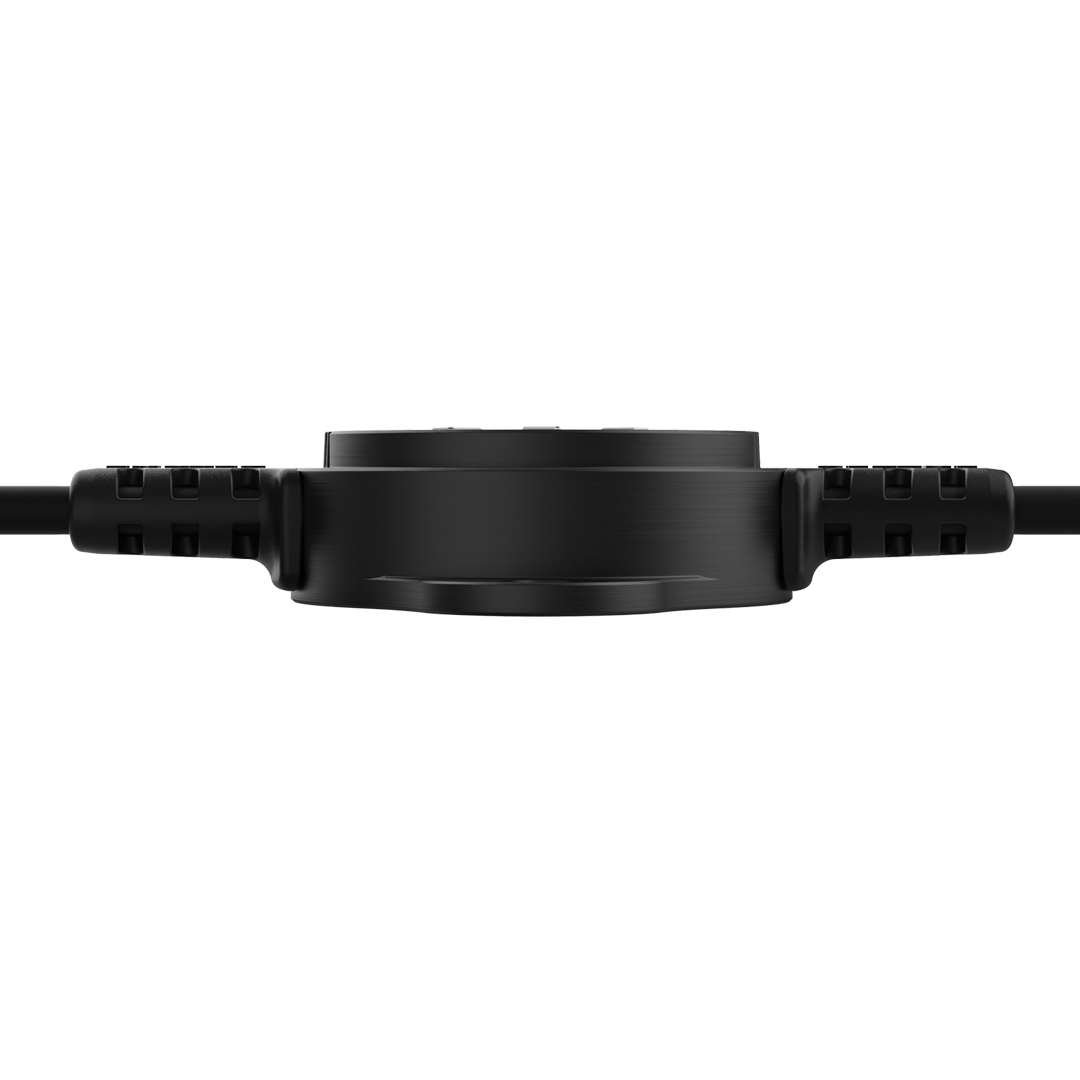

Overall dimensions | 77.2mm L x 57mm W x 14mm H (no lens) / 31.2mm H (dome lens) / 22.1mm H (flat lens) |
Weight | 1.00 kg (string of 20 dots) |
Dot pitch/spacing | customisation options available: from 125mm to 2000mm |
Installation | 2 x ⌀4.3mm mounting holes for M4 screws |

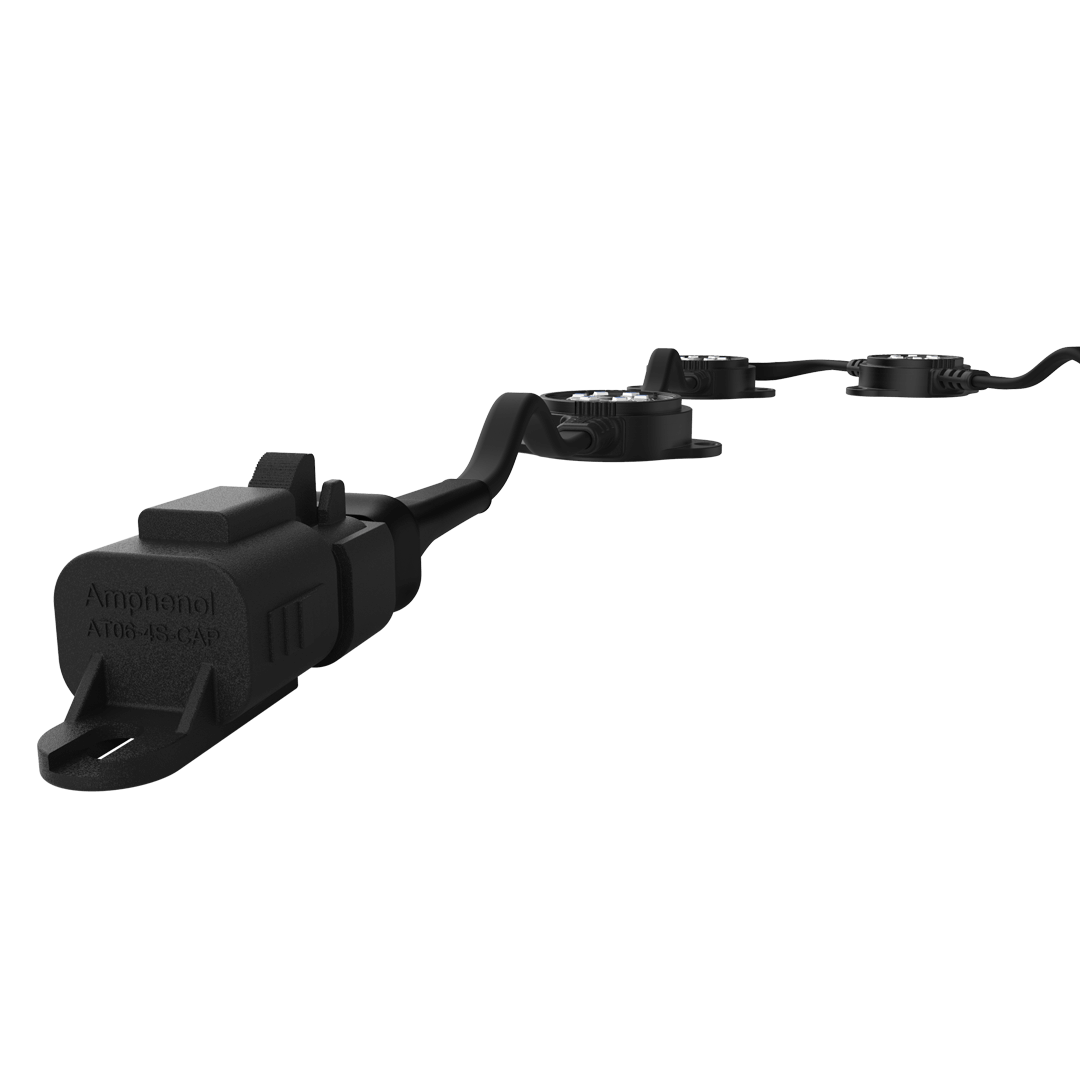

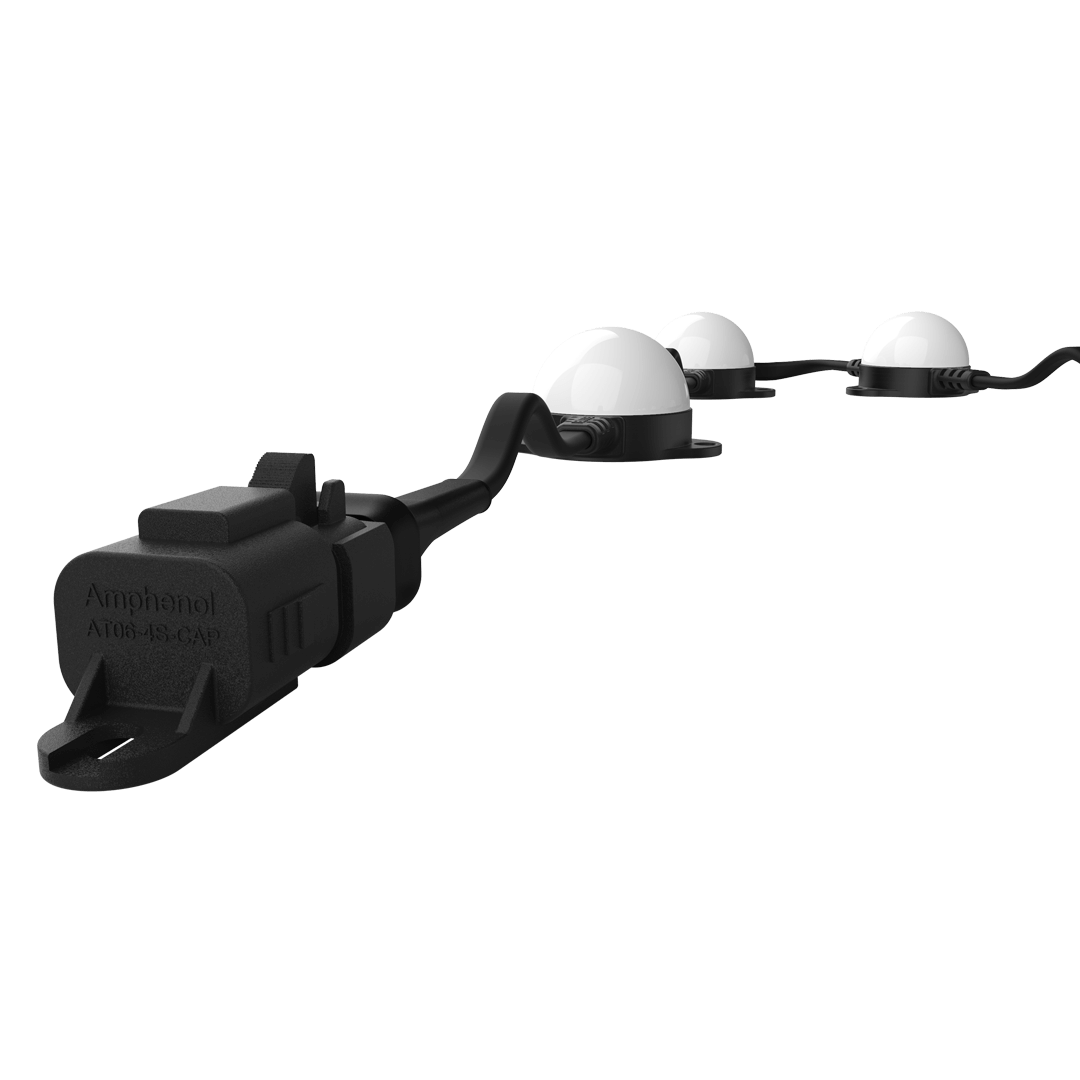

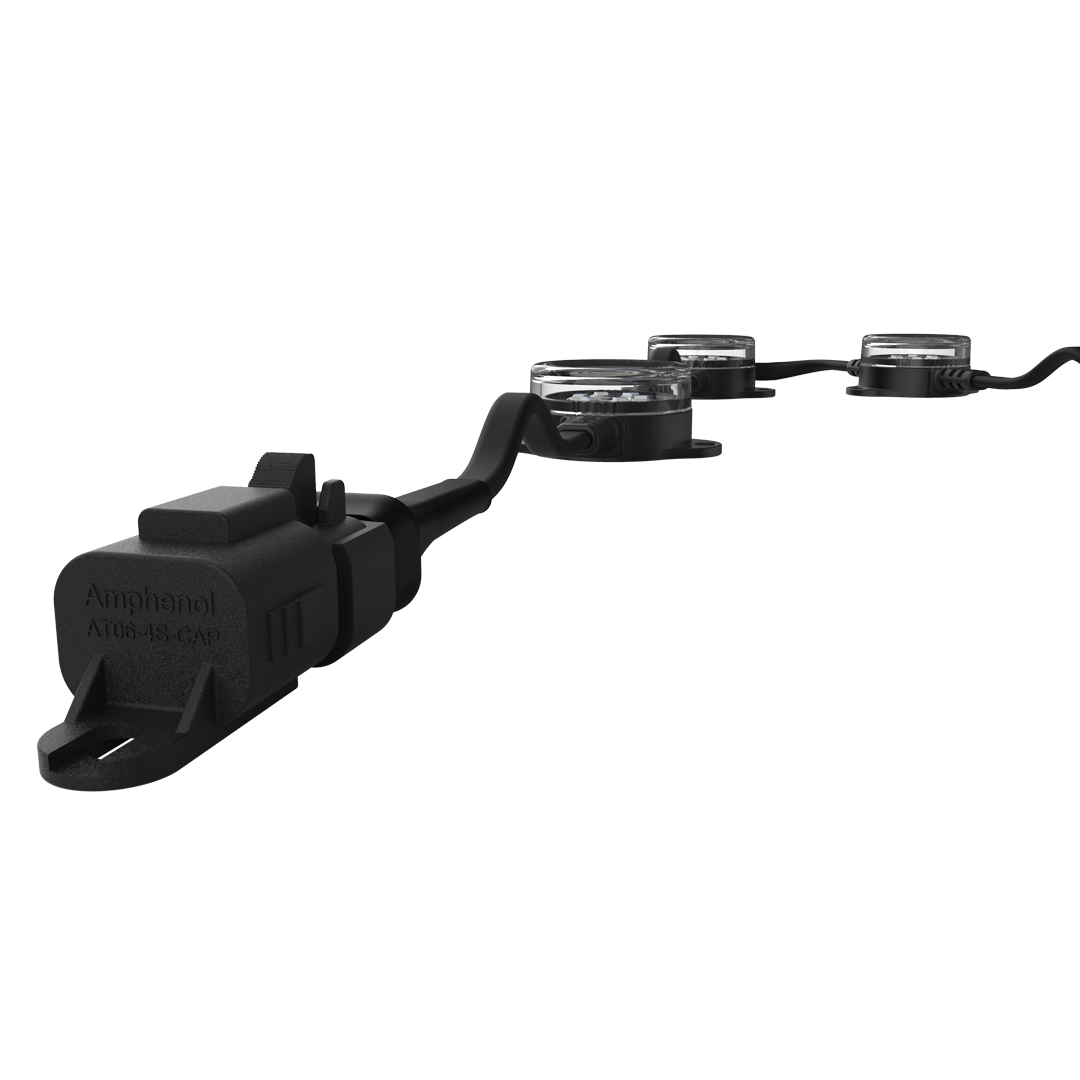

Cabling | includes premium Amphenol AT series connectors |
Compliance | CE / WEEE / RoHS (EU), UKCA (UK) |
Warranty | 3-year return-to-base manufacturer warranty as standard. Talk to us to arrange longer periods |
LEDs

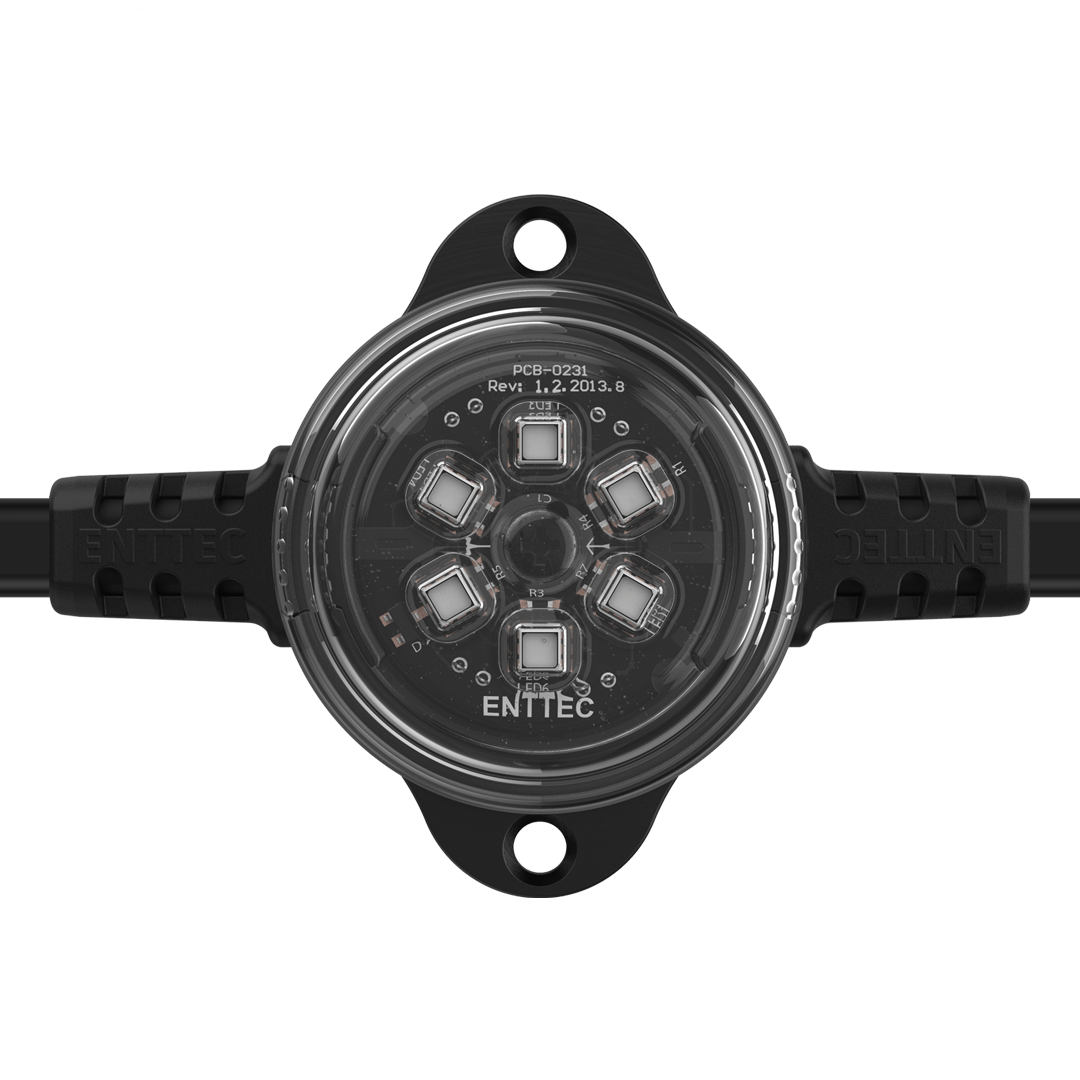

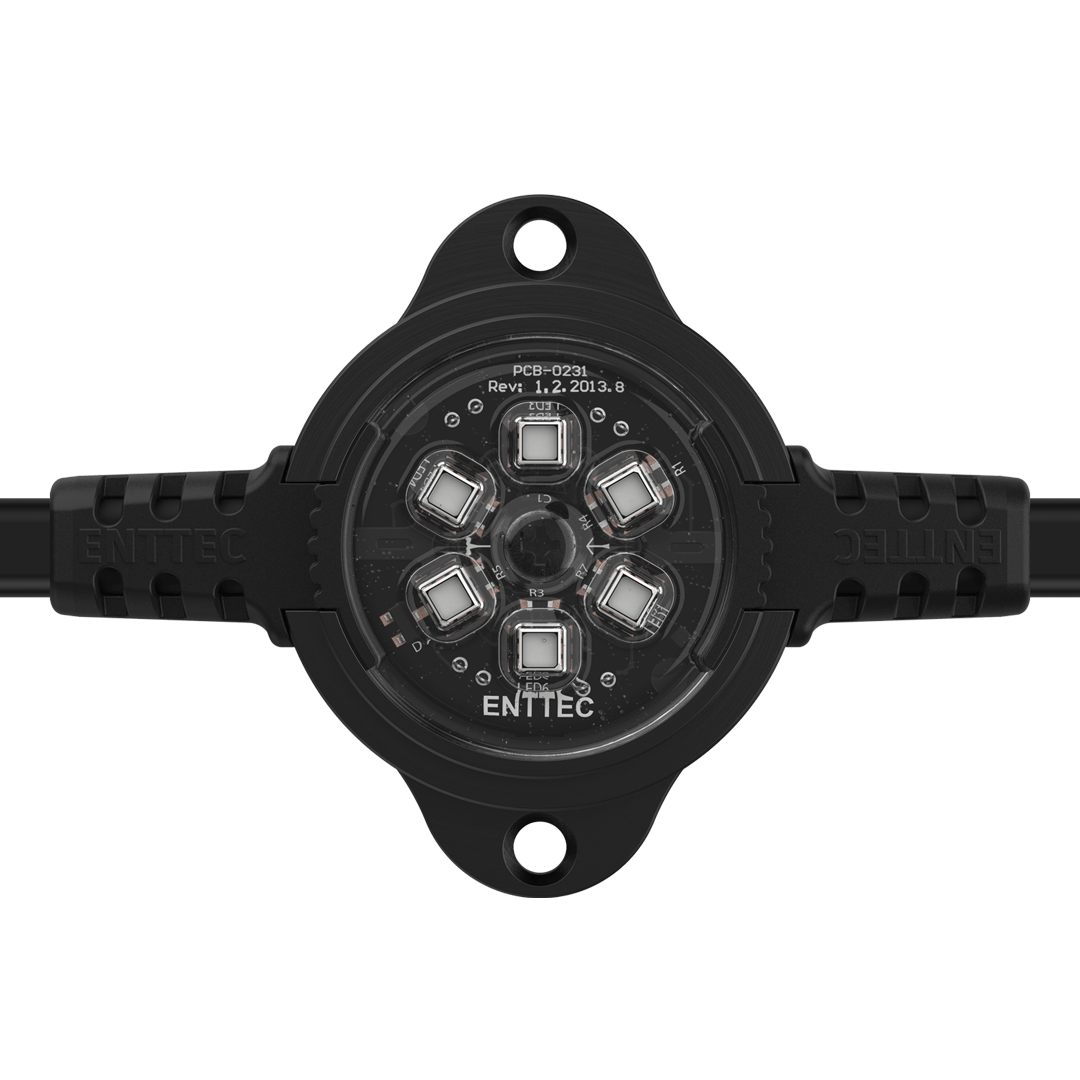

LED source | 6 x RGB SMD3535 – customisation options available |
Input voltage | 24V DC |
Max lumens (lm) | no lens: 33 / flat lens: 29 / dome lens: 24 |
Efficacy (max lm/watt) | no lens: 22 / flat lens: 19.3 / dome lens: 16 |
Control channels | equivalent of 6 DMX channels of data per dot |
Dots controllable per DMX universe | 8-bit: 170 / 16-bit: 85 |
