Smart PXL 60 Dot

Flexible strings of ultra-bright, high-resolution 55.5mm RGB or RGBW LED nodes with robust, injection-moulded cases for all-weather use.

SKU: 73050

Overview
Features
Connectivity
Specifications
Resources

Individually-addressable, LED pixel dot lights

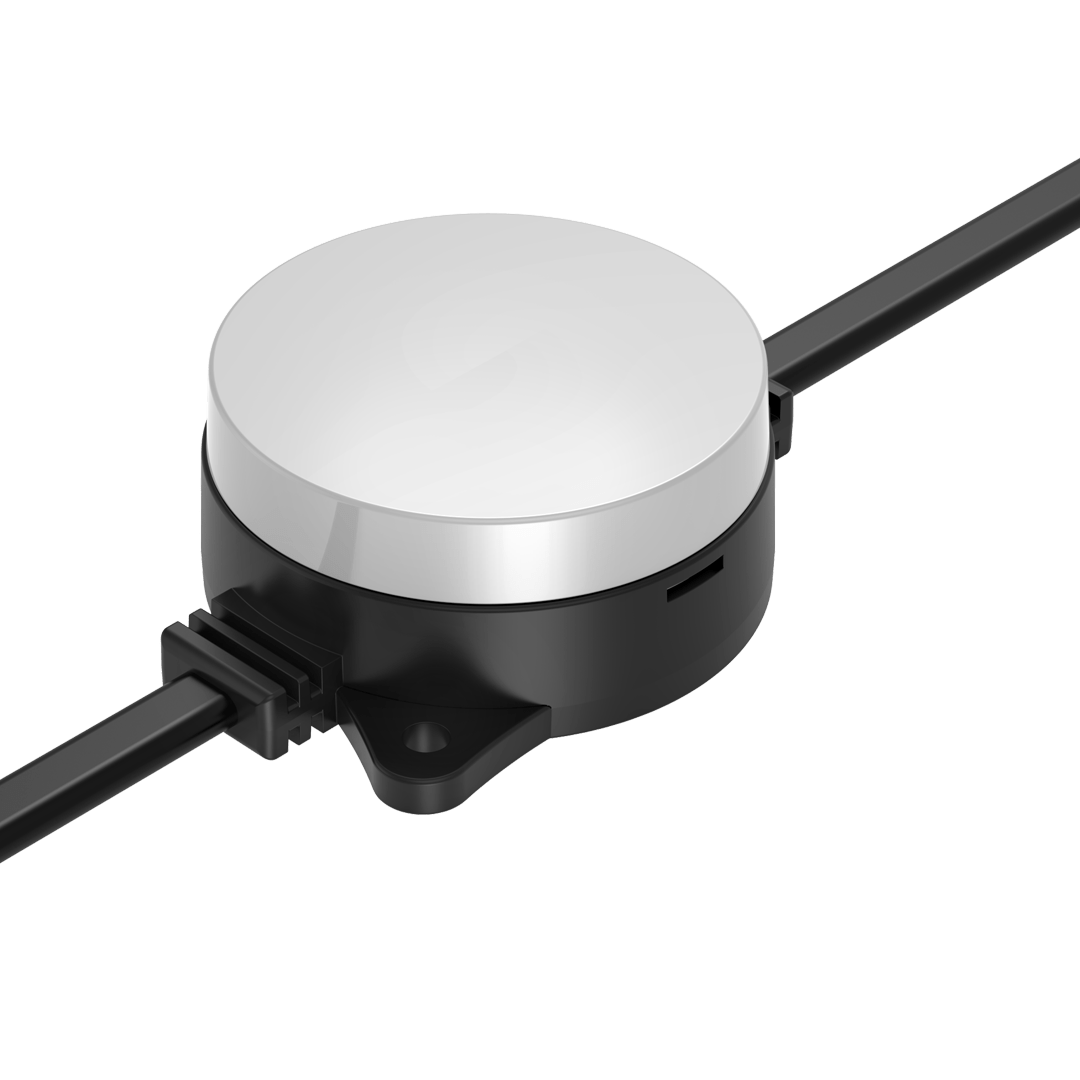

ENTTEC’s robust, high-resolution PXL-60 LED pixel dots are built to endure harsh environments. Easily installed in any shape, these 55.5mm direct-view SMART PXL dots deliver crisp, dramatic lighting effects while enhancing design. Custom spacing and voltage options are available to fit various projects. Engineered by professionals for professionals, the SMART PXL range elevates architectural, commercial, and entertainment projects. Each string is made to order at our Australian HQ using cutting-edge manufacturing techniques, then shipped globally.

Constructed from premium durable materials in our Australian factory, SMART PXL dots offer outstanding protection against moisture (IP67), corrosion and impact (IK10), and come with a 3-year warranty. The perfect outdoor pixel light for all projects.

Because your projects are built to custom specifications, so are our SMART PXL-60 dots. Select from RGB or RGBW LEDs for a 24V or 48V system, as well as different lens options and custom spacing from anywhere between 150mm and 2000mm between each dot.

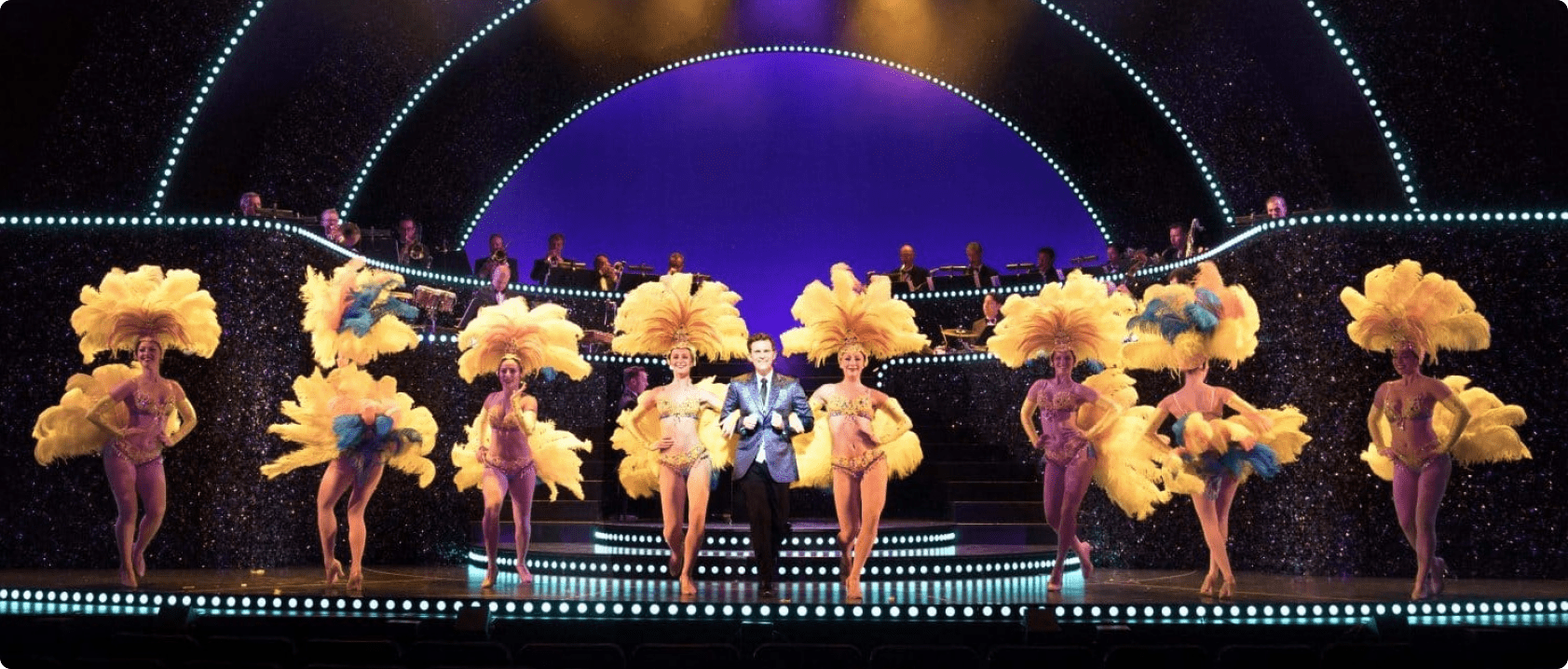

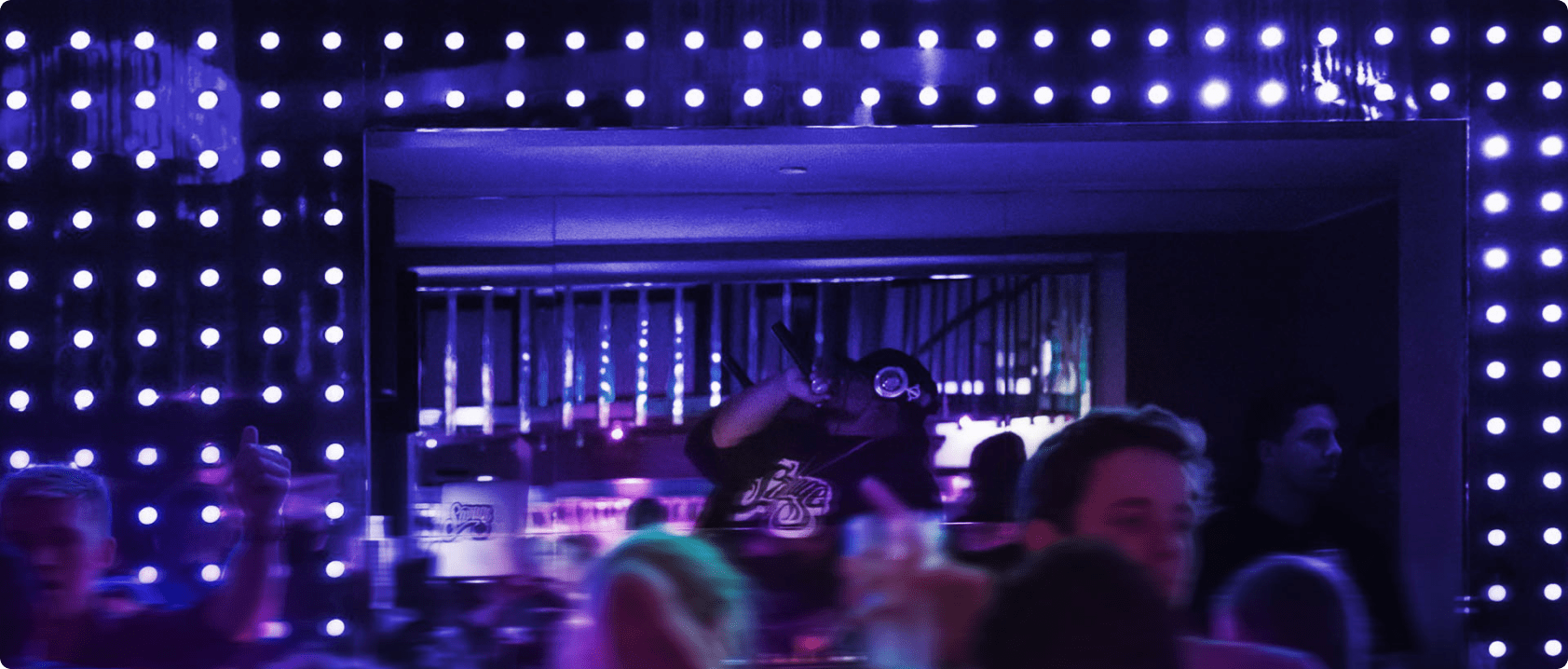

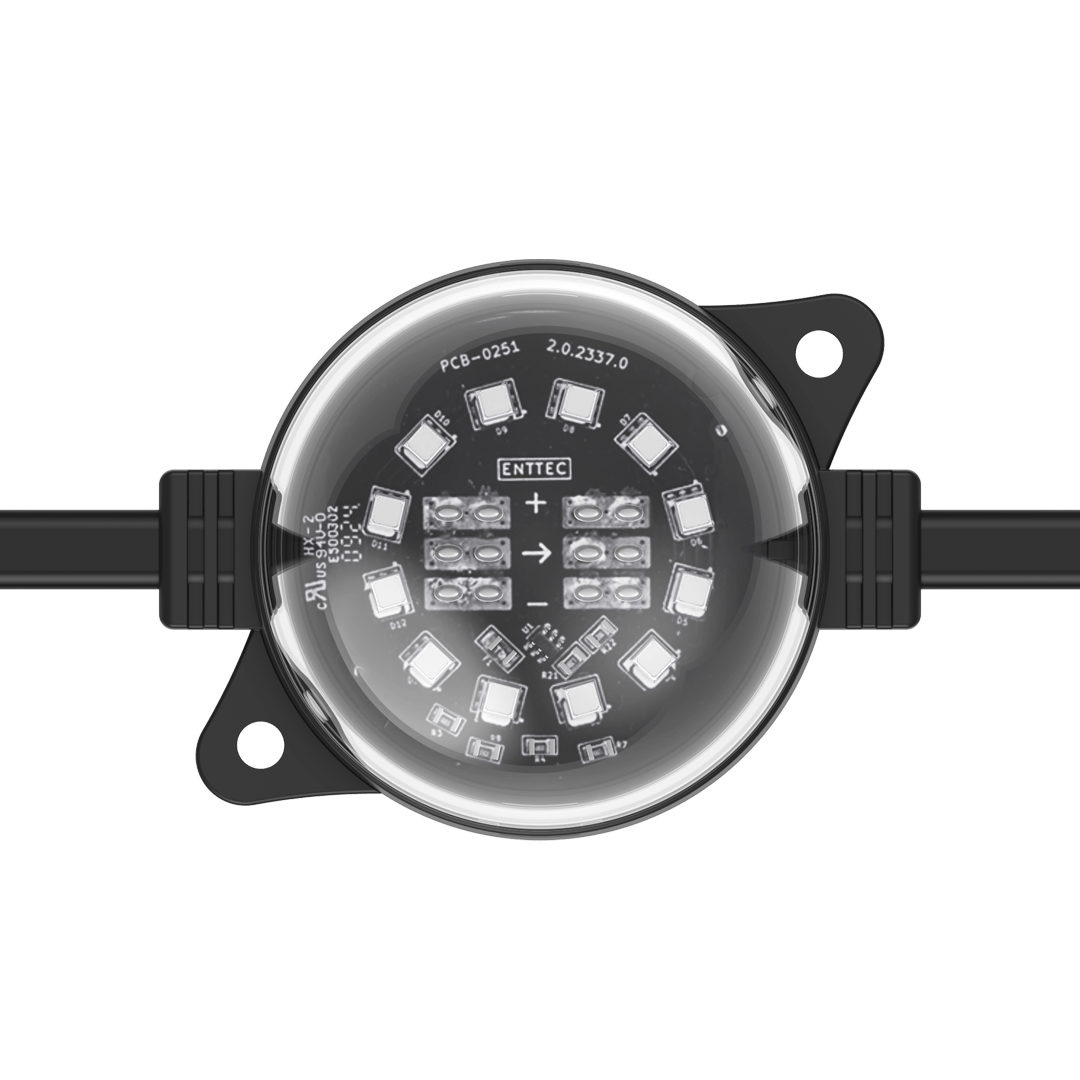

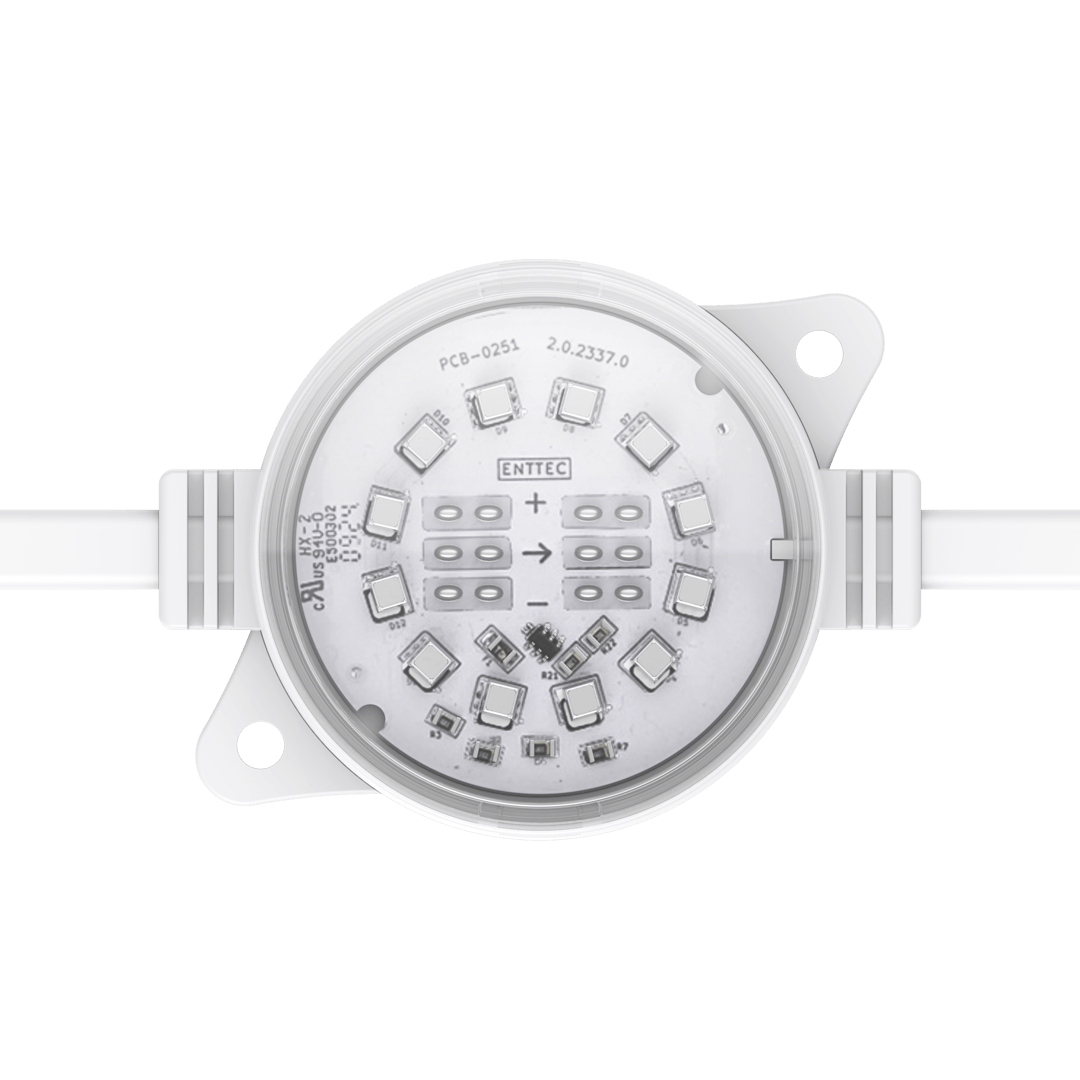

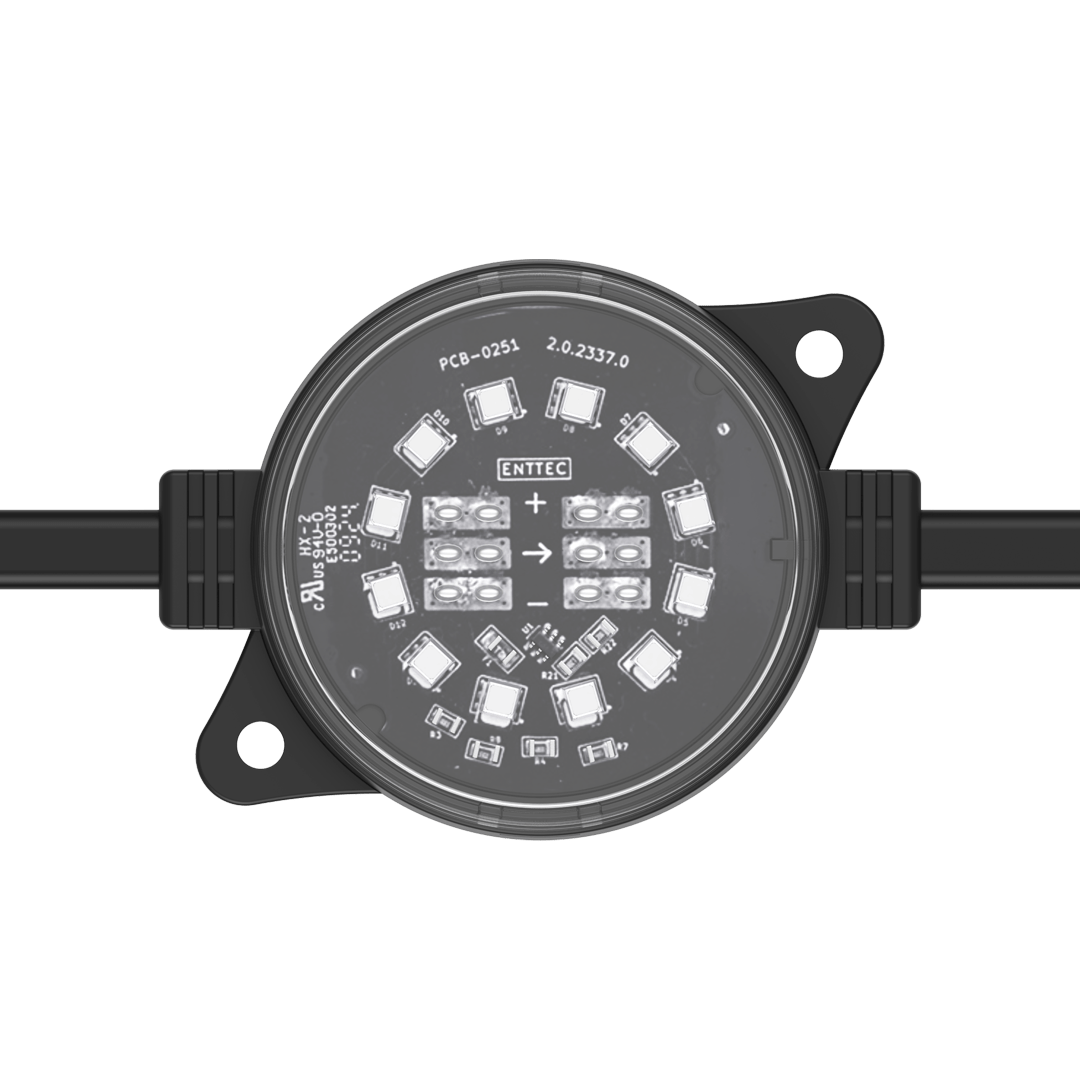

Each direct-view SMART PXL node contains 12 premium RGB or RGBW LED chips, giving an impressive lumen output. They look amazing from a distance and have been used to great effect around the world on everything from bridges to ferris wheels.

16-bit native for an ultra-smooth dimming curve and mixing detail that will truly wow your audience. Alternatively, run them in 8-bit mode with an ENTTEC control system to halve the required control channels.

We use custom made quality cable to combat voltage drop, ensuring you a richness and consistency of colour. With the best combination of customisation, you’ll be able to achieve long runs of up to 200 dots without power injection. Talk to our friendly sales team now to understand the full potential of your design!

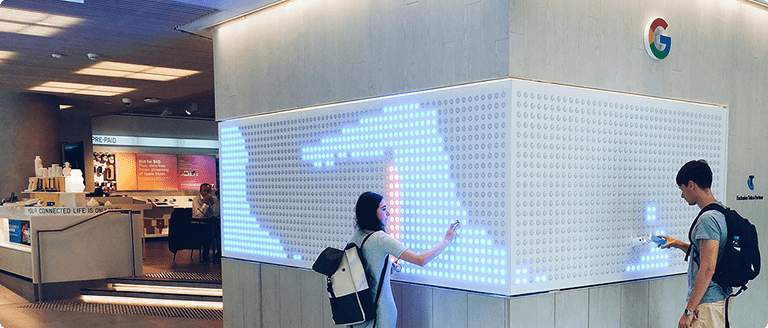

The versatile nature of SMART PXL dot strings means they’re easy-to-install around tricky angles, corners or bends, making them ideal to show off or highlight architectural features. Talk with an ENTTEC expert and we can help you bring almost any design you can imagine to life.

Accessories

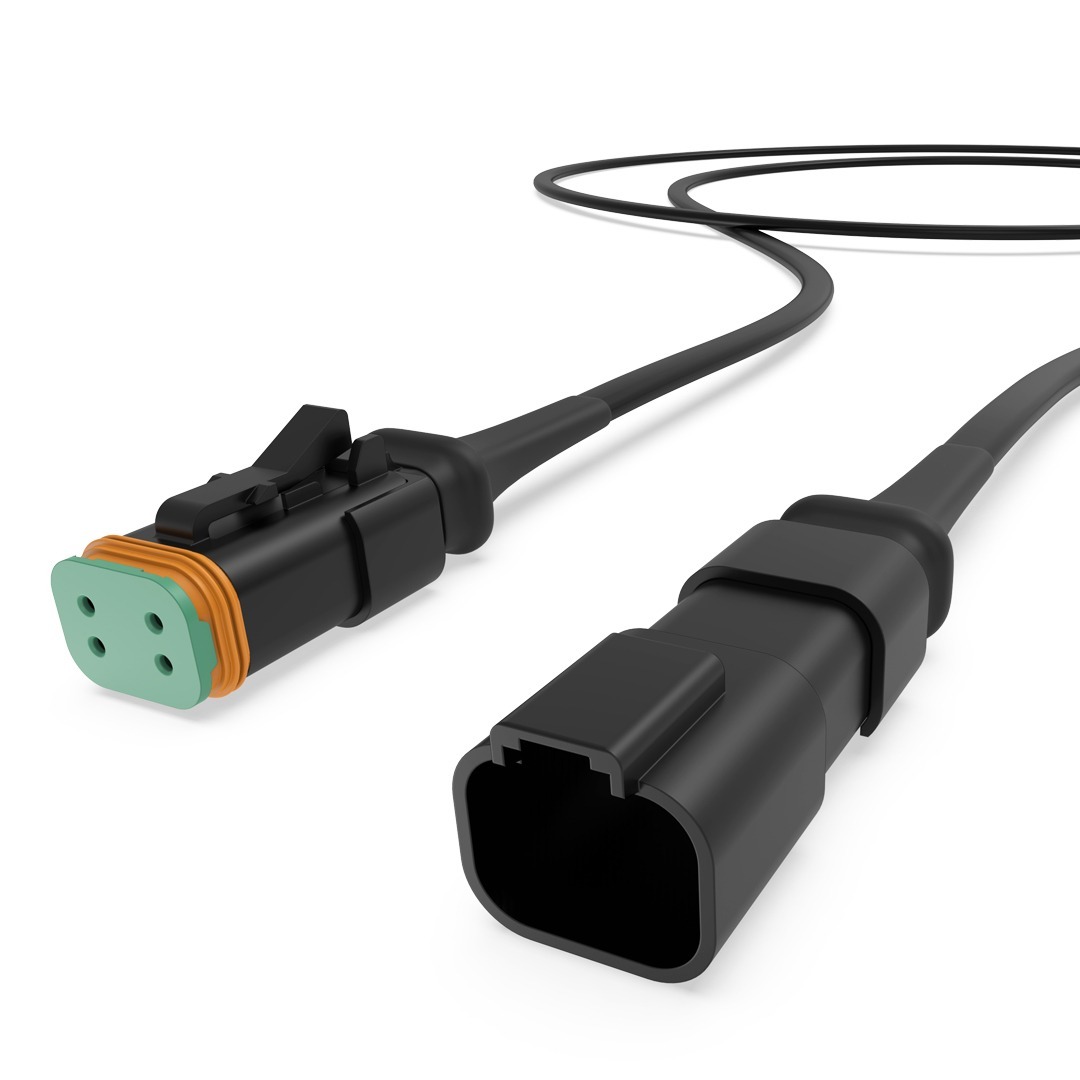

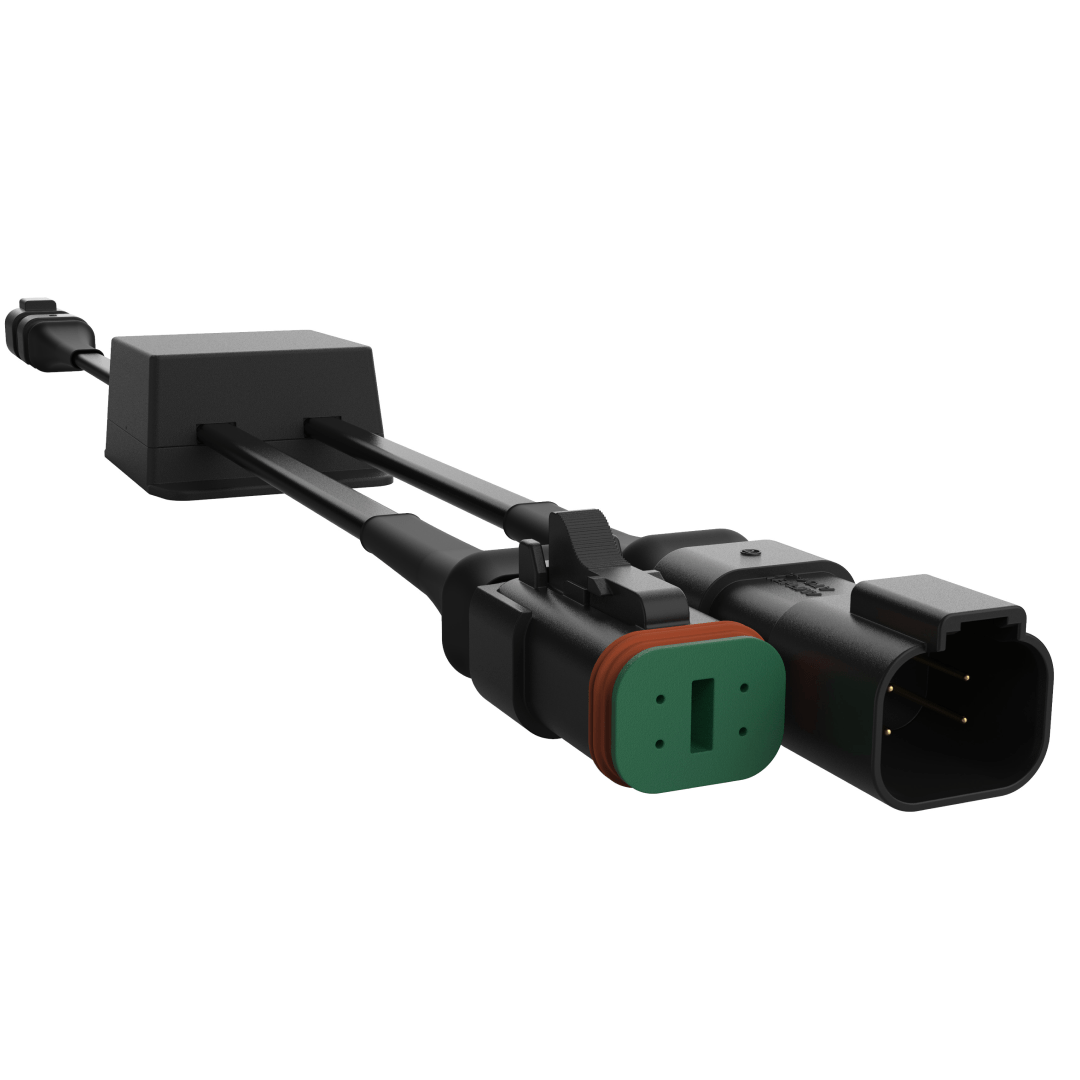

PXL-60 LED pixel dot accessories

At ENTTEC, we know that well-considered design is key to a successful installation. Our team have created a leading range of innovative accessories with premium cabling and connectors to support your project and make specifying and installing the SMART PXL series simple.

For peace of mind, our 24V and 48V accessories also feature different pinouts to prevent damage being caused when using different voltages.

Specifications

LED channels	RGB (Red/Green/Blue) or RGBW (Red/Green/Blue/White)
Colour resolution	16-bit (can also run in 8-bit mode)
Control protocol	ENTTEC SPXL-8 / SPXL-16
Data configuration	auto-addressing
LED lifetime	50,000 hrs (L70)
Body material	UV resistant injection moulded PVC

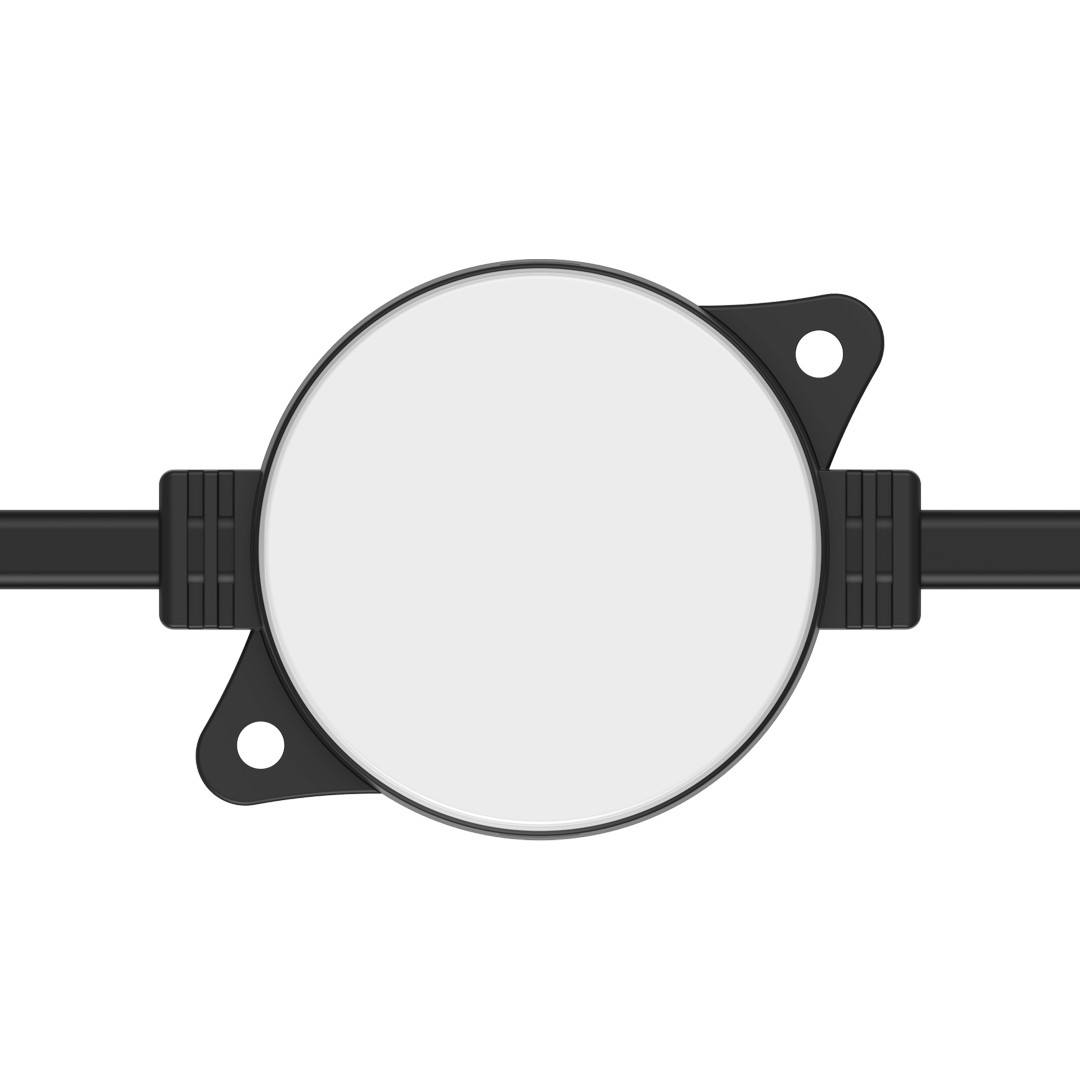

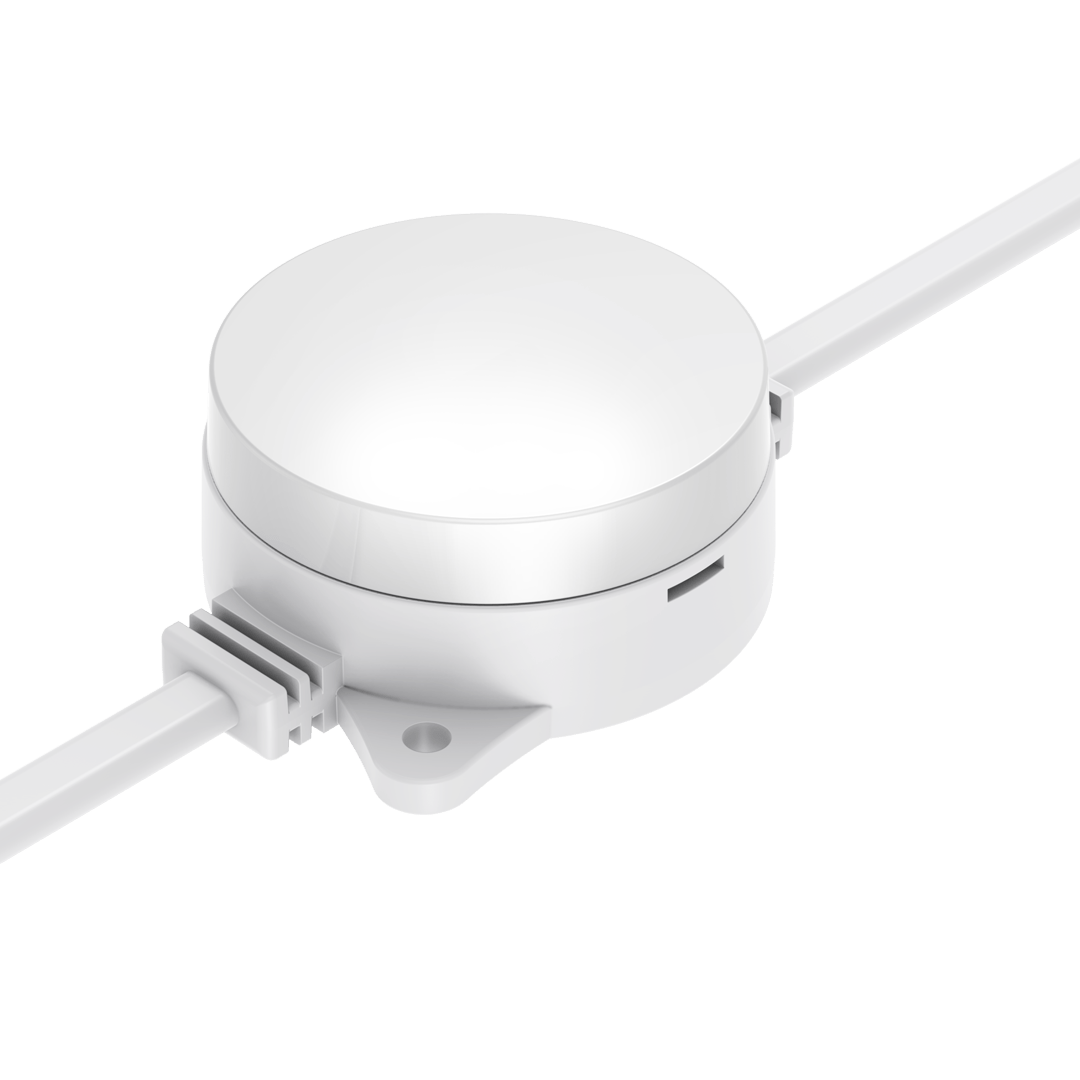

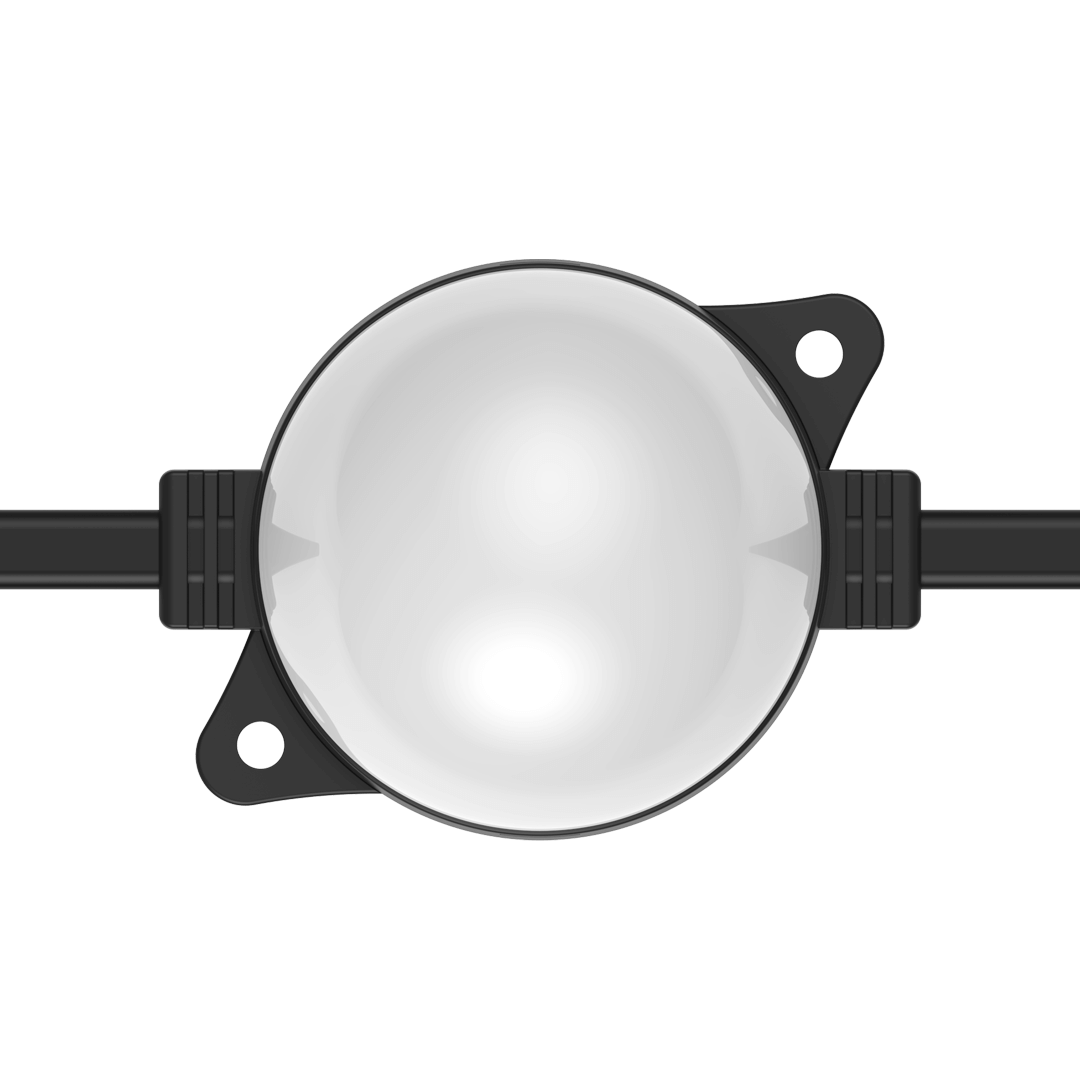

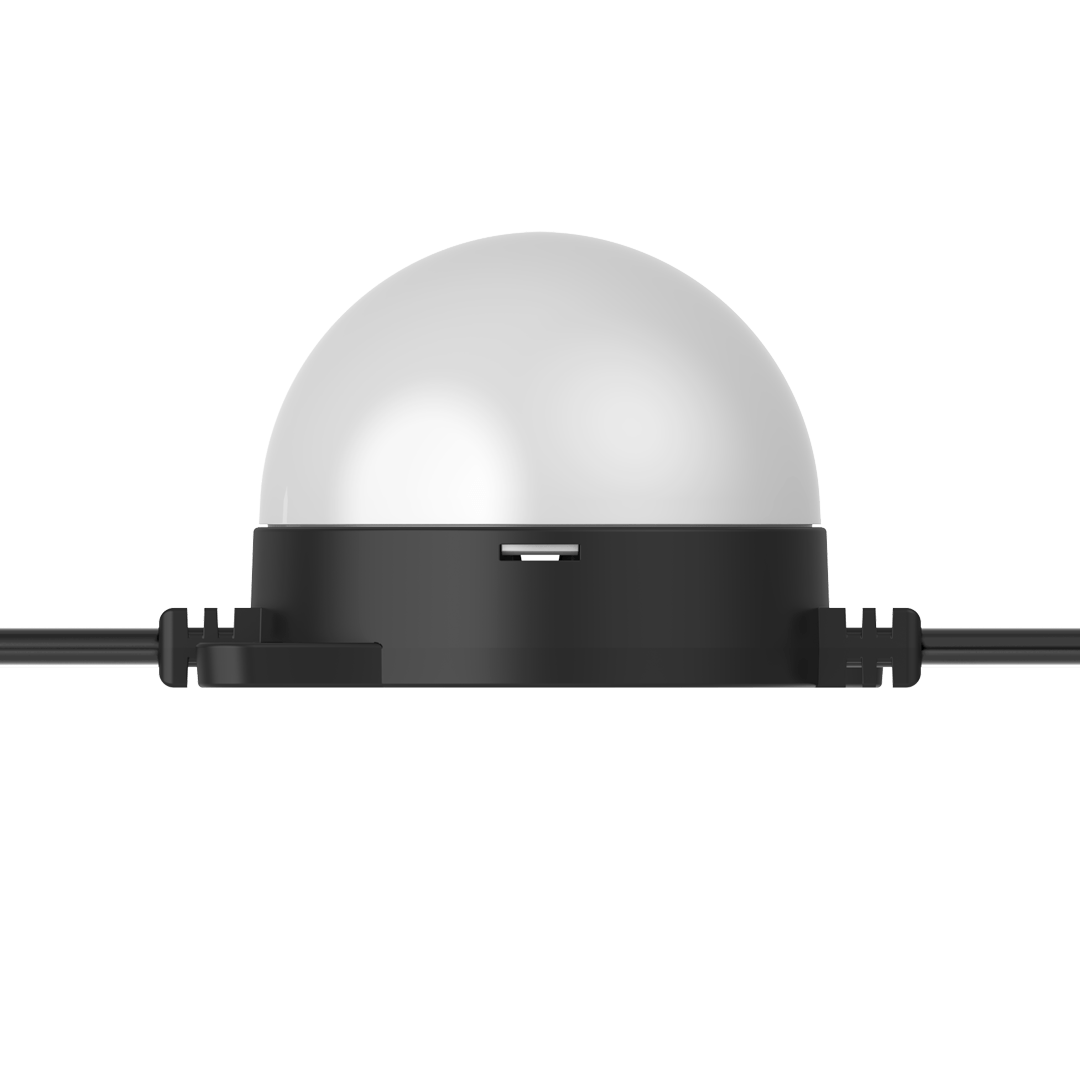

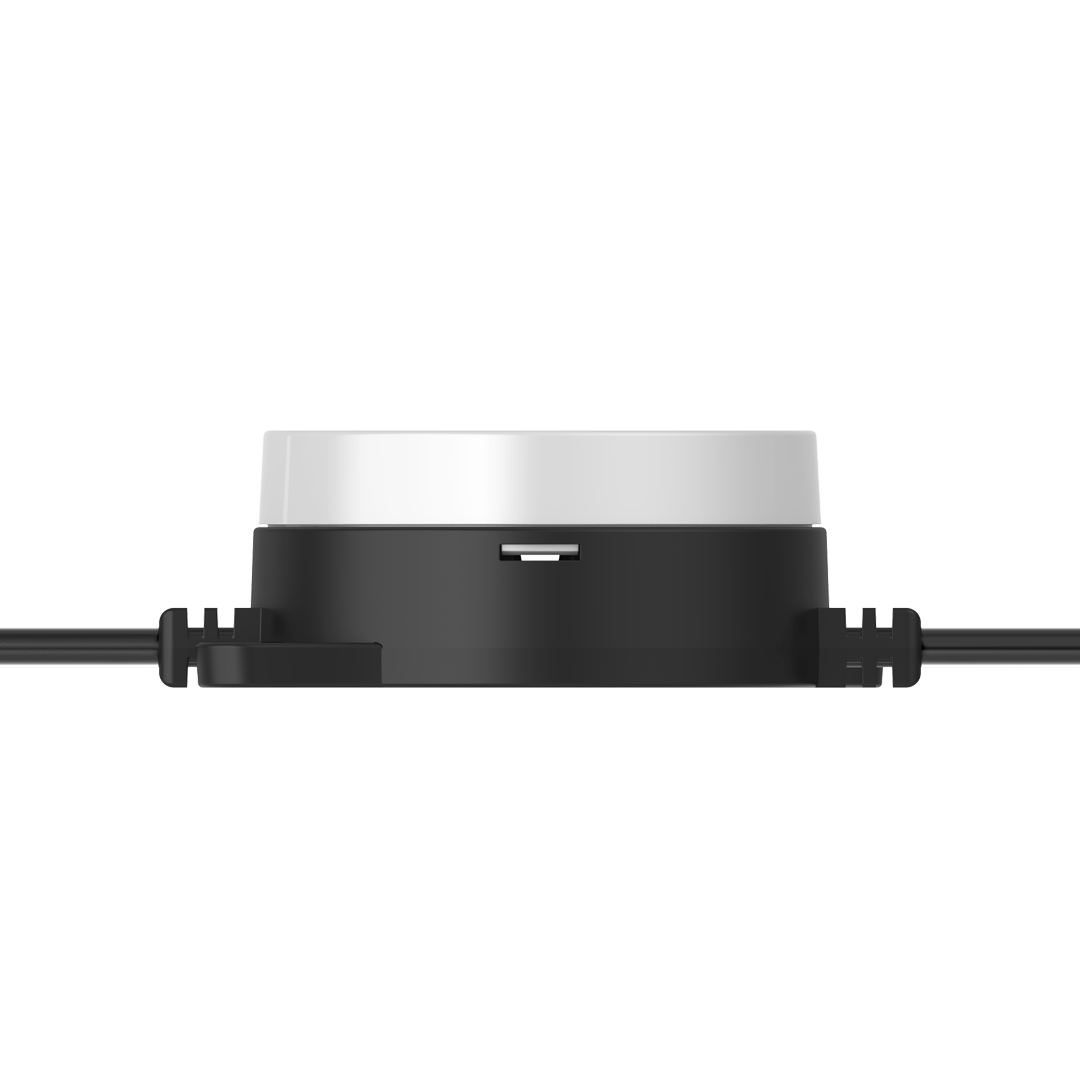

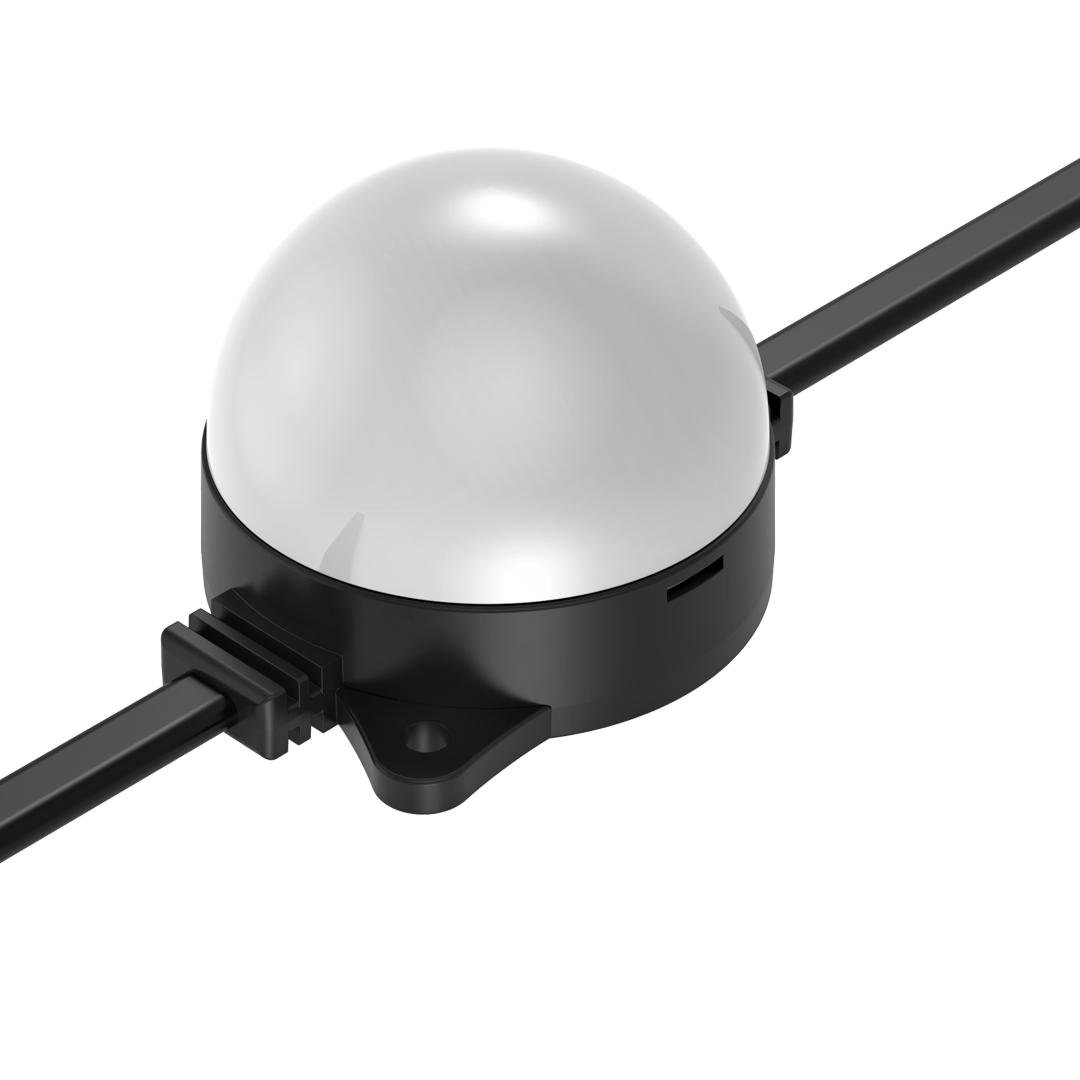

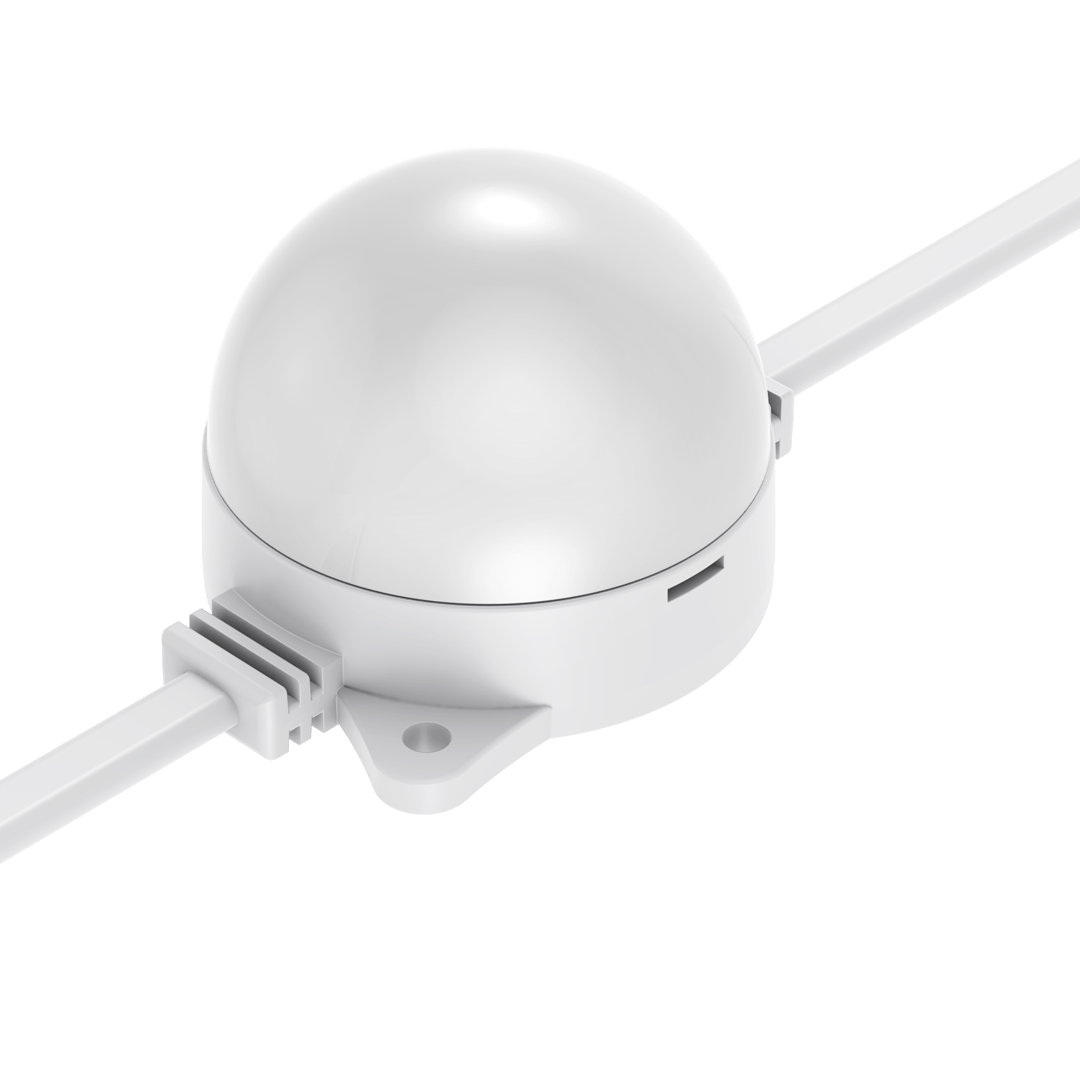

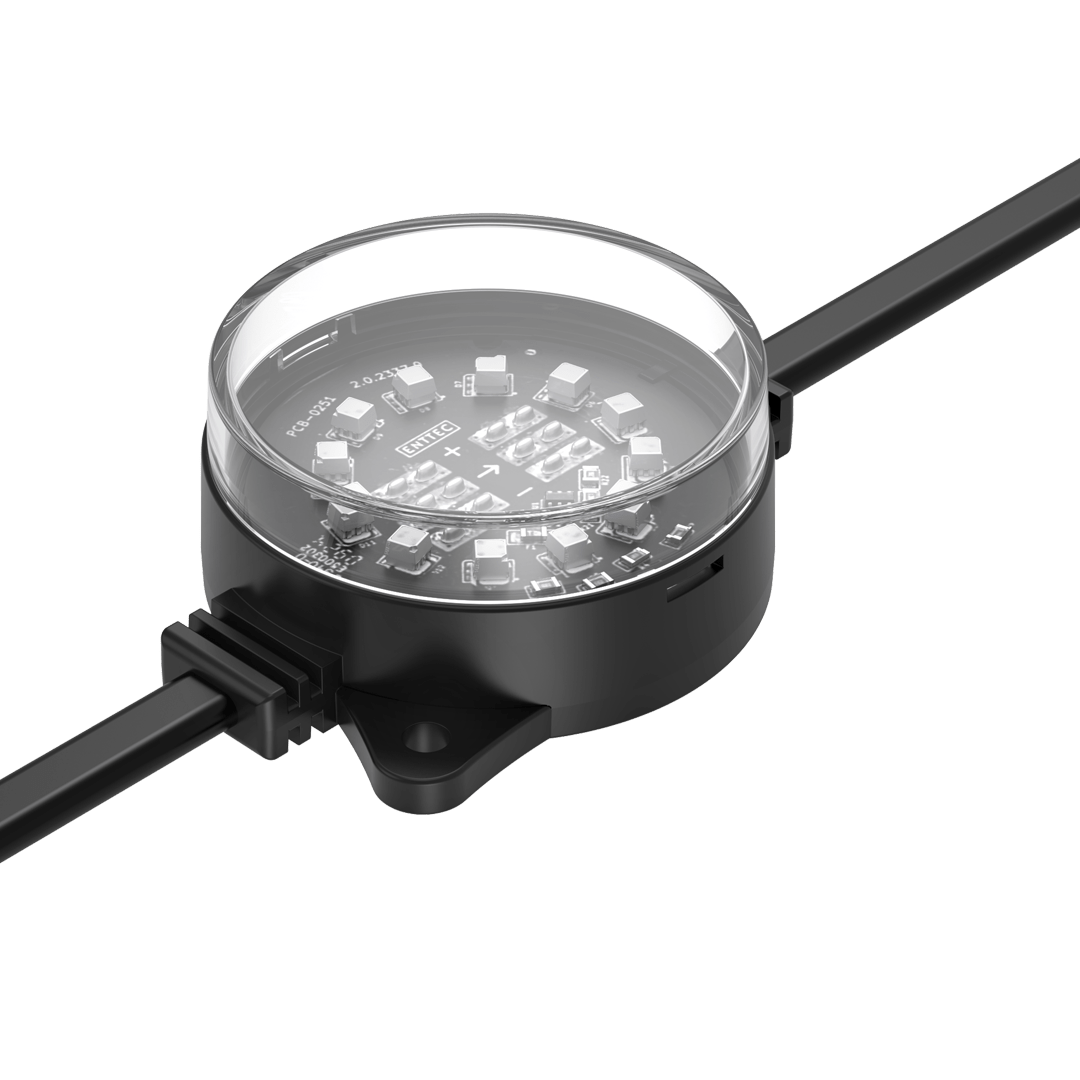

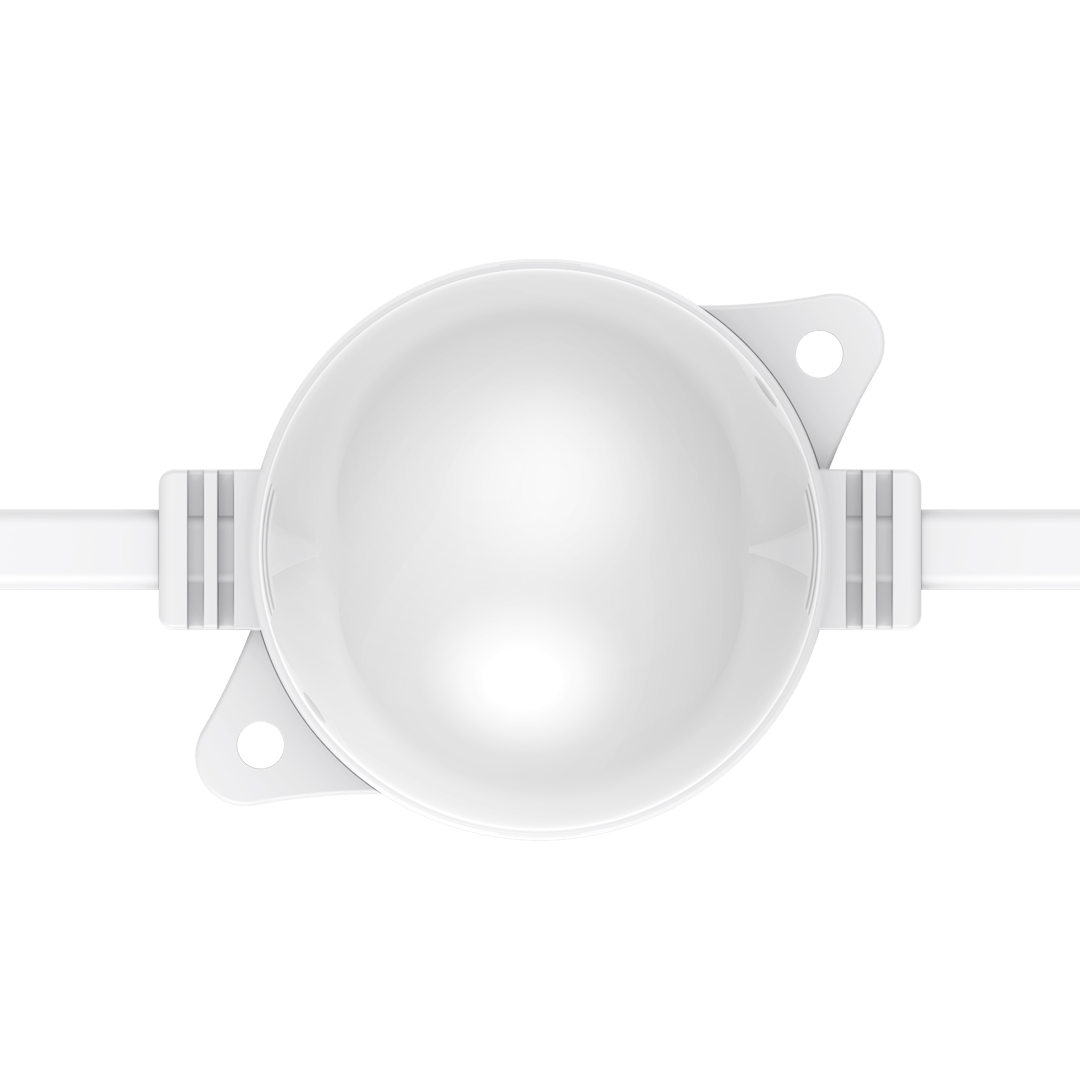

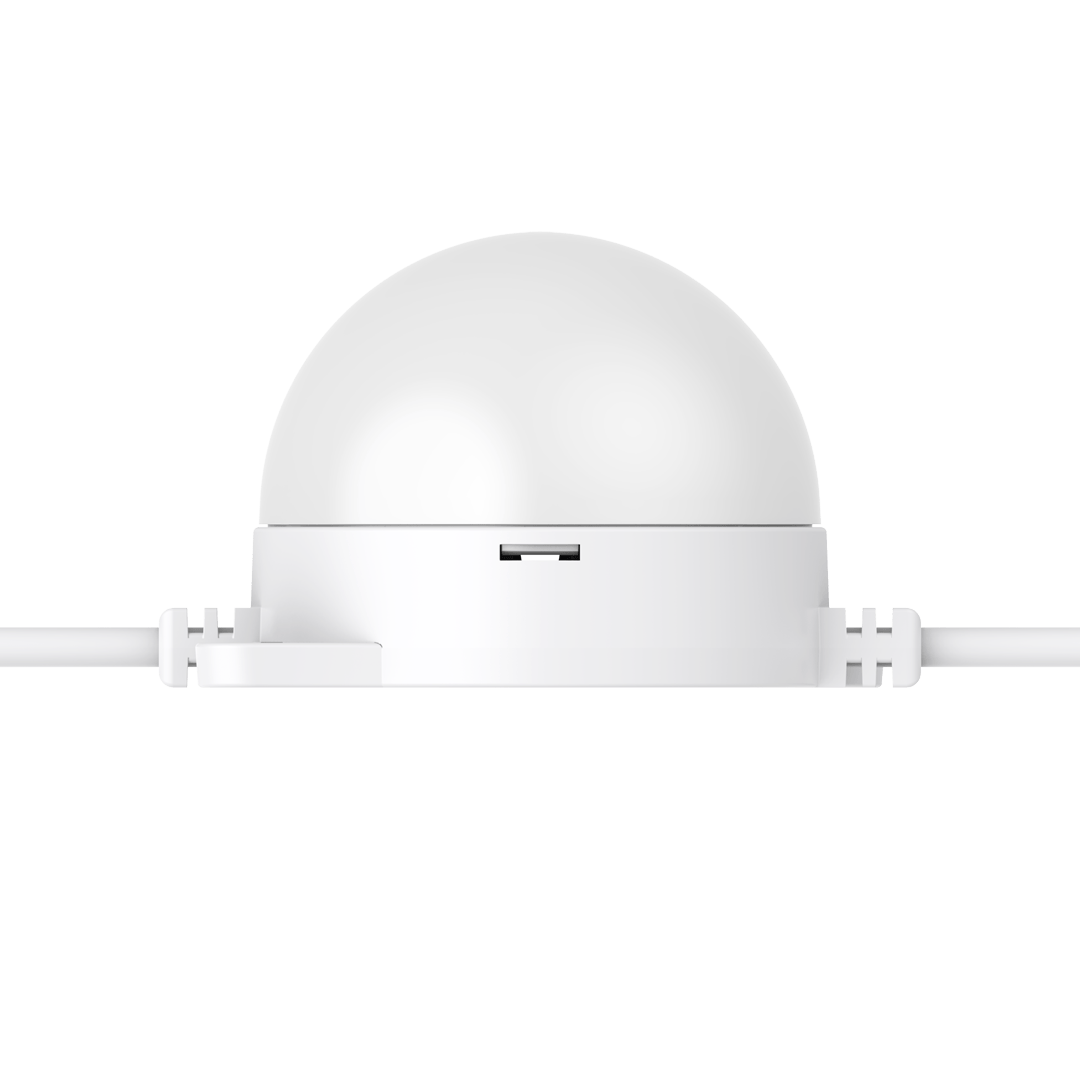

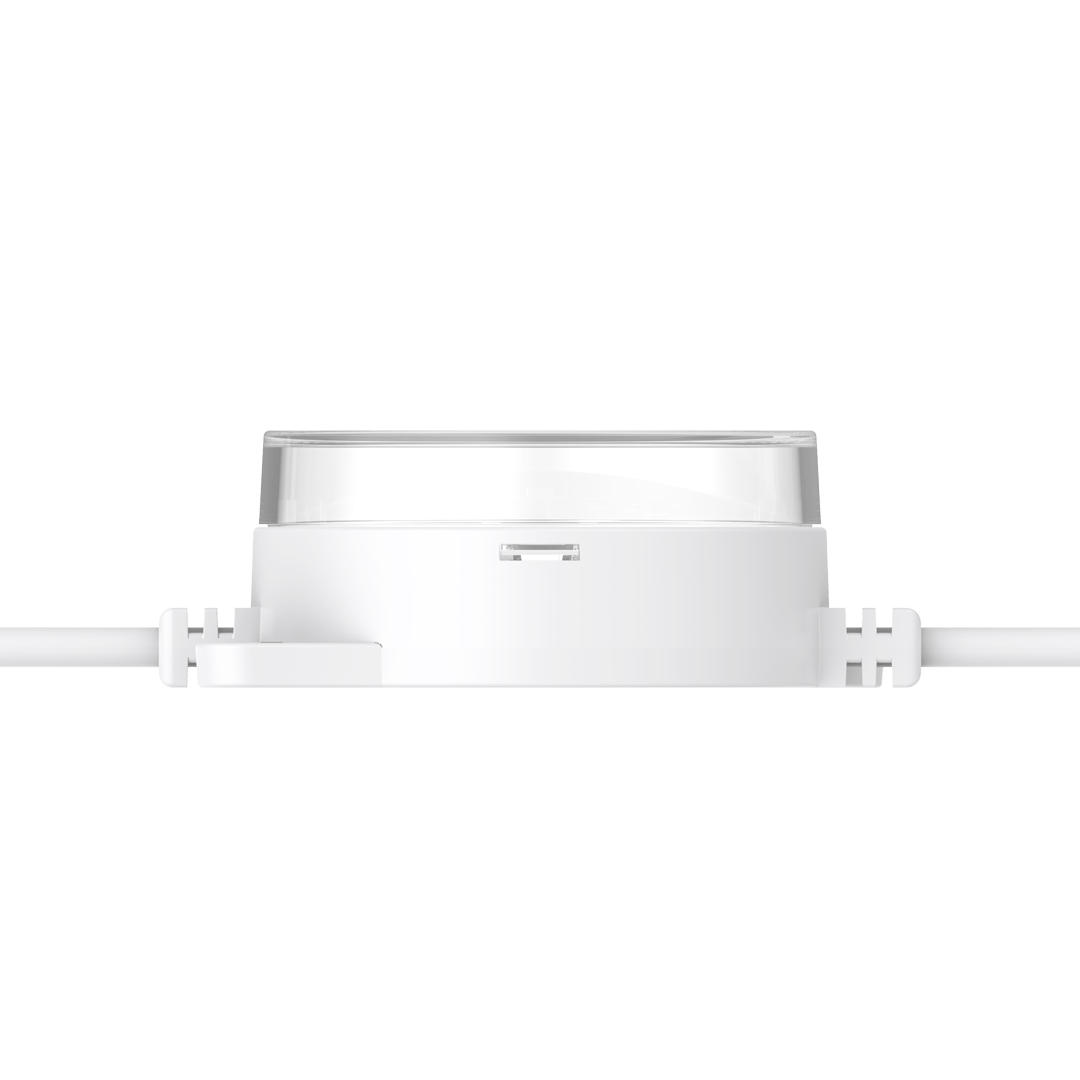

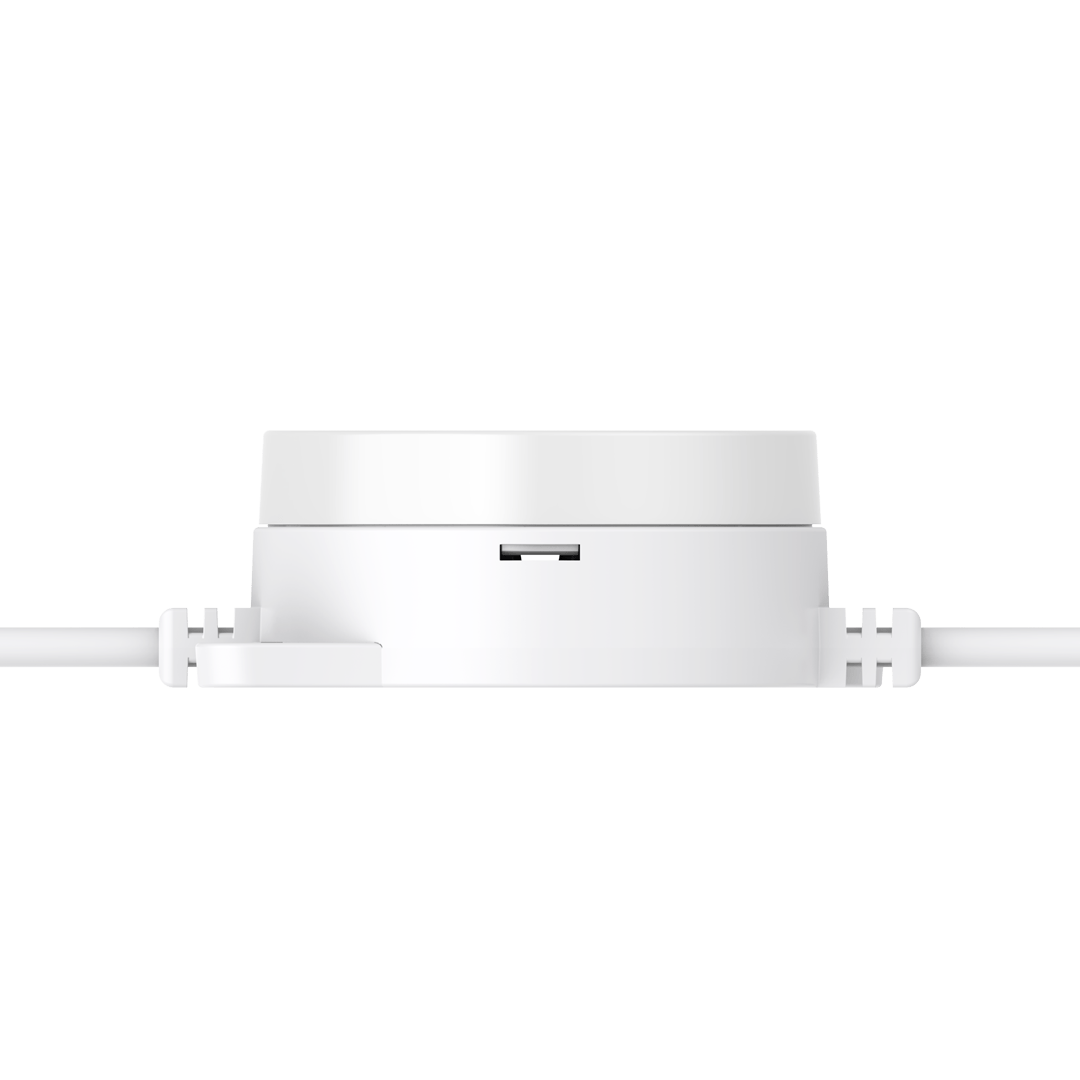

Lens options	⌀55.5mm diffuse dome / clear flat
Lens material	optical grade polycarbonate
IK rating	IK10
IP rating	IP67
Vibration rating	3G
Operating temperature	-20°C to +50°C
Overall dimension	76mm L x 58mm W x 45.1mm H (dome lens) / 25.4mm H (flat lens)
Weight	approx. 70g/dot (excl lead in & out)
Dot pitch/spacing	customisation options available: from 150mm to 2000mm

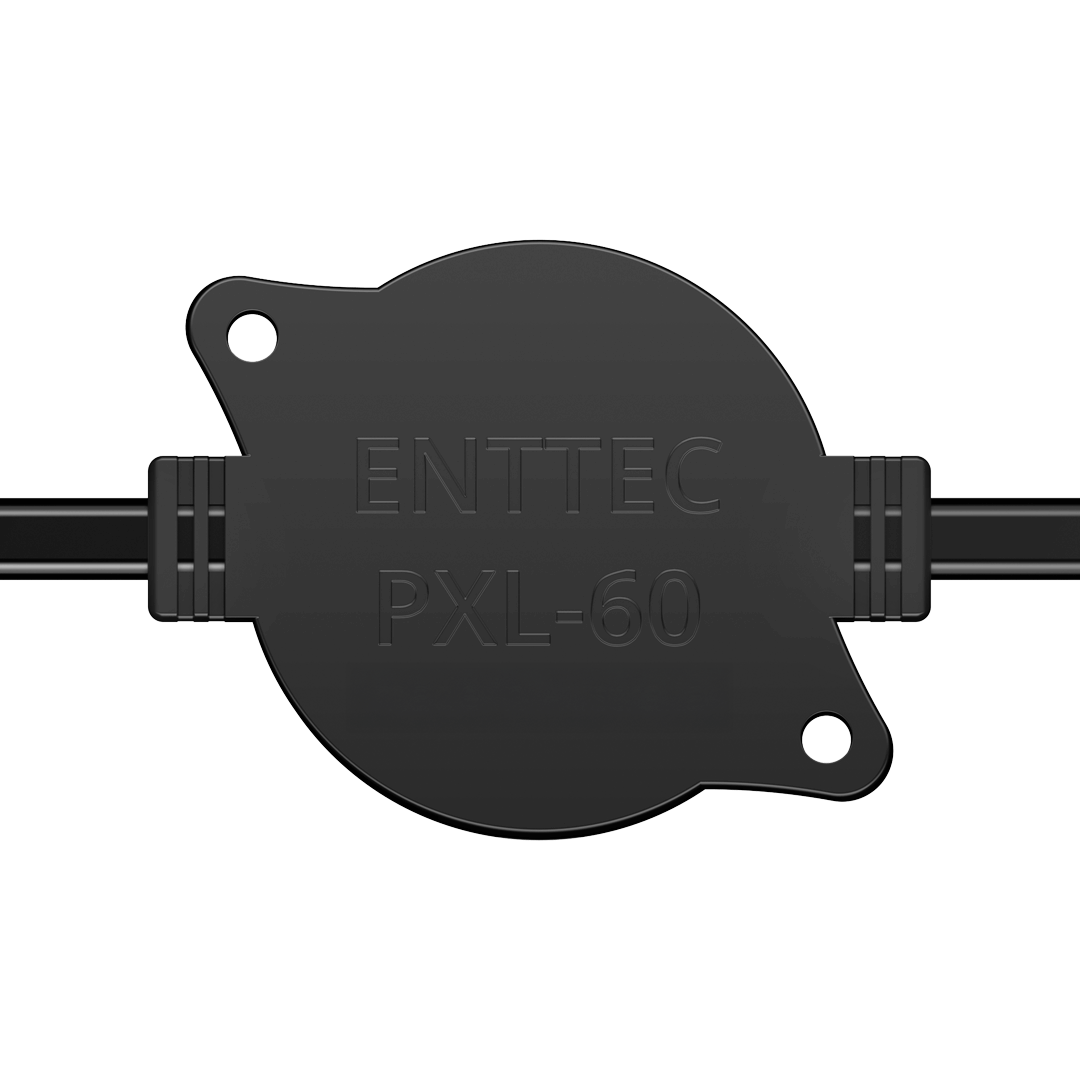

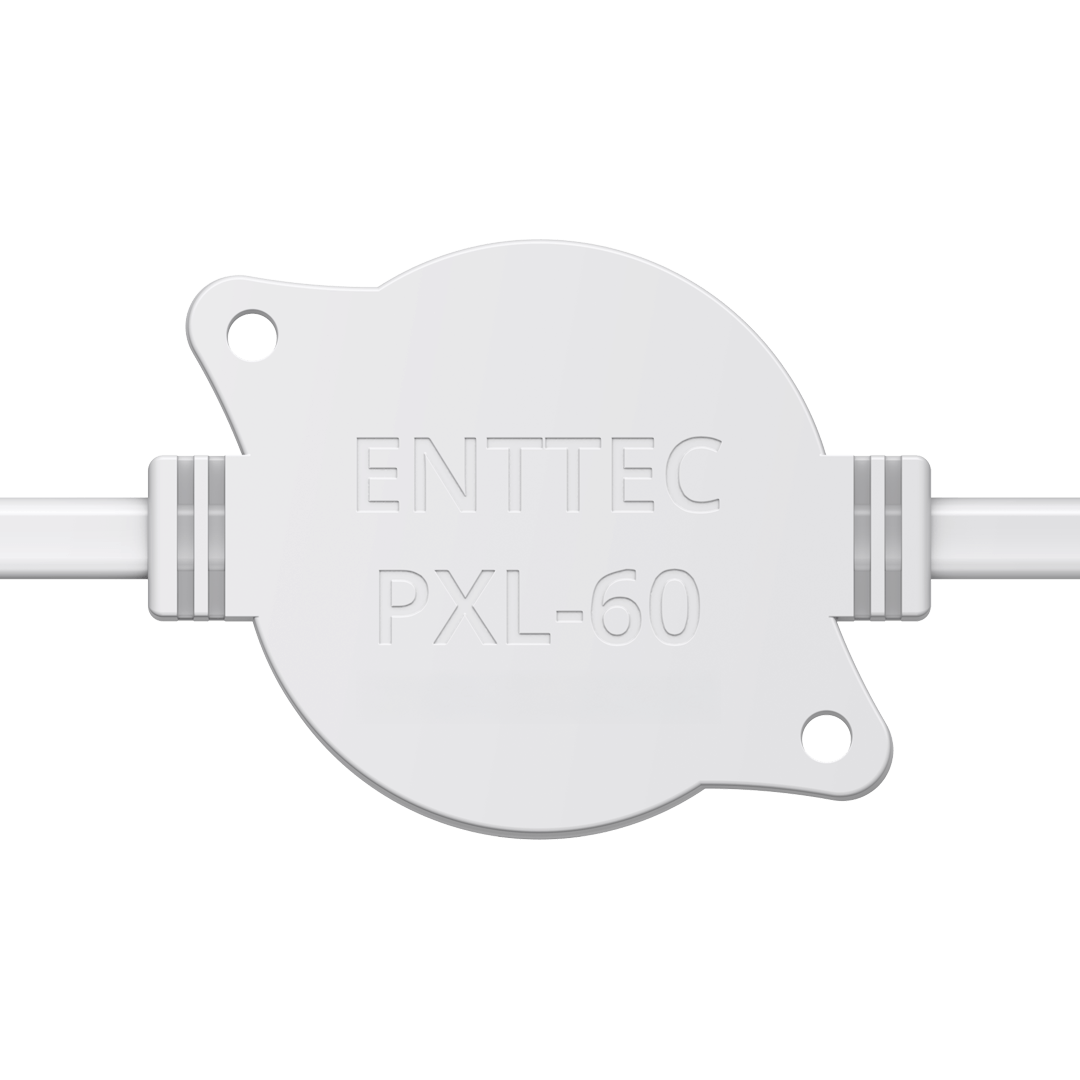

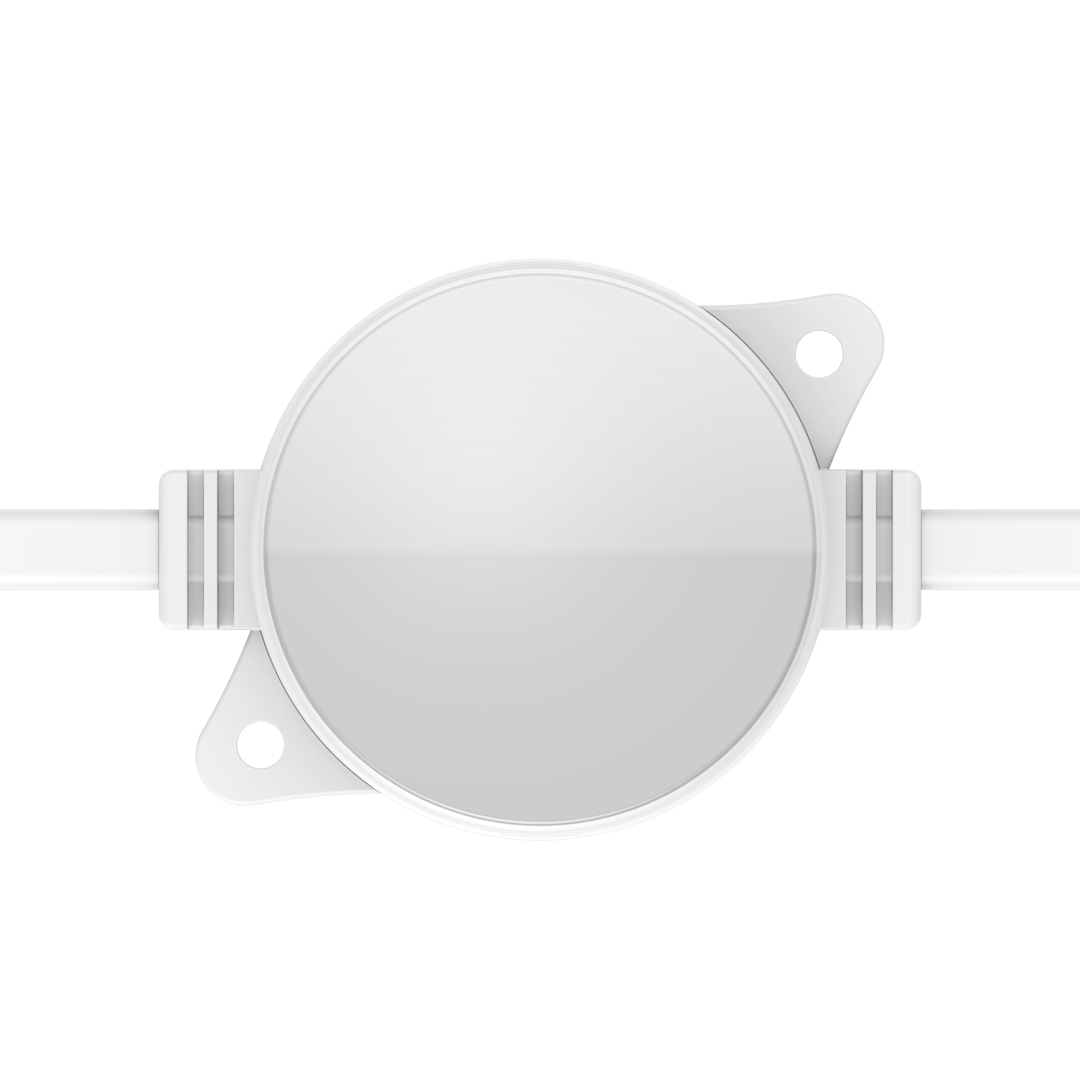

Installation	2 x ⌀4.7mm mounting holes
Cabling	includes premium Amphenol AT series connectors
Compliance	RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)
Warranty	3-year return-to-base manufacturer warranty as standard. Talk to us to arrange longer periods

RGB version

LED source	12 x RGB SMD3535 per dot – customisation options available
Input voltage	24V DC or 48V DC options
Max lumens (lm)	24V: 65 / 48V: 63.5
Efficacy (max lm/watt)	24V: 26 / 48V: 25.4
Control channels	equivalent of 6 DMX channels of data per dot
Dots controllable per DMX universe	8-bit: 170 / 16-bit: 85

RGBW version

LED source	12 x RGBW (3000K) SMD5050 per dot – customisation options available
Input voltage	24V DC or 48V DC options
Max lumens (lm)	24V: 110.4 / 48V: 101.4
Efficacy (max lm/watt)	24V: 42.5 / 48V: 39
Control channels	equivalent of 8 DMX channels of data per dot
Dots controllable per DMX universe	8-bit: 128 / 16-bit: 64
