ODE MK3

With 2 Universes of Ethernet to DMX conversion featuring Art-RDM support, Power over Ethernet (PoE) or a flexible 12-24v DC input, the ODE MK3 allows for fast deployment of DMX systems compatible with a wide range of devices.

SKU: 70407

Overview
Features
Connectivity
Specifications
Resources

The ultimate Power Over Ethernet DMX interface

The ODE MK3 is a robust, reliable, installation-grade, Ethernet to DMX converter engineered to connect DMX fixtures to your Ethernet network infrastructure. Now you can expand your lighting project to the next level.

With 2 Universes of bi-directional eDMX to DMX conversion and Art-RDM support, the ODE MK3 is compatible with a wide range of devices and allows for fast deployment of your DMX system. Simply connect, configure and take control!

Additionally, this Ethernet to DMX/RDM gateway is packed with installer-friendly features for a speedy installation and configuration, all managed through a web UI – and contained in a compact, portable form factor.

Configuration is managed through the localhost web interface to simplify commissioning and updates. Consequently, the ODE MK3 to be configured from any computer on your network.

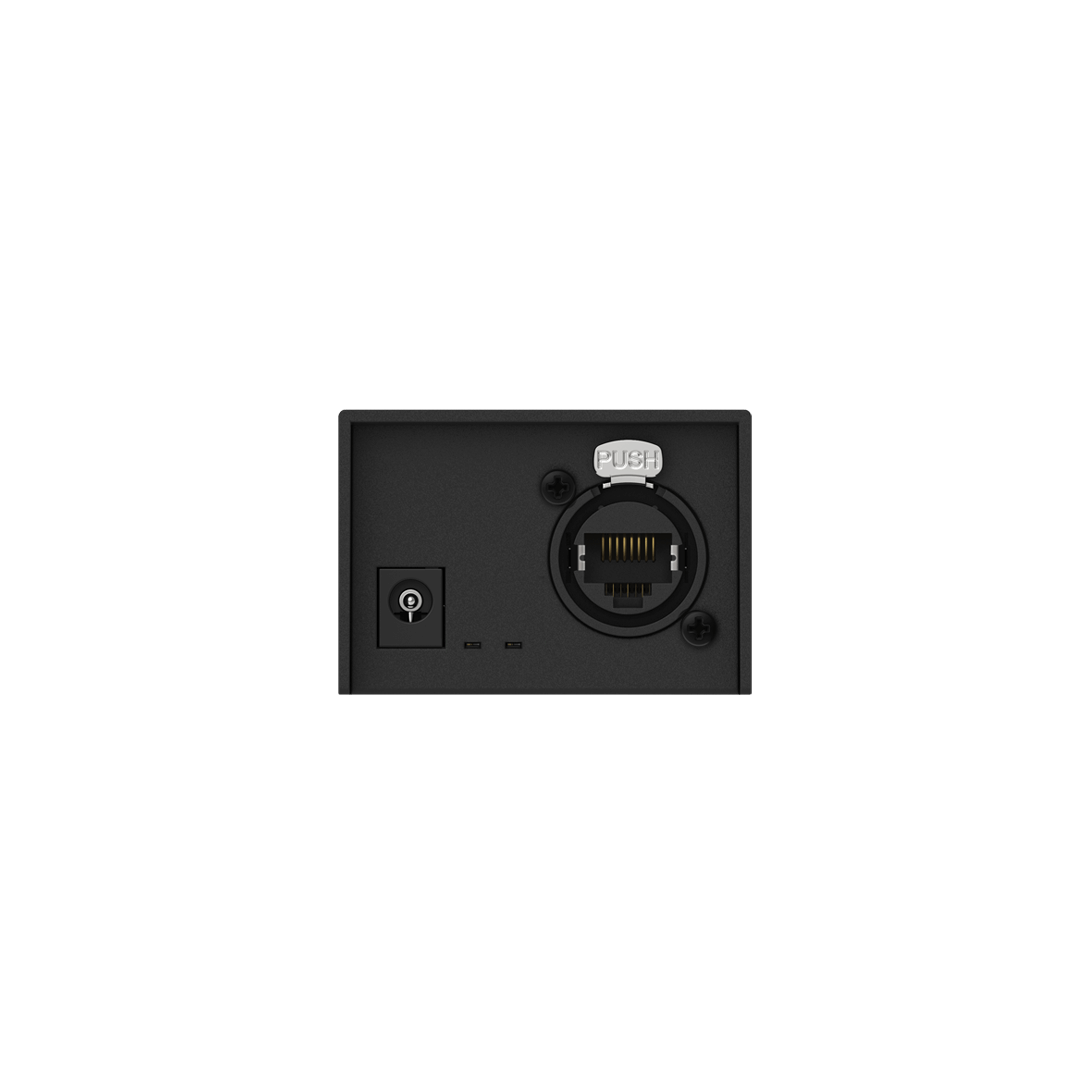

Power the ODE MK3 using IEEE 802.3af PoE (Power over Ethernet) or DC 12-24v input.

All ENTTEC Ethernet hardware accepts ArtSync to fully synchronise Art-Net data across your installation when receiving Art-Net from the same source to protect against content tearing and ensure a professional looking output across your rig.

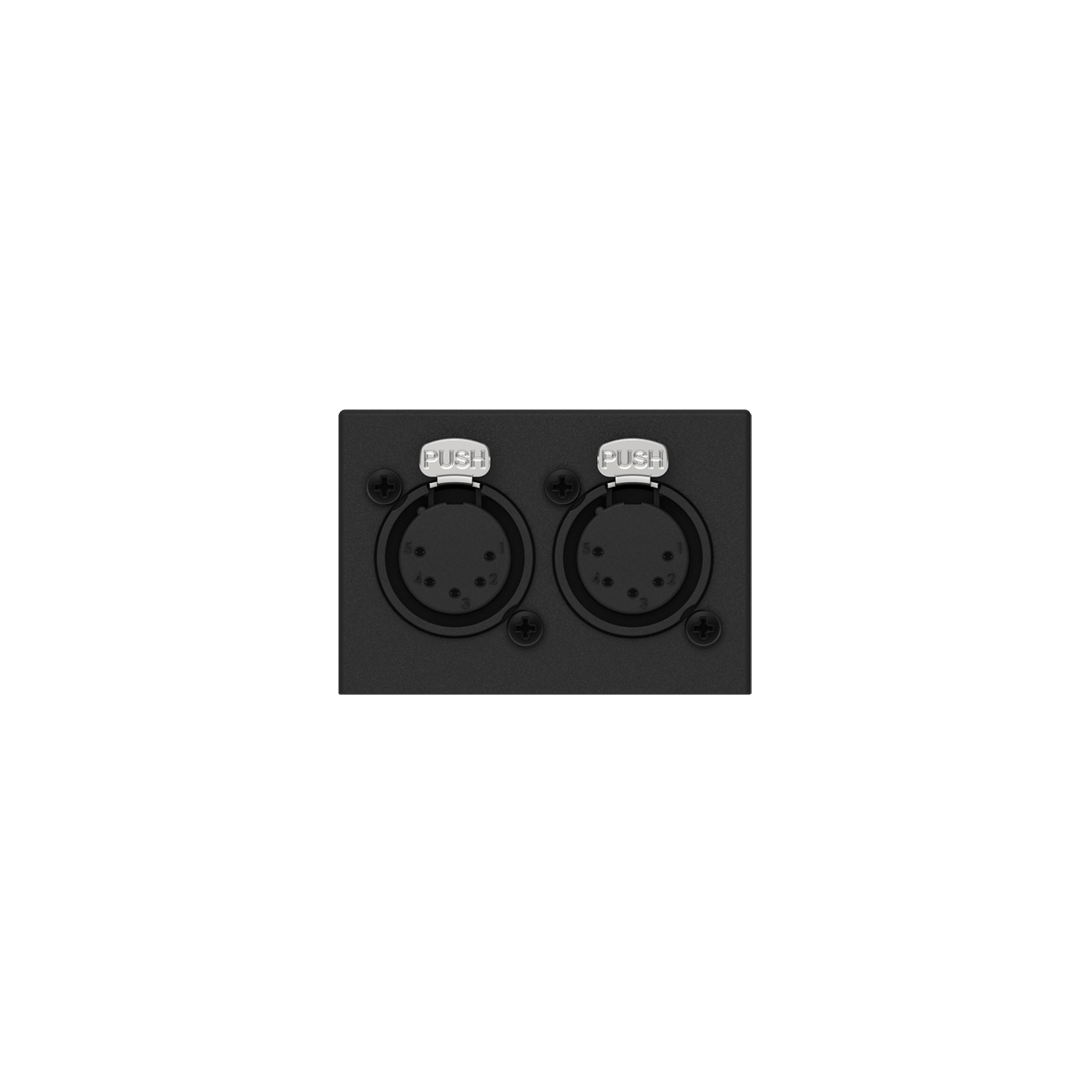

This Ethernet to DMX converter is packed with installer-friendly features including industry standard 5-pin XLR ports to simplify wiring.

Also, a ‘Current Port Buffer’ within the web interface allows live DMX values to be viewed from the localhost web interface to troubleshoot your installation. Upon receiving power, the device is ready to for action within seconds.

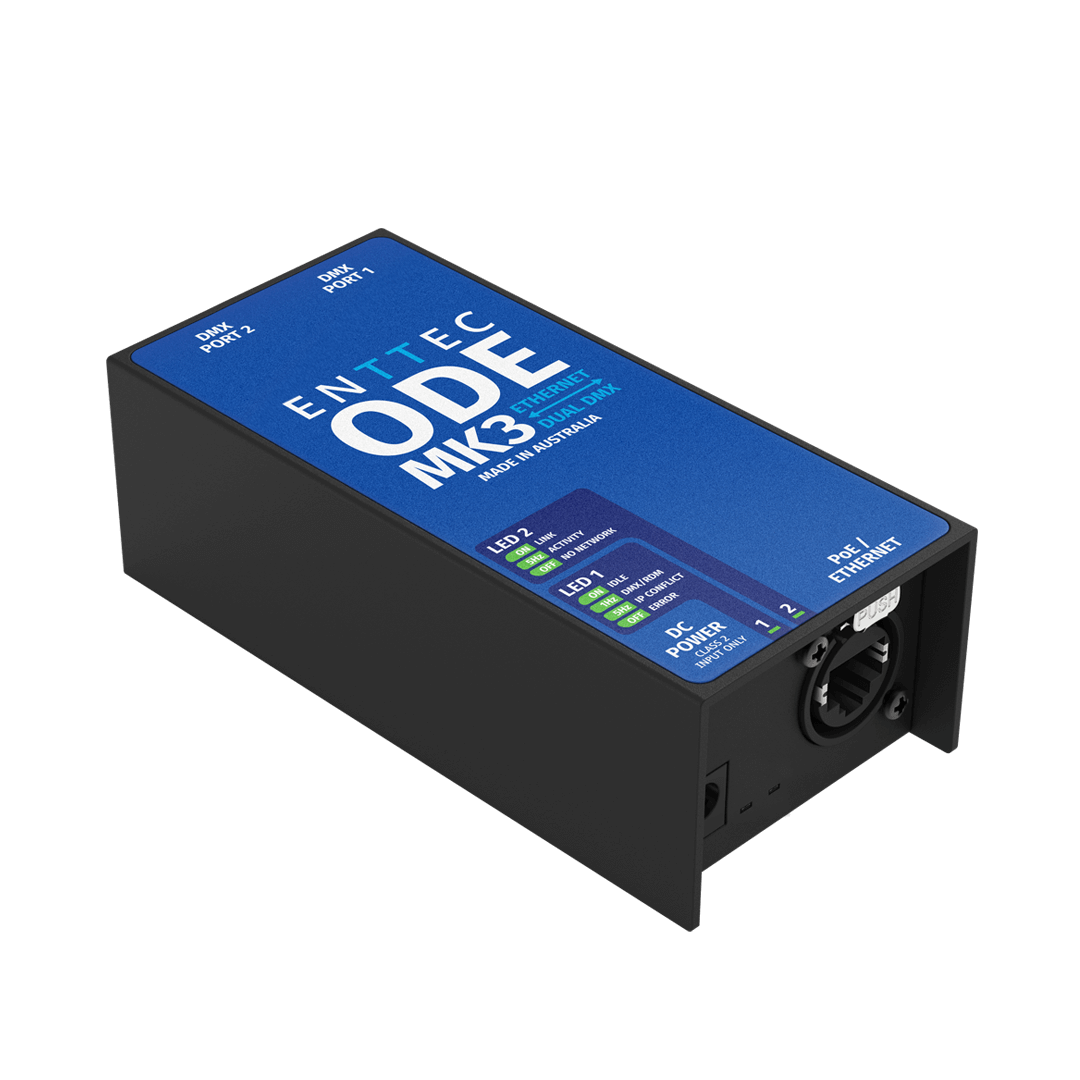

The LED indicators allows you to monitor connectivity & status in a quick glance.

The ODE Mk3’s primary functionality is to convert between Ethernet-DMX protocols and USITT DMX512-A (DMX). The following conversions are available with the ODE Mk3: Art-Net – DMX (with/without RDM. ANSI E1.20 RDM supported) DMX – Art-Net (Broadcast or Unicast) sACN – DMX DMX – sACN (Multicast or Unicast) ESP – DMX DMX – ESP (Broadcast or Unicast)

The ODE MK3’s LED status system lets you know exactly what your device is doing

The ENTTEC ODE MK3’s status system is designed to offer real-time feedback on its operational state through LED indicators. These indicators provide essential information about the device’s connectivity, activity, and DMX status, helping users troubleshoot and monitor the system.

Specifications

	Two bi-directional female 5-pin DMX ports with optional RDM (E1.20) support.
	IEEE 802.3af PoE (Power over Ethernet) or DC 12-24V input.
	Support for Art-Net 4, sACN and ESP to DMX conversion.
	Support for DMX -> Art-Net (Broadcast or Unicast) / DMX -> sACN (Multicast or Unicast).
	Intuitive device configuration and updates through the inbuilt localhost web interface.
	0/100 Mbps network speed.
	‘Current Port Buffer’ allows live DMX values to be viewed in the web UI.
	Configurable DMX output refresh rate.

Resources

ODE data sheet

ODE user manual

ODE API

ODE Technical Drawings/Dimensions

ODE hi-res images

ODE firmware v1.7

ODE release notes
